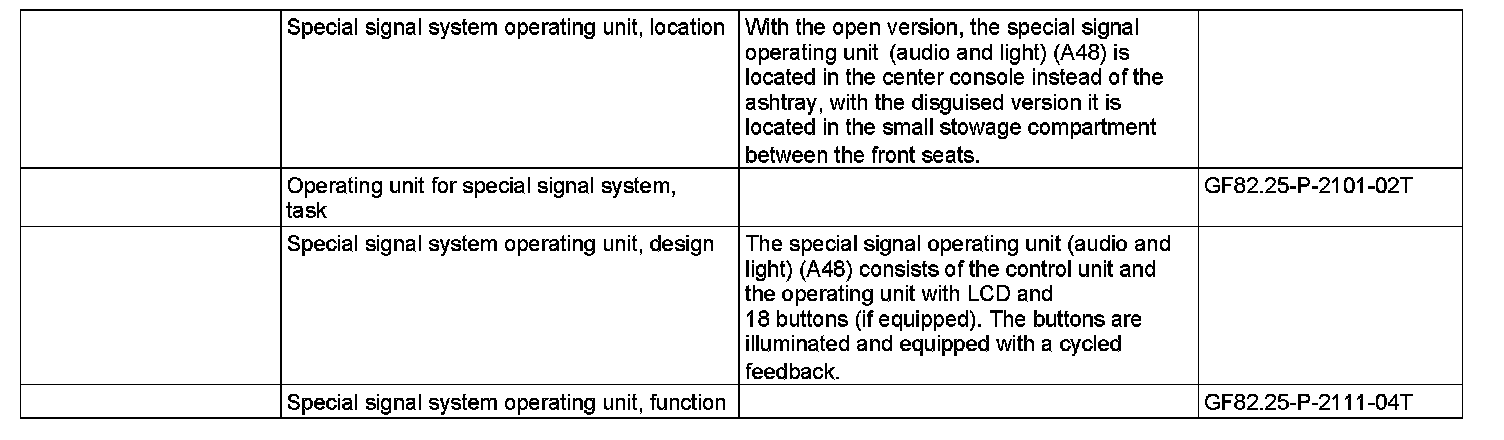

GF82.25-P-2111T Operating Unit For Special Signal System, Location/Task/Design/Function



GF82.25-P-2111T Operating Unit For Special Signal System, Location/Task/Design/Function
- with CODE (970) police emergency vehicles

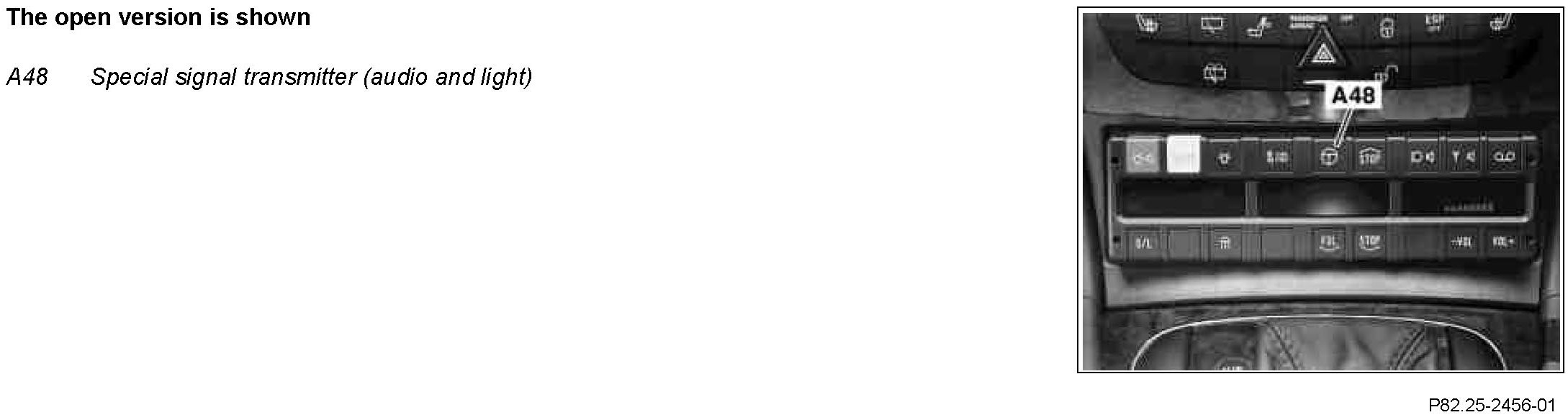

The open version is shown

Component Identification:

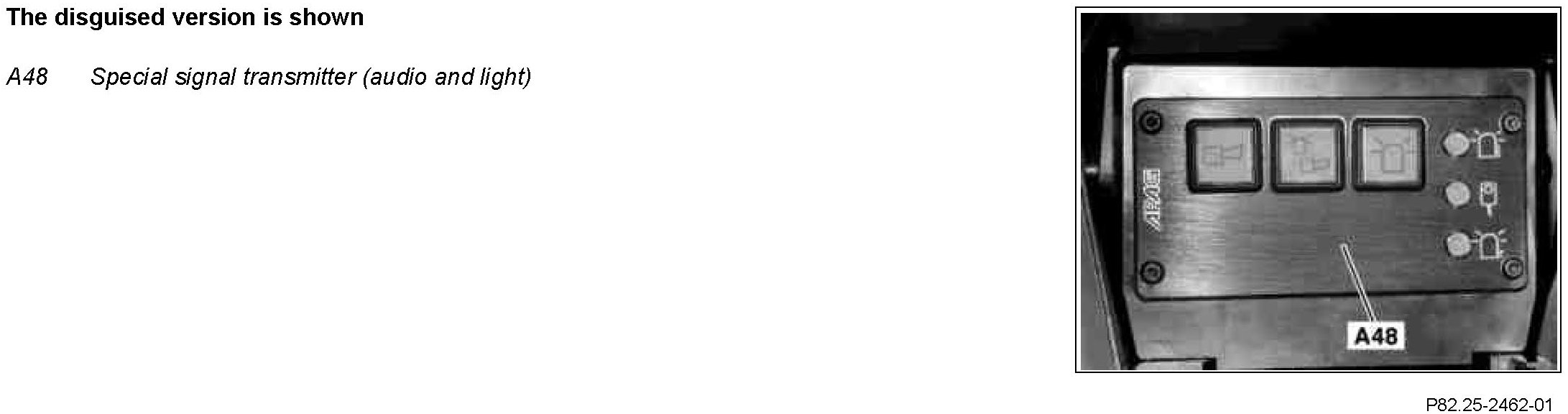

The disguised version is shown


Component Identification:
