GF82.25-P-2005T Function Activation

GF82.25-P-2005T Function Activation
- with CODE (970) police emergency vehicles

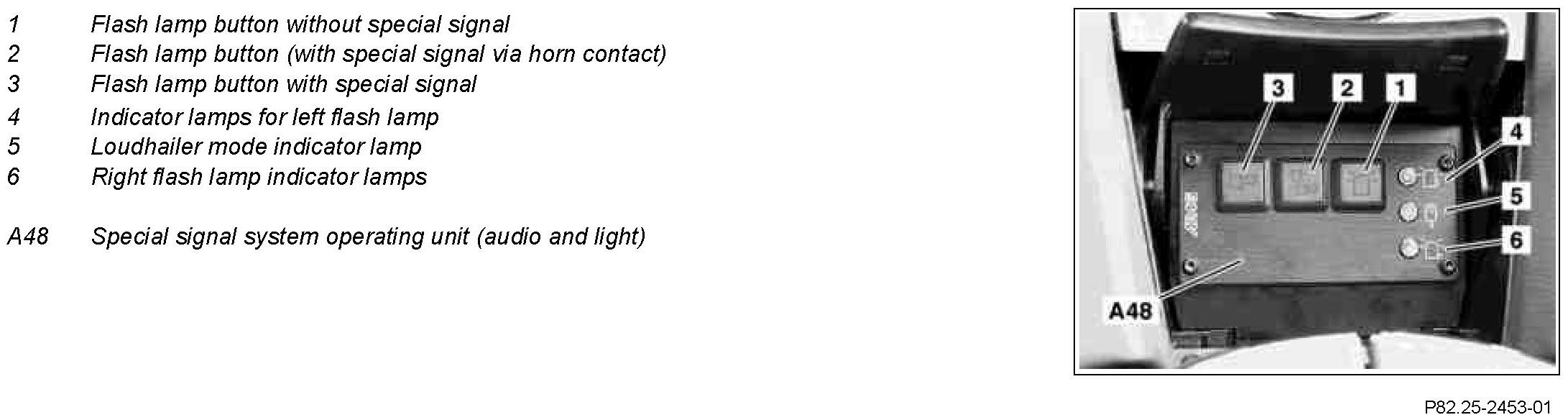

The Operating Unit With Disguised Version Is Shown

Component Identification:

Flash Lamp Button Without Special Signal (1) On
The optical signal (priority vehicle warning light) is on. The function of the left and right flash lamp is indicated by the indicator lamp for the left (4) and right (6) flash lamps.


Flash Lamp Button (2)
The optical signal (priority vehicle warning light) is on. The function of the right and left flash lamp is indicated by the indicator lamp for the left (4) and right (6) flash lamps. If the fanfare horns button (S110s5, S111s5) is actuated, a special signal cycle is emitted via the outside speakers for the special signal. The function can be repeated as often as desired.

Flash Lamp Button With Special Signal (3)
The optical and acoustic signal is constantly running. The function of the right and left flash lamp is indicated by the indicator lamps for the left (4) and right (6) flash lamps.

The function of the buttons are linked to each other. When one button is actuated, the function of the button that is located to the right next to it is also switched on automatically. These buttons do not have to be pressed additionally.
