GF82.25-P-0009-01T Display of Messages For Special Vehicles In the Instrument Cluster

GF82.25-P-0009-01T Display Of Messages For Special Vehicles In The Instrument Cluster

The special vehicle multifunction control unit (SVMCU [MSS]) (N26/9) transmits status and error conditions to the instrument cluster (A1) via the CAN interior.

The various messages are displayed in the multifunction display A1p13) of the instrument cluster (A1).

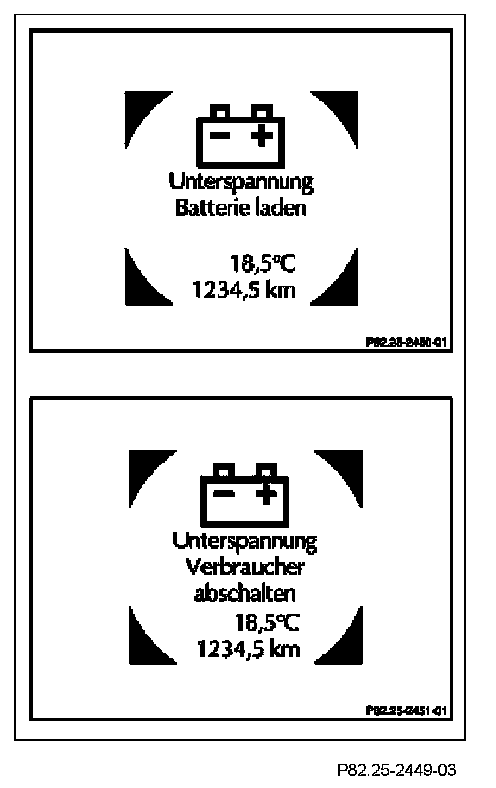

Undervoltage message of the special vehicle multifunction control unit (MSS) (N26/9)
^ "UNDERVOLTAGE, LOAD BATTERY" or
^ "UNDERVOLTAGE, SWITCH OFF CONSUMER"

The message is indicated, if the special vehicle multifunction control unit (SVMCU [MSS]) (N26/9) detects undervoltage and the engine is not running. A chime sounds together with the activation.
