AN82.85-P-0001-01TA Retrofitting Navigation Processor In Trunk

AN82.85-P-0001-01TA Retrofitting Navigation Processor In Trunk

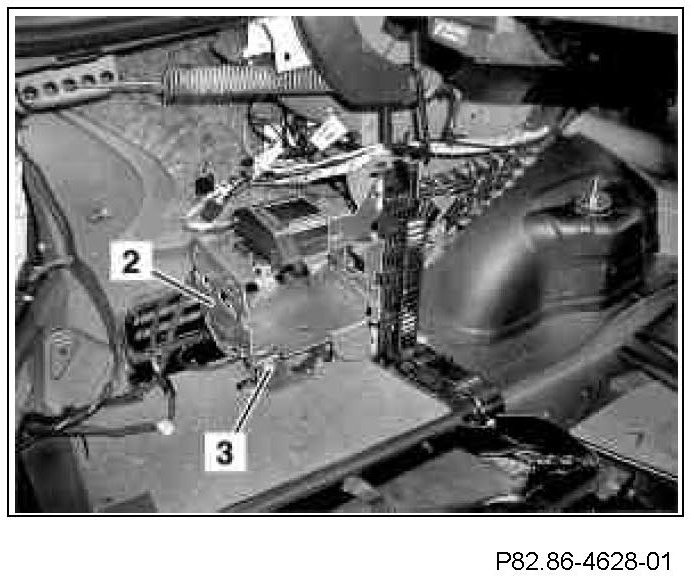

1 Undo bolt (3) on control unit bracket (2).

Bolt (3) still required.

Shown on model 211.0

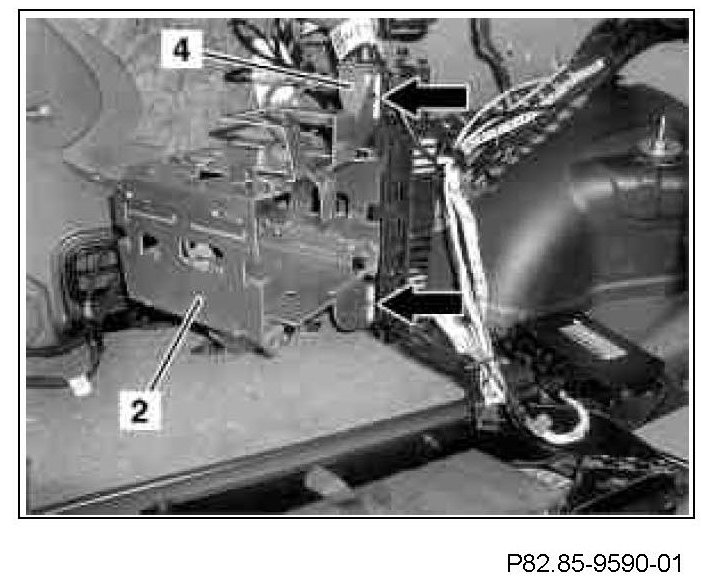

2 Swivel control unit bracket (2) in guides (see arrows) of bracket (4) to the front.

Shown on model 211.0

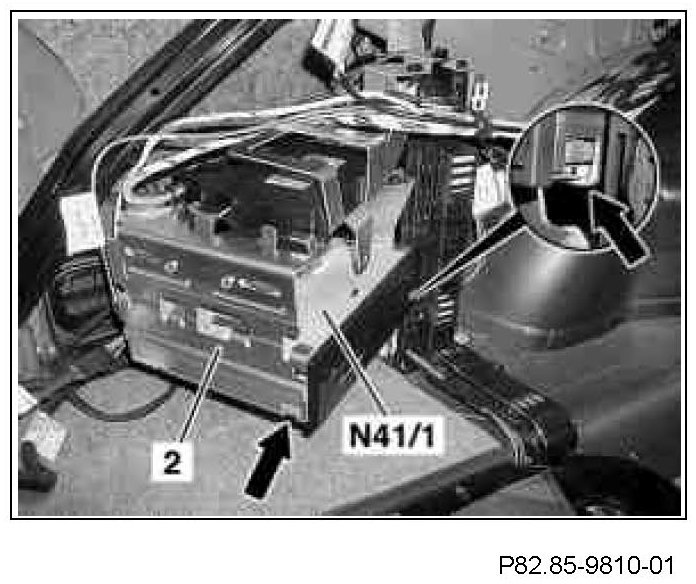

3 Push navigation processor (N41/1) into control unit bracket (2) until the catches can be heard to engage (see arrow and detail).

If the navigation processor (N41/1) cannot be slid into the control unit bracket (2), then the control unit bracket (2) must be replaced with the version included in the COMAND retrofit kit.

Shown on model 211.0

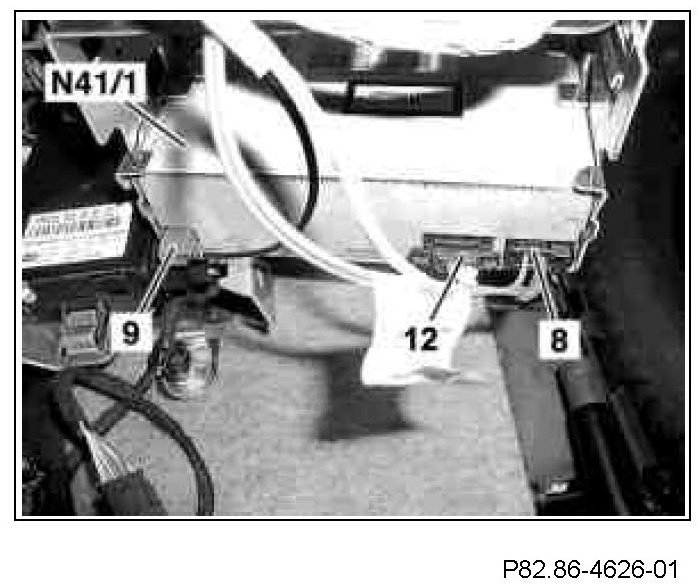

4 Connect the navigation processor coupling (12), MOST coupling (8) and GPS navigation processor coupling (9) to the navigation processor (N41/1).

The connectors are coded to prevent misconnection.

Shown on model 211.0

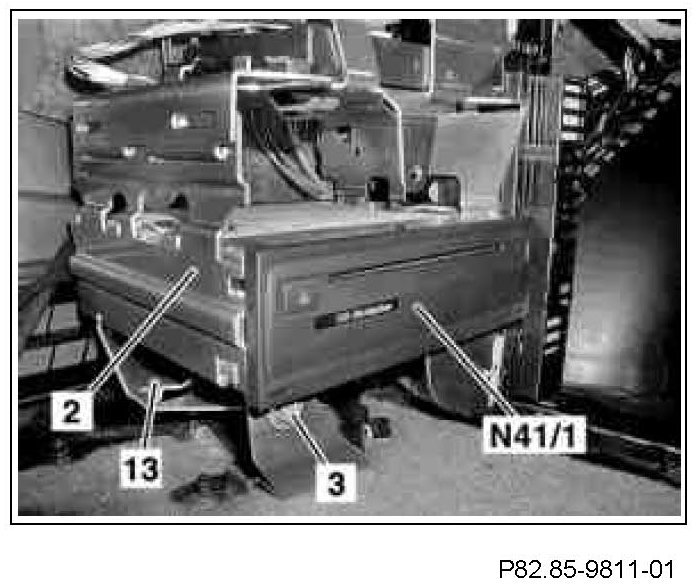

5 Push control unit bracket (2) with navigation processor (N41/1) into guide for bracket (13) as far as the stop.
6 Fasten control unit bracket (2) onto bracket (13) using bolt (3).

Shown on model 211.0
