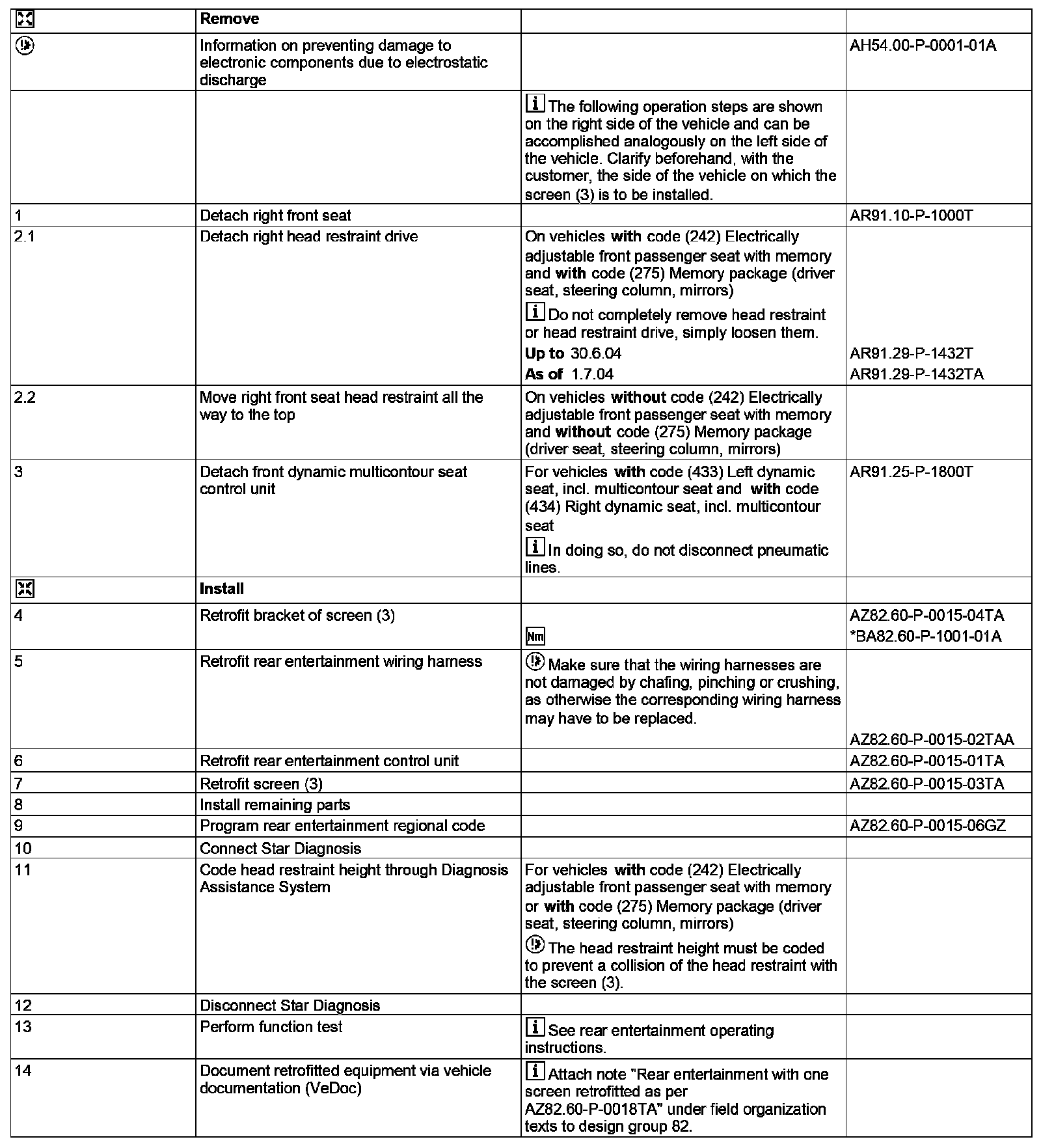

AZ82.60-P-0018TA Retrofit Rear Entertainment With One Screen




AZ82.60-P-0018TA Retrofit Rear Entertainment With One Screen
- MODEL 211.0## /2## 1#
- except CODE (861) TV rear screen






3 Screen
