AZ82.60-P-0015-04TA Retrofit Rear Entertainment Screen Bracket

AZ82.60-P-0015-04TA Retrofit Rear Entertainment Screen Bracket
- MODEL 211.0## /2## 1#






The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle.

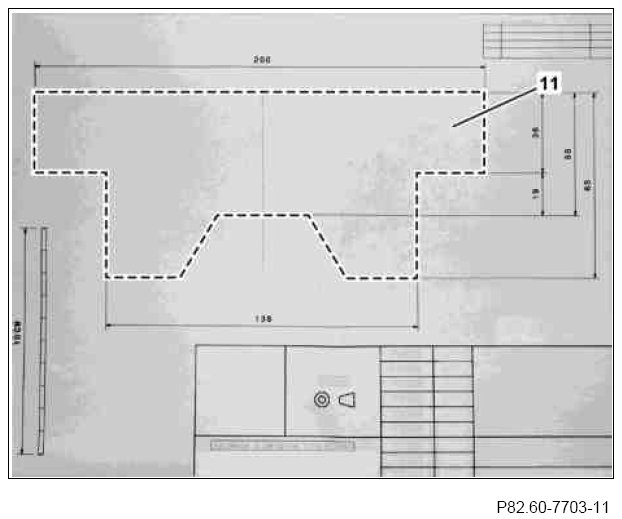

1 Cut out cutting template (11) along broken line.
The cutting template (11) is included in the installation kit.

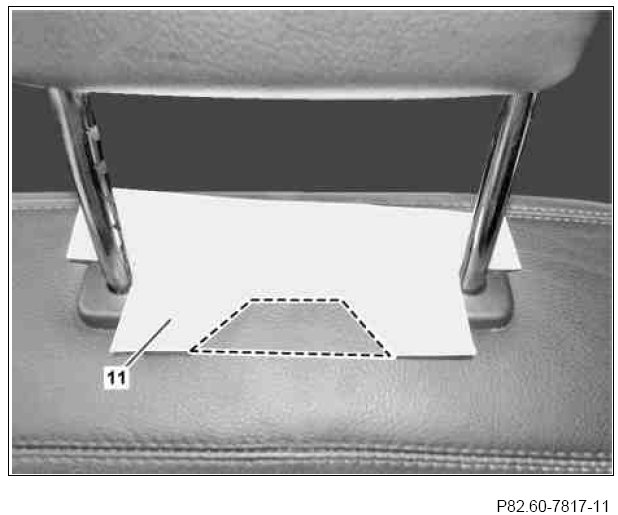

2 Apply cutting template (11) to head restraint and mark separating point (broken line).
3 Remove cutting template (11).

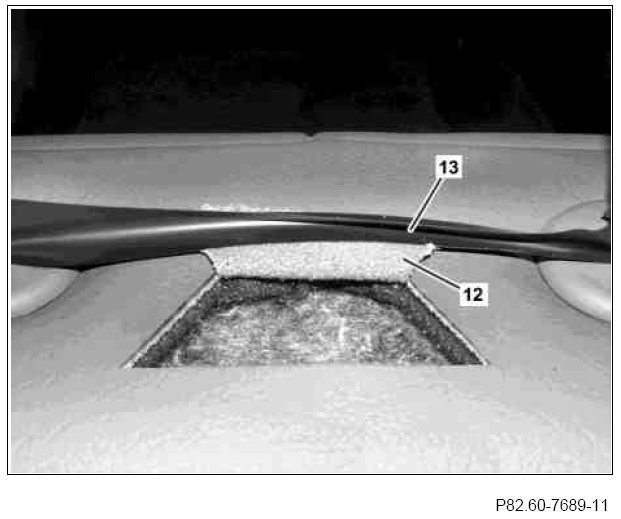

4 Cut seat cover using a knife and fix shackle (12) in place using adhesive tape (13).
Be very careful while cutting, otherwise the seat cover may be damaged.

5 Work out opening in seat cover and remove remaining foam.
Be very careful while cutting, otherwise the seat cover may be damaged.

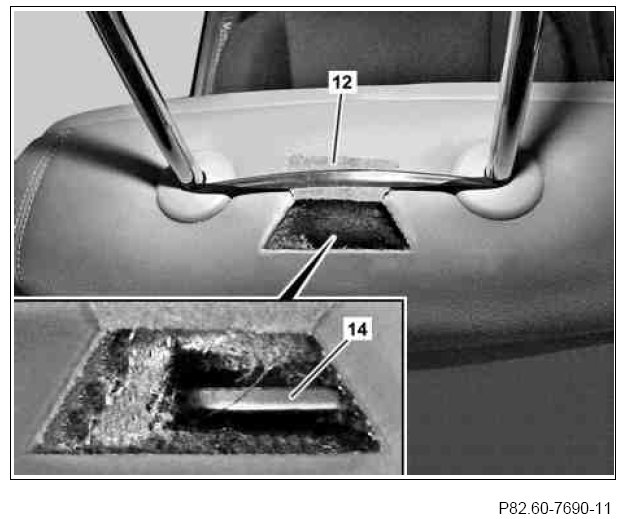

6 Work out seat core until cross strut (14) of seat is accessible.
Be very careful while cutting, otherwise the seat cover may be damaged.

7 Fold shackle (12) into opening.






8 Insert silver bracket (15) into opening.
9 Insert black bracket (16) into opening.
10 Screw bracket (16) to bracket (15) using screw/bolt (17).

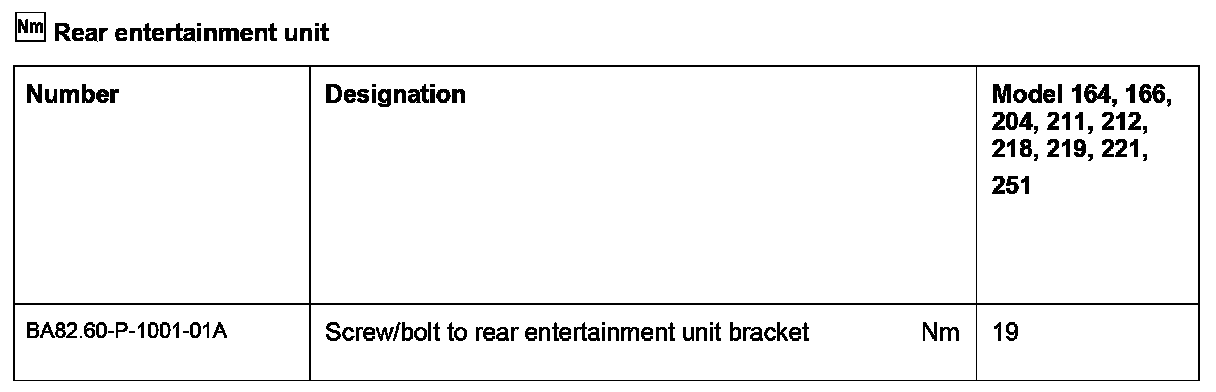

Bracket (16) and bracket (15) are interlocked with the cross strut exposed in operation step 6 of the seat by means of the threaded connection. Observe tightening torque.

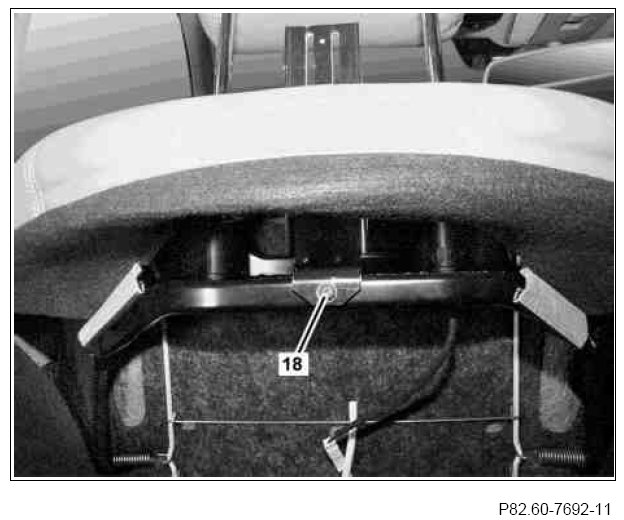

11 Tighten bracket with screw/bolt (18) at crossmember of seat.
Use suitable washer and nut from delivery contents. Detach seat cover, if necessary.
