AZ82.60-P-0015-03T Retrofit Rear Entertainment Screen

AZ82.60-P-0015-03T Retrofit Rear Entertainment Screen
- except CODE (861) TV rear screen

The following work procedure is shown on the left side of the vehicle. Installation on the right side of the vehicle is performed correspondingly.

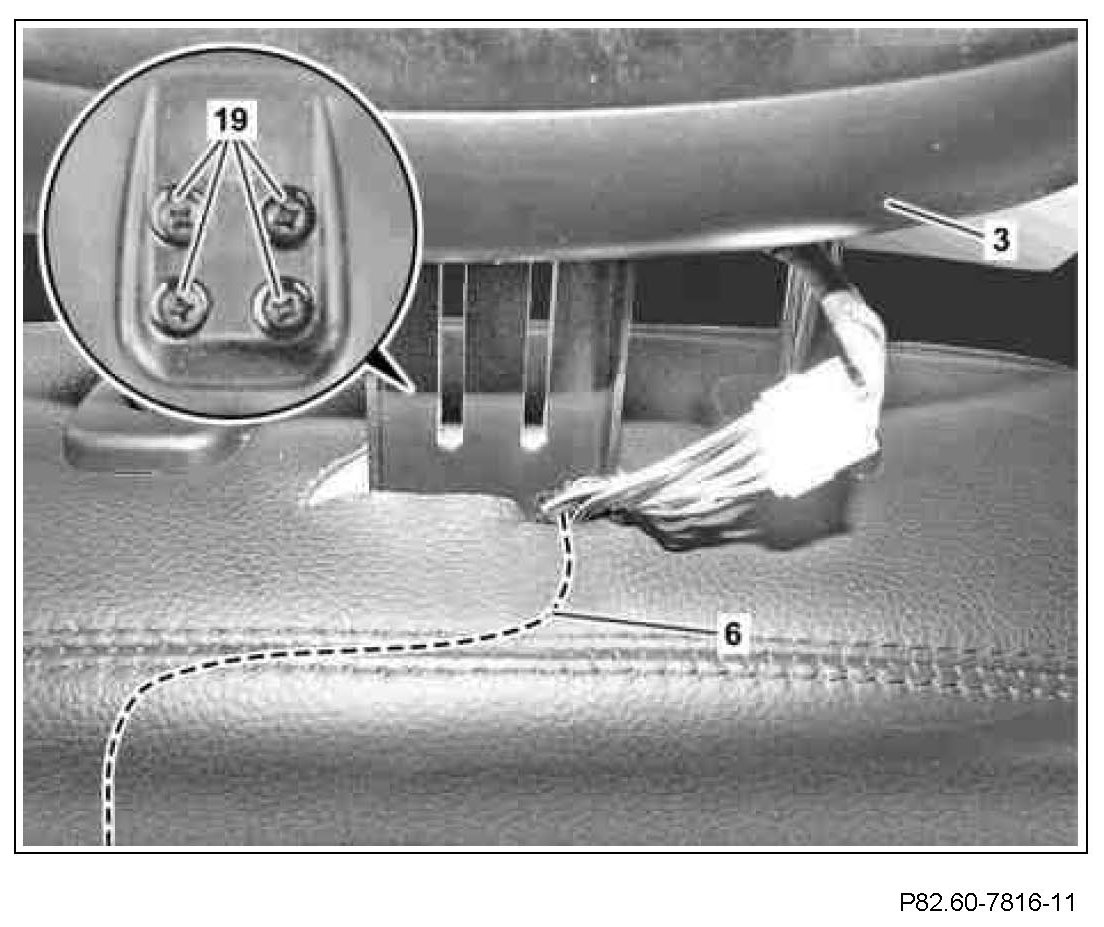

1 Slide screen (3) onto bracket.
2 Create electrical connection between screen (3) and wiring harness (6).
3 Route electrical connector in opening of backrest.
4 Slide screen (3) onto bracket until lower edge of screen (3) makes contact with backrest.
5 Tighten screen (3) at bracket from front using screws/bolts (19) contained in installation kit.
