Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Television / Monitor >> Service and Repair >> AZ82.60-P-0007T Retrofit Digital TV Tuner

AZ82.60-P-0007T Retrofit Digital TV Tuner



AZ82.60-P-0007T Retrofit Digital TV Tuner
- with CODE (860) TV tuner

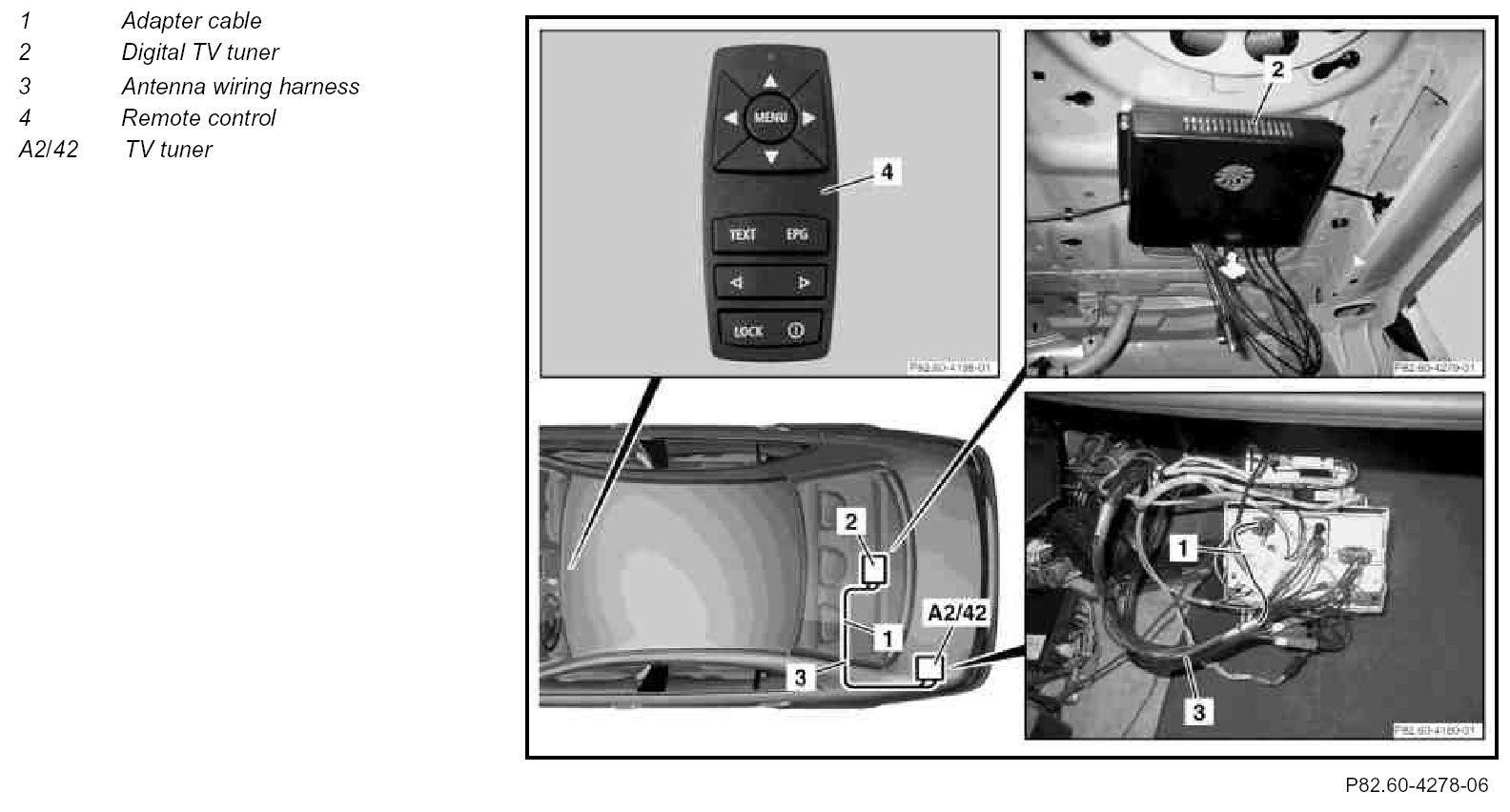

Component Identification:

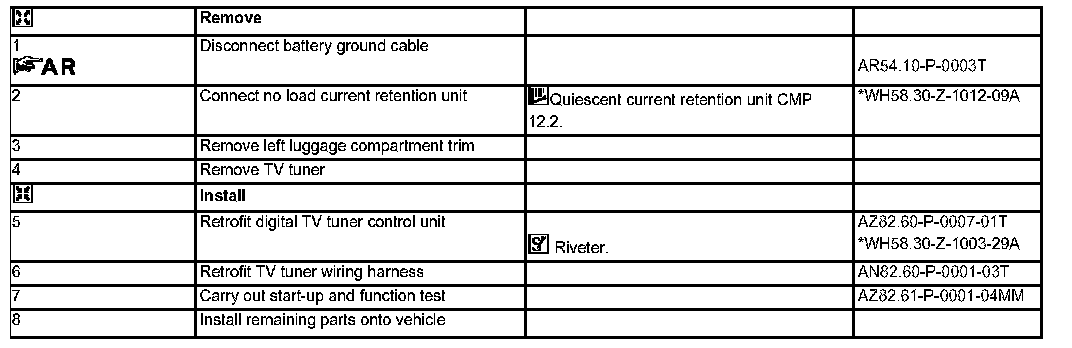

Steps 1 - 8:

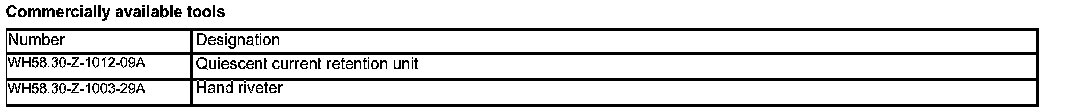

Commercially Available Tools:

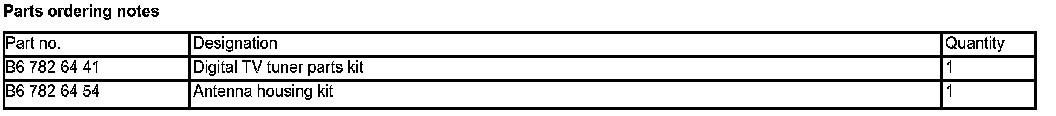

Parts Ordering Notes:
