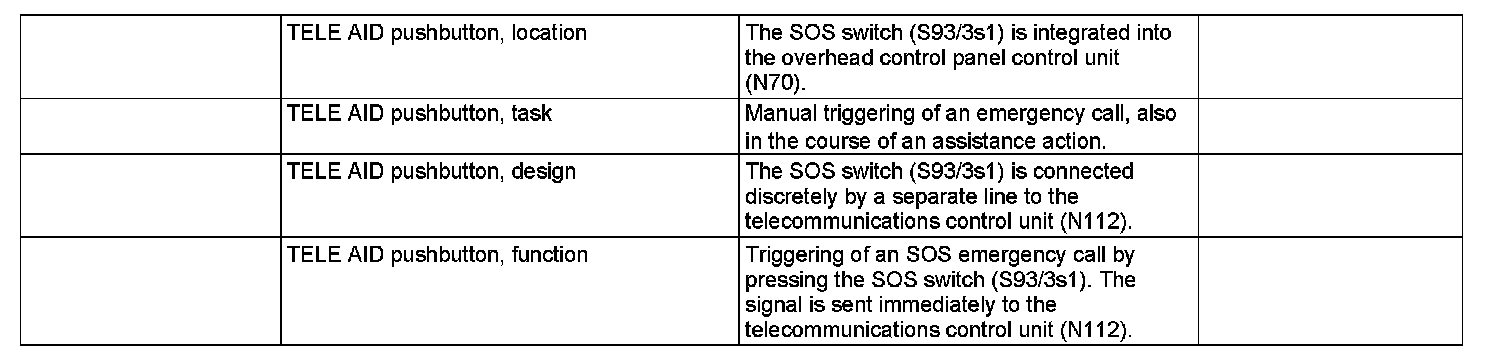

GF82.95-P-4101T TELE AID Pushbutton, Location/Task/Design/Function



GF82.95-P-4101T TELE AID Pushbutton, Location/task/design/function
- with CODE (383) With telephone "Standard" in console on right side of dome with integrated TELEAID emergency call system, hands-free system and antenna
- with CODE (930) Taxi emergency call
- with CODE (934) Taxi emergency alarm unit

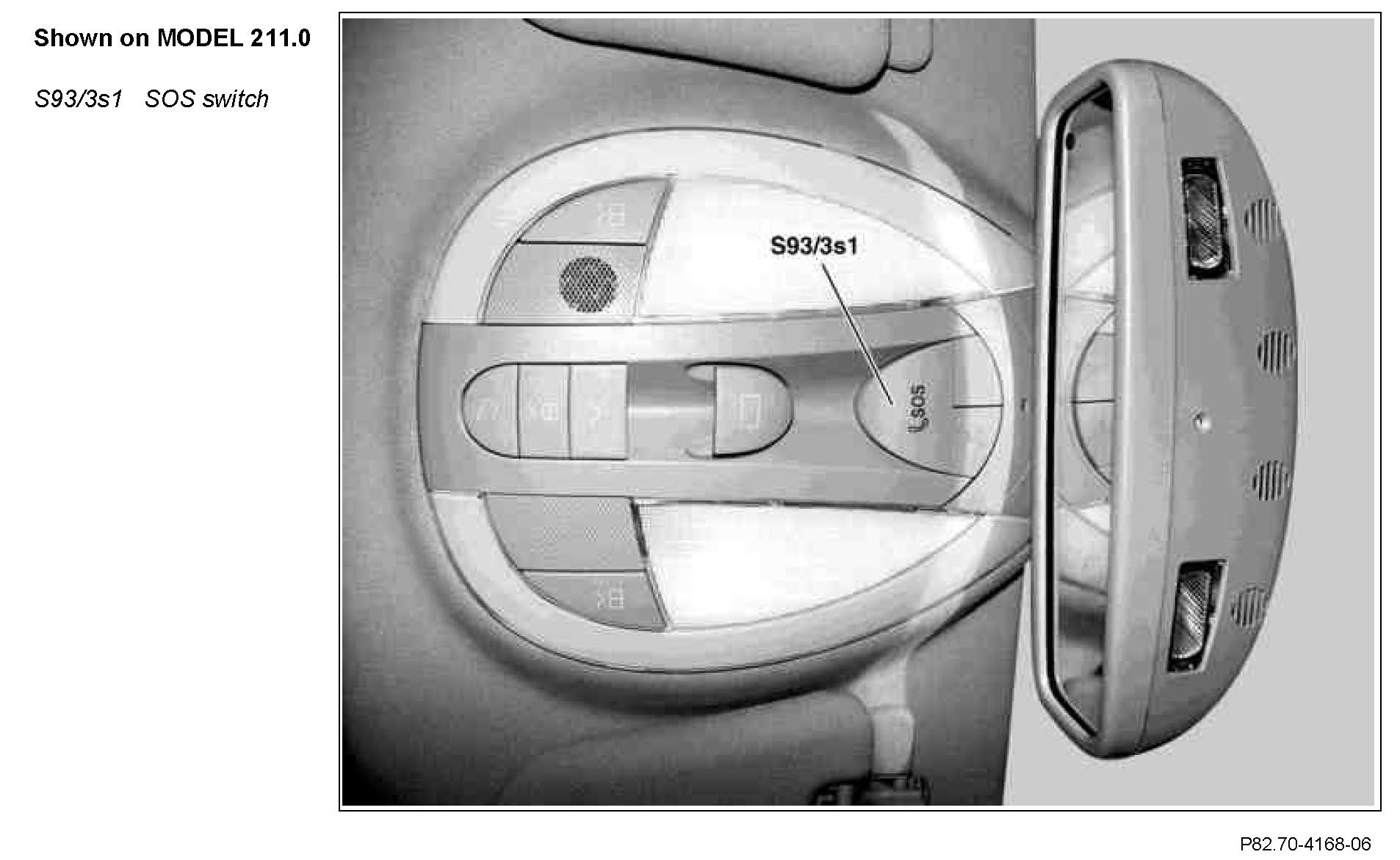

Component Identification:
