AR54.65-P-0003T Remove/Install Parktronic System (PTS) Warning Display In Instrument Panel

AR54.65-P-0003T Remove/Install Parktronic System (PTS) Warning Display In Instrument Panel
- with CODE (220a) Parktronic system (PTS)







1 Remove instrument panel top section (1)

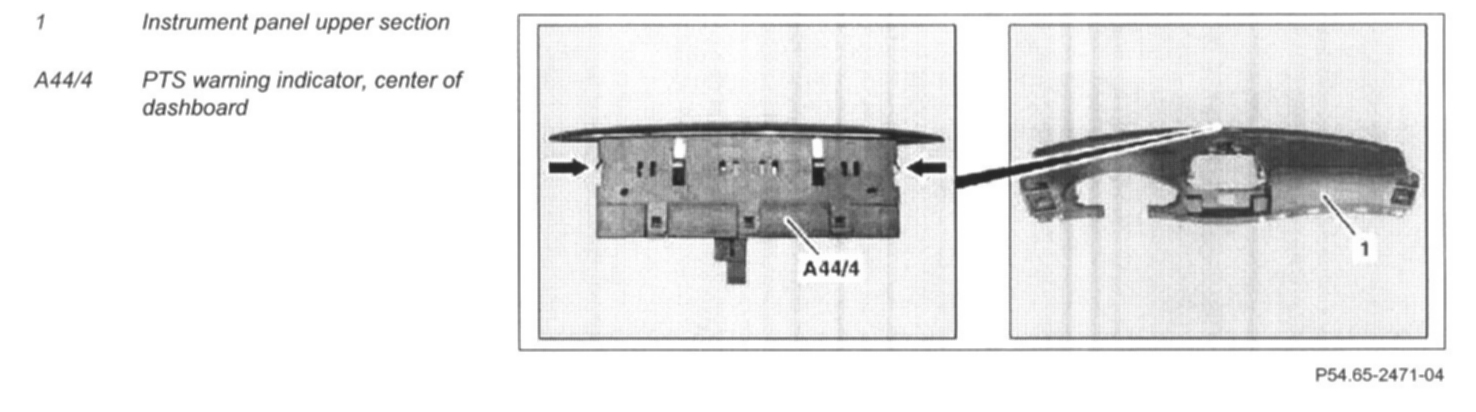

2 Push back the retaining clamps with a screwdriver (arrows) and unclip PTS warning display, center of instrument panel (A44/4) from instrument panel upper section (1)

NOTE: Installation: Pay attention to installation position.

3 Install in the reverse order
