AR54.65-P-0002T Remove/Install Parktronic System (PTS) Sensors In Rear Bumper

AR54.65-P-0002T Remove/Install Parktronic System (PTS) Sensors In Rear Bumper
- with CODE (220) Parktronic system (PTS)

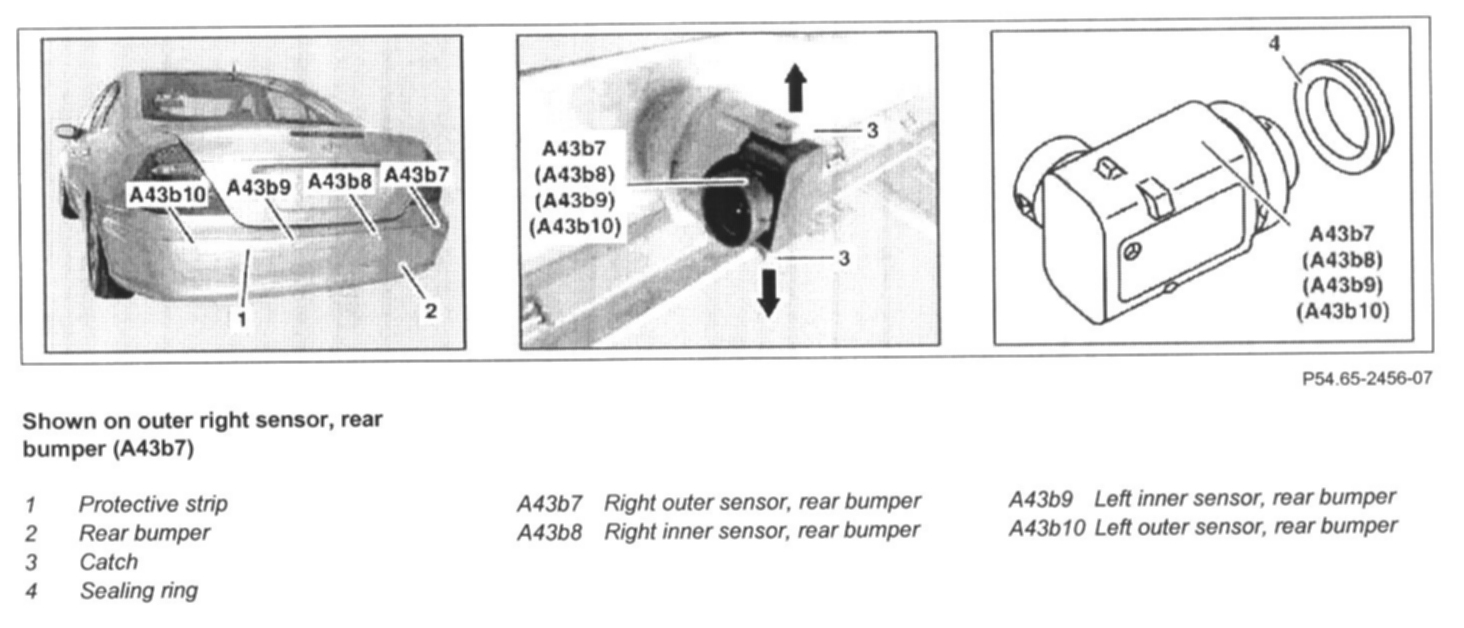

Shown On Outer Right Sensor, Rear Bumper (A43b7):

1 Disconnect ground cable of battery
2 Remove molding (1) from rear bumper (2)
3 Unlock locks (3) in direction of arrow using unlocking tool.

See "Special Tools" given below.

4 Remove outer right sensor, rear bumper (A43b7) from the protective strip (1)

NOTE: Installation: Check sealing ring (4) and replace if damaged

5 Install in the reverse order

Special Tools

Unlocking Tool, P/N # 168 589 02 31 00:
