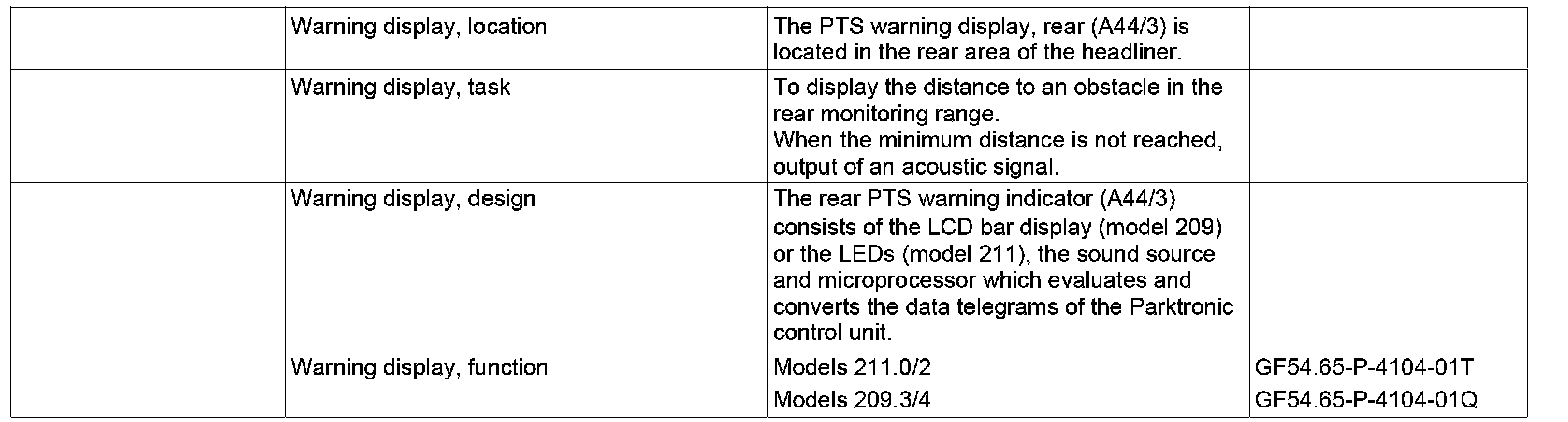

GF54.65-P-4104TA Warning Display, Location / Task / Design / Function



GF54.65-P-4104TA Warning Display, Location / Task / Design / Function
- with CODE (220a) Parktronic system (PTS)
- rear PTS warning indicator

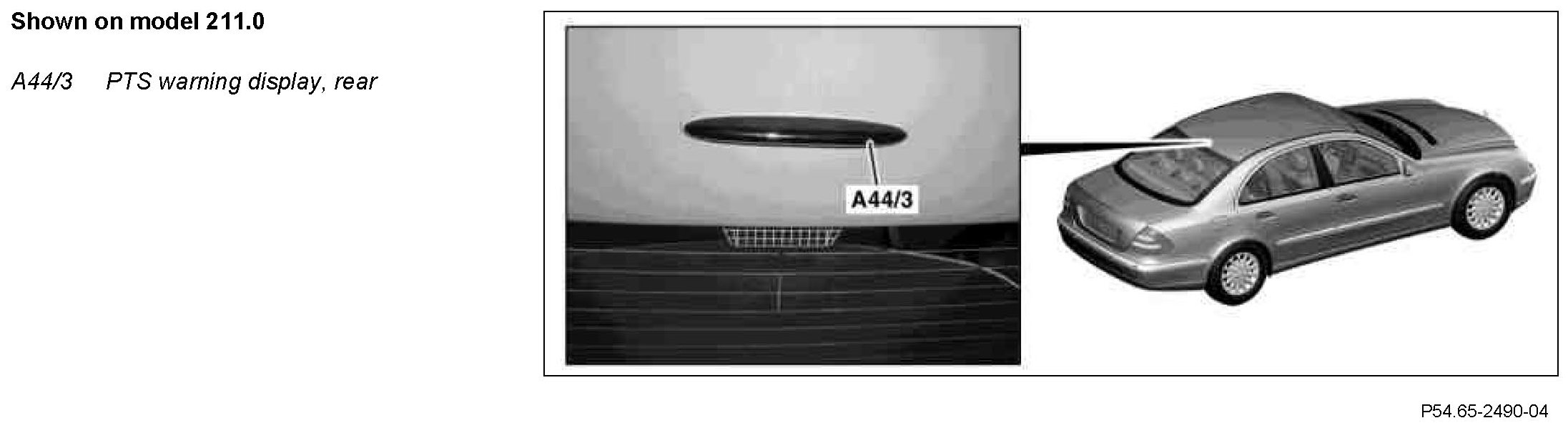

Component Identification:
