AR82.70-P-8920T Remove/Install Vehicle Interface (Portable CTEL)

AR82.70-P-8920T Remove/Install Vehicle Interface (Portable CTEL)
- with CODE (380) Preinstallation for MB phone "Handy", complete
- with CODE (382) MB telephone "Handy" in armrest







1 Disconnect ground cable of battery

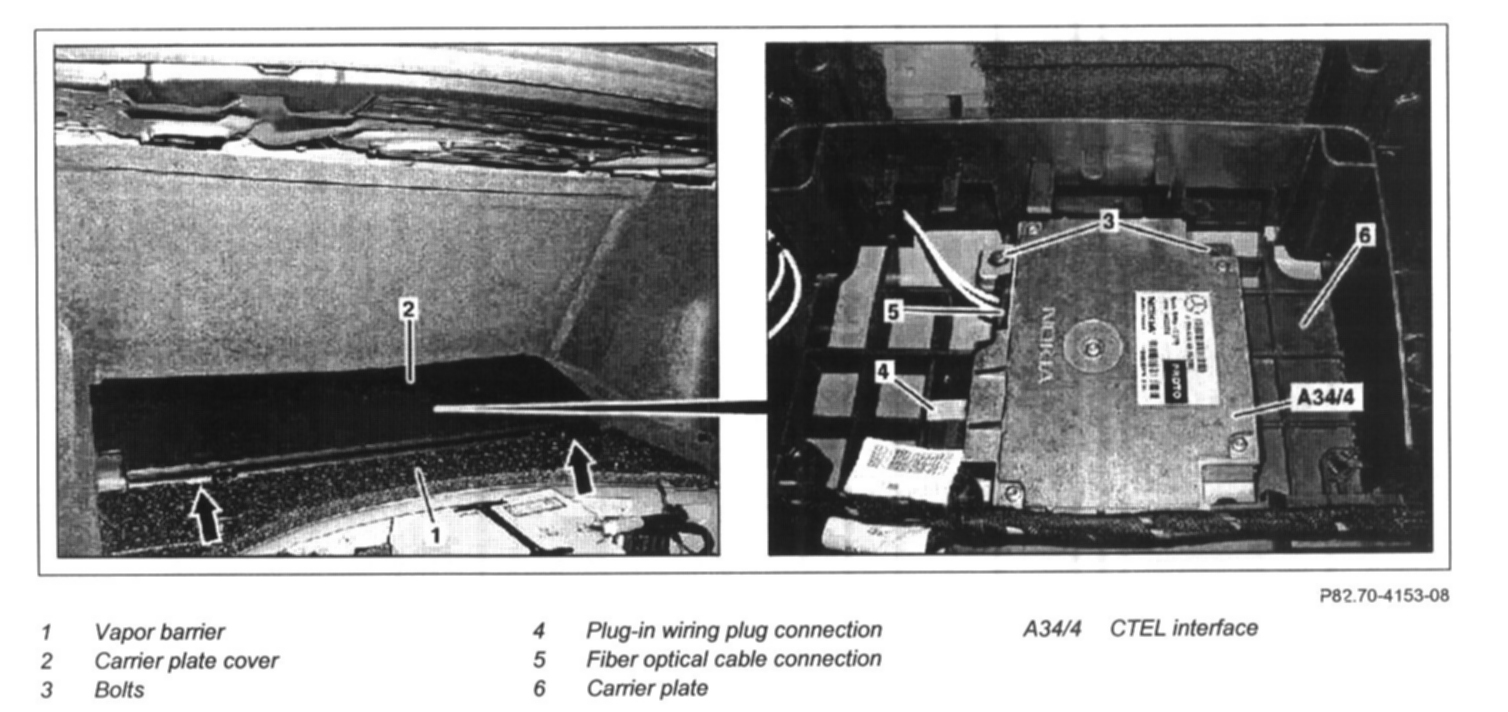

2 Remove damping material (1)
3 Unscrew screws (arrows) and remove carrier plate cover (2)
4 Unscrew screws (3)
5 Disconnect electrical connector (4)
6 Disconnect fiber optical cable connector (5)
7 Cover fiber optic cable
8 Remove telephone interface (A34/4) from carrier plate (6)
9 Install in the reverse order
