AR82.70-P-0030T Remove/Install Compensator Control Module

AR82.70-P-0030T Remove/Install Compensator Control Module
- with CODE (380) Preinstallation for MB phone "Handy", complete
- with CODE (382) MB telephone "Handy" in armrest
- with CODE (386) Preinstallation for telephone "Handy", UPCI system
- with CODE (388) Telephone "Handy" UPCI system






1 Disconnect ground cable of battery

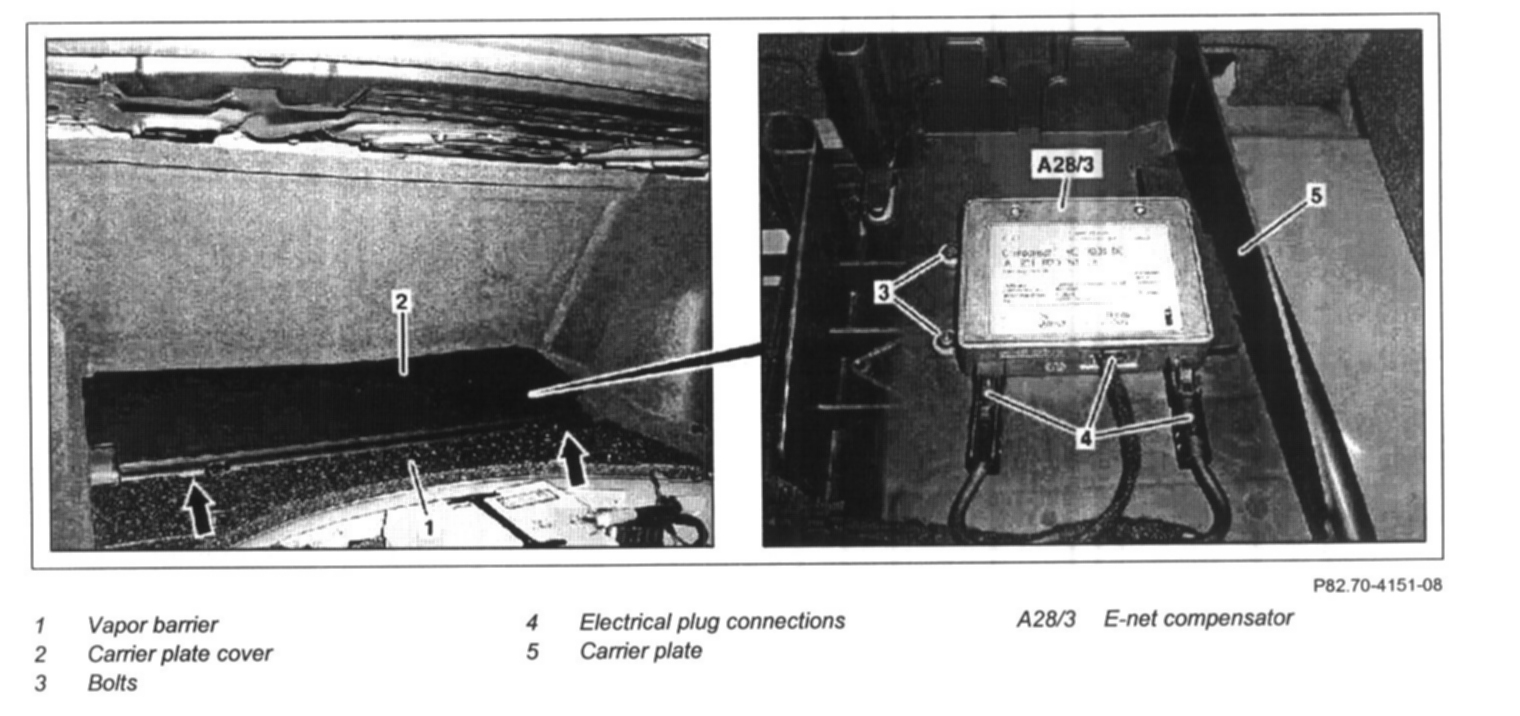

2 Remove damping material (1)
3 Unscrew screws (arrows) and remove carrier plate cover (2)
4 Unscrew screws (3)
5 Separate electrical connectors (4)
6 Remove E-net compensator (A28/3) from carrier plate (5)
7 Install in the reverse order
