Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Service and Repair >> Procedures >> AZ82.70-P-0012T Retrofit Bluetooth Interface Kit

AZ82.70-P-0012T Retrofit Bluetooth Interface Kit



AZ82.70-P-0012T Retrofit Bluetooth Interface Kit

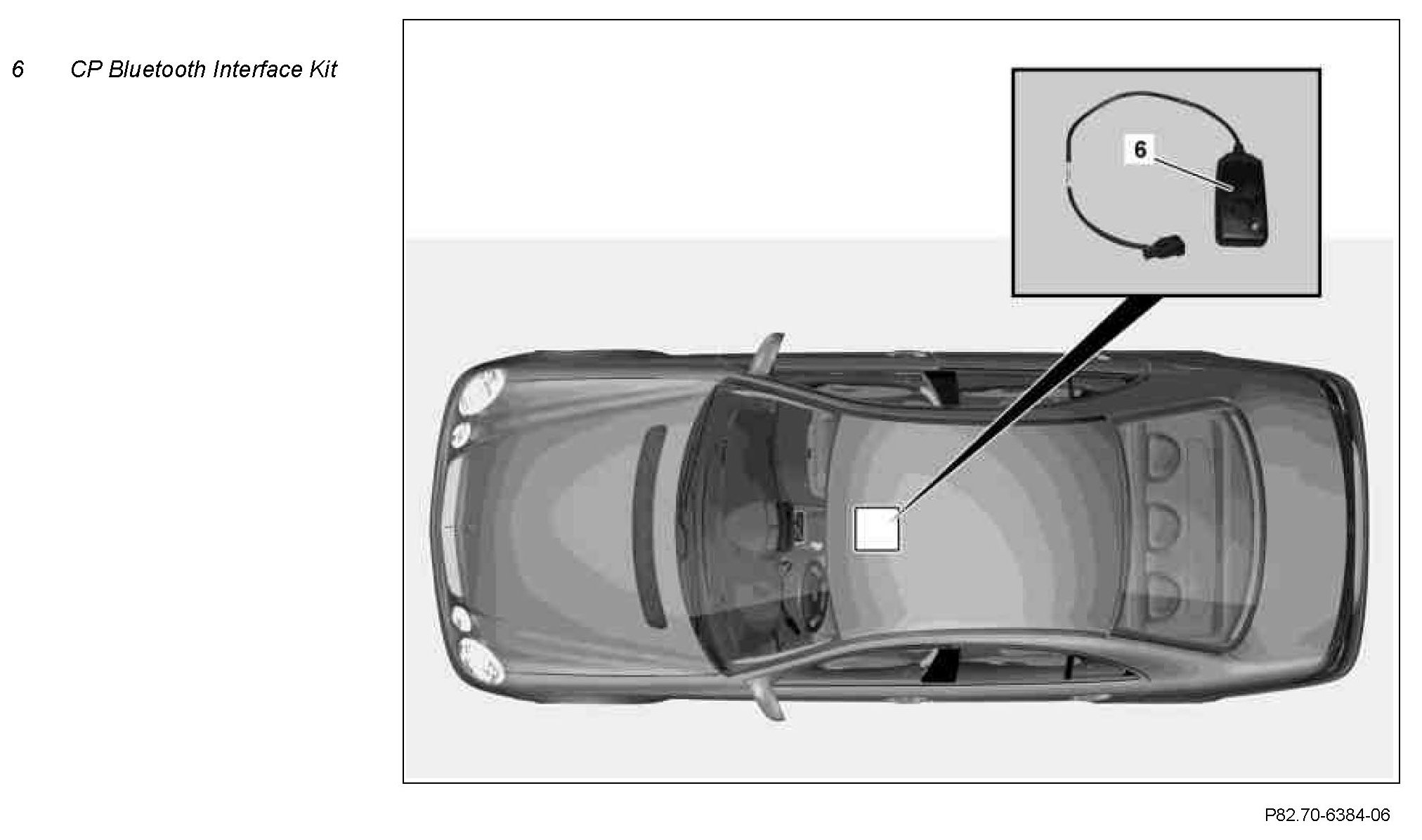

Installation position


Component Identification:

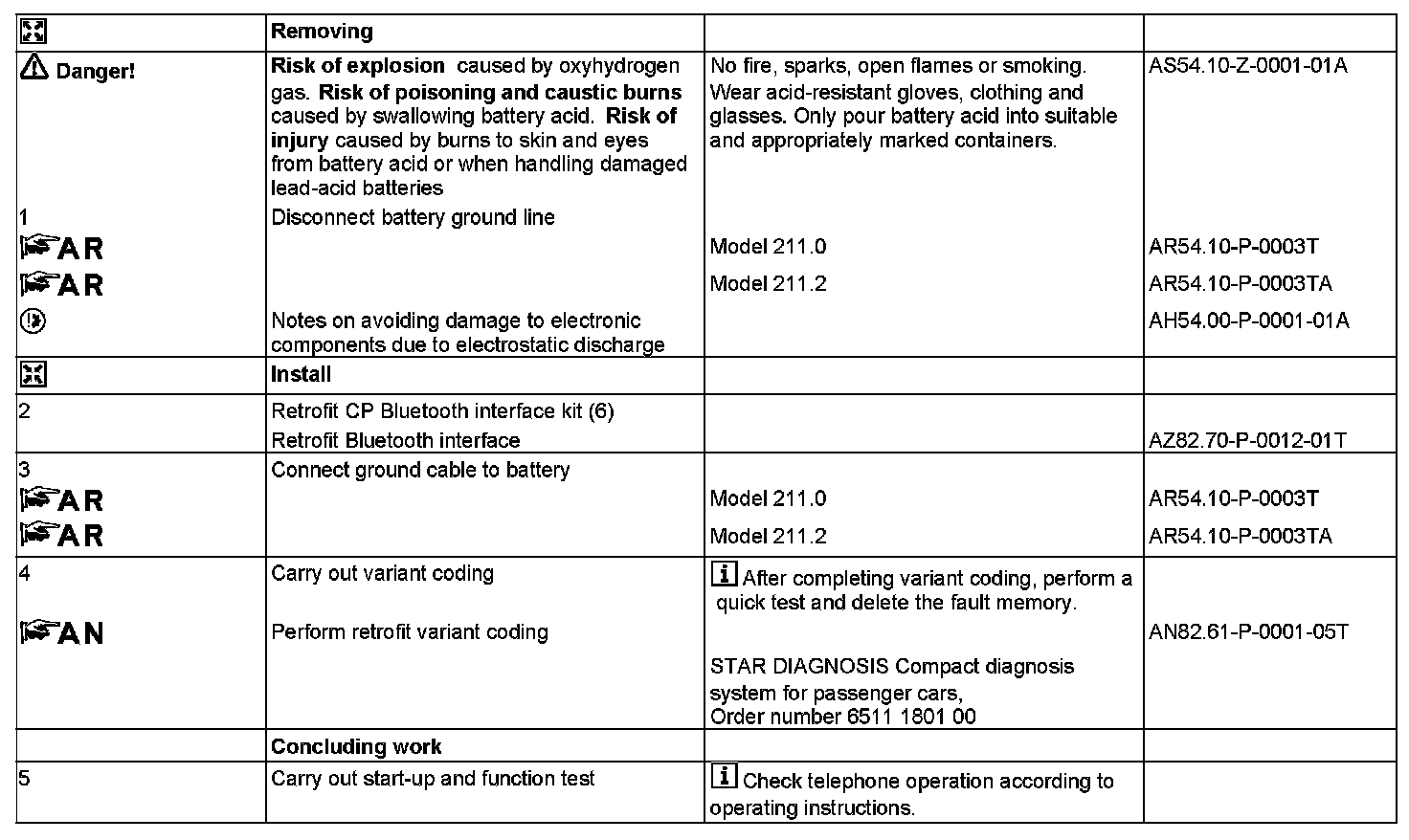

Steps 1 - 5:

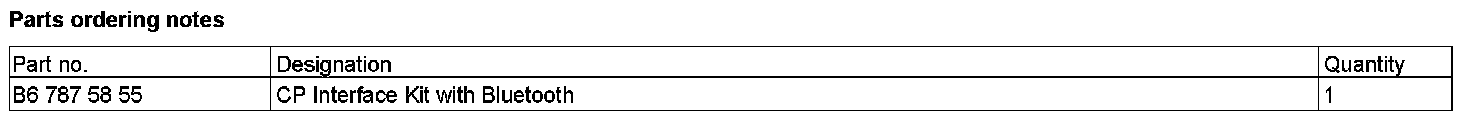

Parts Ordering Notes:
