AZ82.70-P-0005-08TB Retrofit Microphone For Hands-Free System

AZ82.70-P-0005-08TB Retrofit Microphone For Hands-Free System
- with CODE (273) Portable CTEL preinstallation (non-networked), VDA wiring

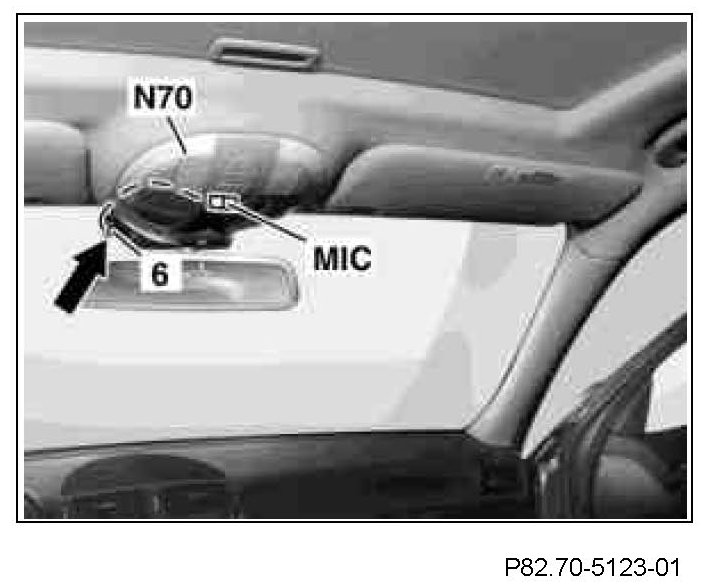

1 Expose the strapped down microphone line under the overhead control panel control unit (N70).

Do not detach connection lines from the overhead control panel.

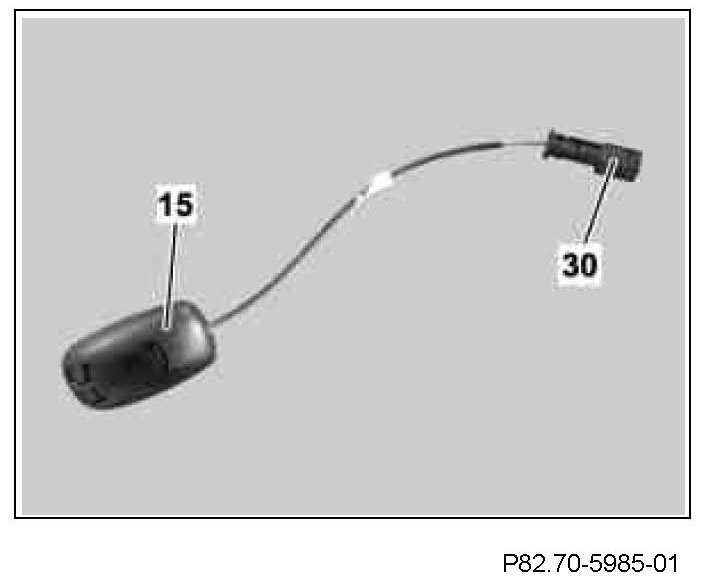

2 Connect the microphone connector (30) of the hands-free system microphone (15) with the microphone connector of the strapped down microphone line under the overhead control panel control unit (N70).

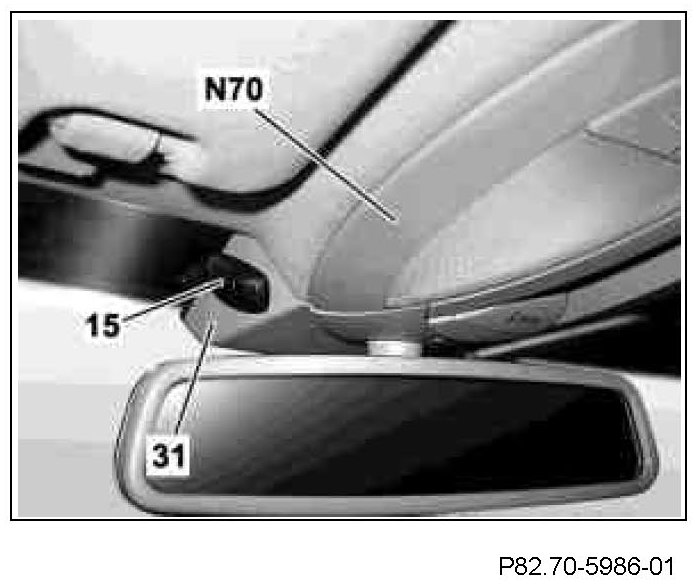

3 Glue hands-free system microphone (15) as shown to the mirror base cover (31) and align towards driver.
