AZ82.70-P-0005-08TA Retrofit Microphone For Hands-Free System

AZ82.70-P-0005-08TA Retrofit Microphone For Hands-Free System
- except CODE (273) Portable CTEL preinstallation (non-networked), VDA wiring

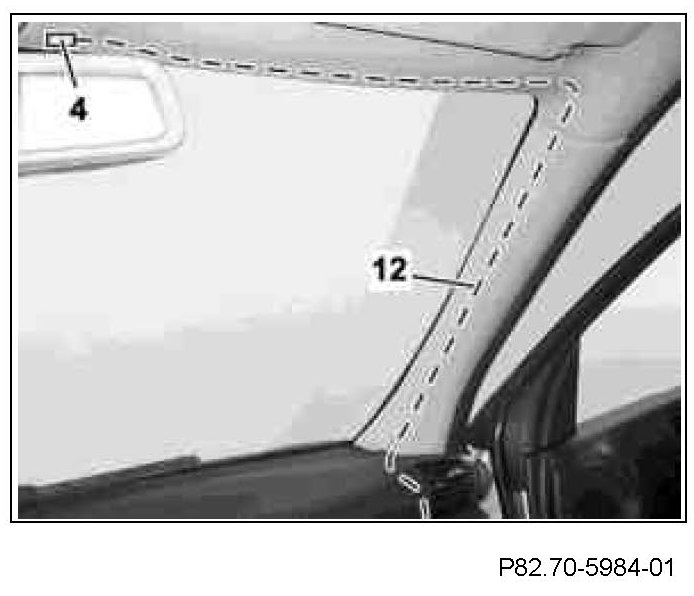

1 Route the microphone connector (4) of the microphone branch-off line (12) of the right A-pillar at the bottom along the vehicle's wiring harnesses to the right A-pillar and fasten in place to prevent chaffing and noise.
2 Route microphone connector (4) of microphone branch-off line (12) from right A-pillar under the headliner and fasten in place using self-adhesive felt to prevent chaffing and noise.

When routing to the right A-pillar make sure that the routing is placed before the front check strap of the windowbag to the windshield, so that the windowbag function is not impaired.







3 Route microphone connector (4) of microphone branch-off line (12) under the headliner to the overhead control panel control unit (N70).
4 Connect the microphone plug (30) of the hands-free system microphone (15) with the microphone connector of the microphone branch-off line.

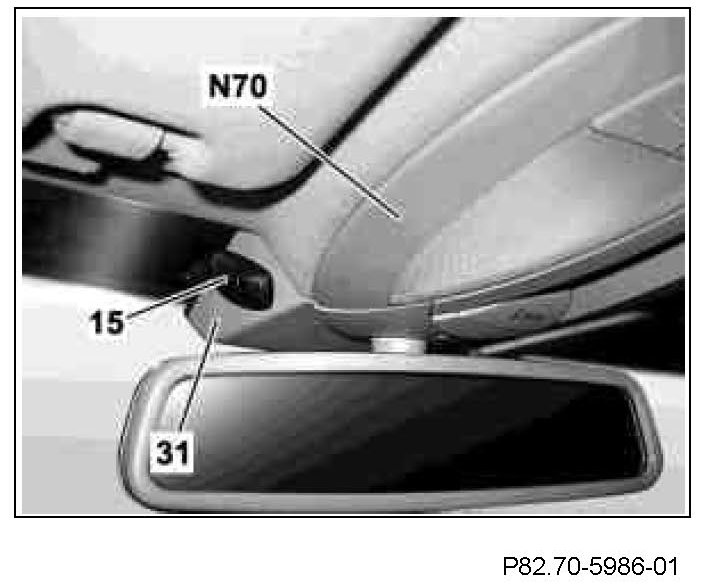

5 Glue hands-free system microphone (15) as shown to the mirror base cover (31) and align towards driver.
