AZ82.70-P-0001-02T Retrofit Hands-Free Microphone

AZ82.70-P-0001-02T Retrofit Hands-Free Microphone
- with CODE (273) Provision for D-network handy telephone
- with CODE (354) CTEL antenna (GSM 900 and 1800 MHz)

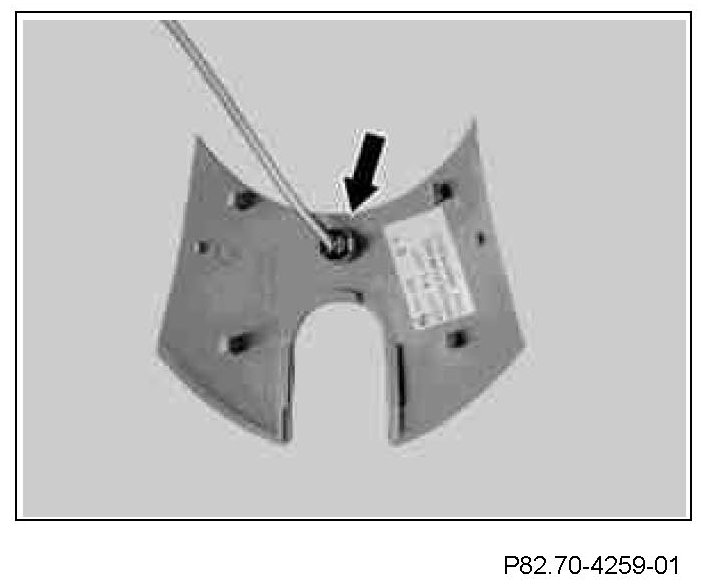

1 Unclip cover from mirror base and uncover DRO microphone (arrow).
2 Disconnect DRO microphone connector.

DRO microphone is not required.

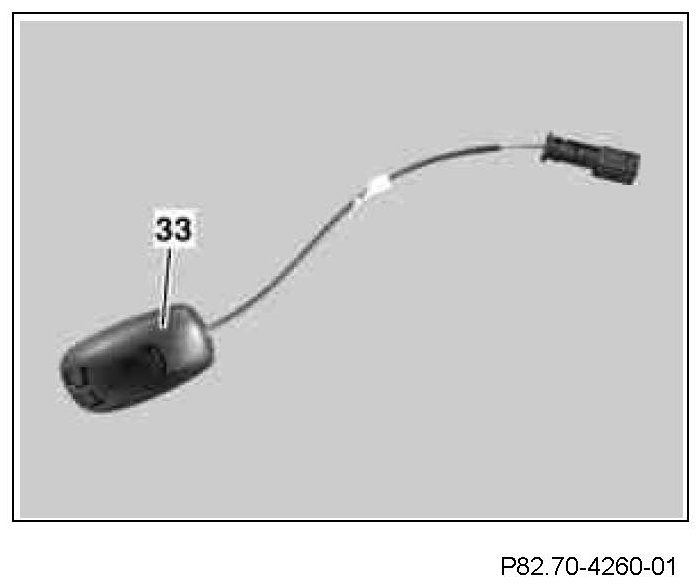

3 Prepare microphone (33) in installation kit as illustrated and attach to DRO microphone connector.

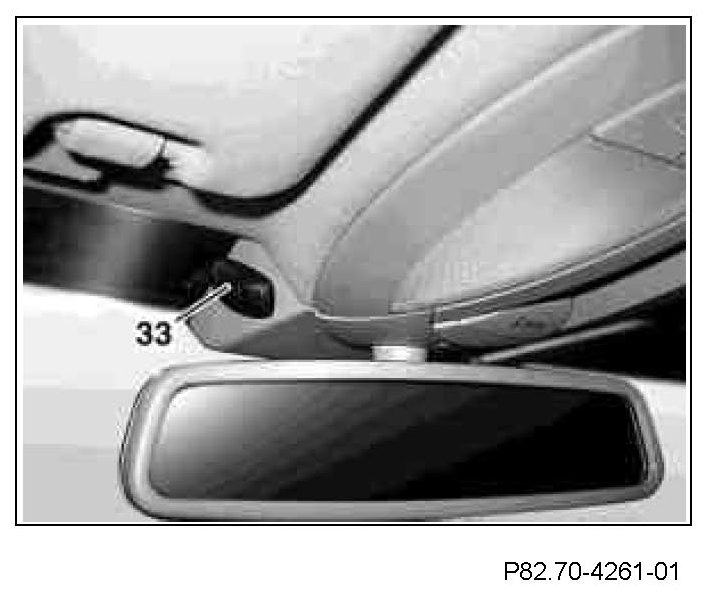

4 Stick microphone (33) to mirror base cover using adhesive tape as illustrated and align to driver.
