Wiring Diagram of Left Rear Door Keyless Go Control Module PE80.61-U-2103DA



Wiring Diagram Of Left Rear Door Keyless Go Control Module PE80.61-U-2103DA

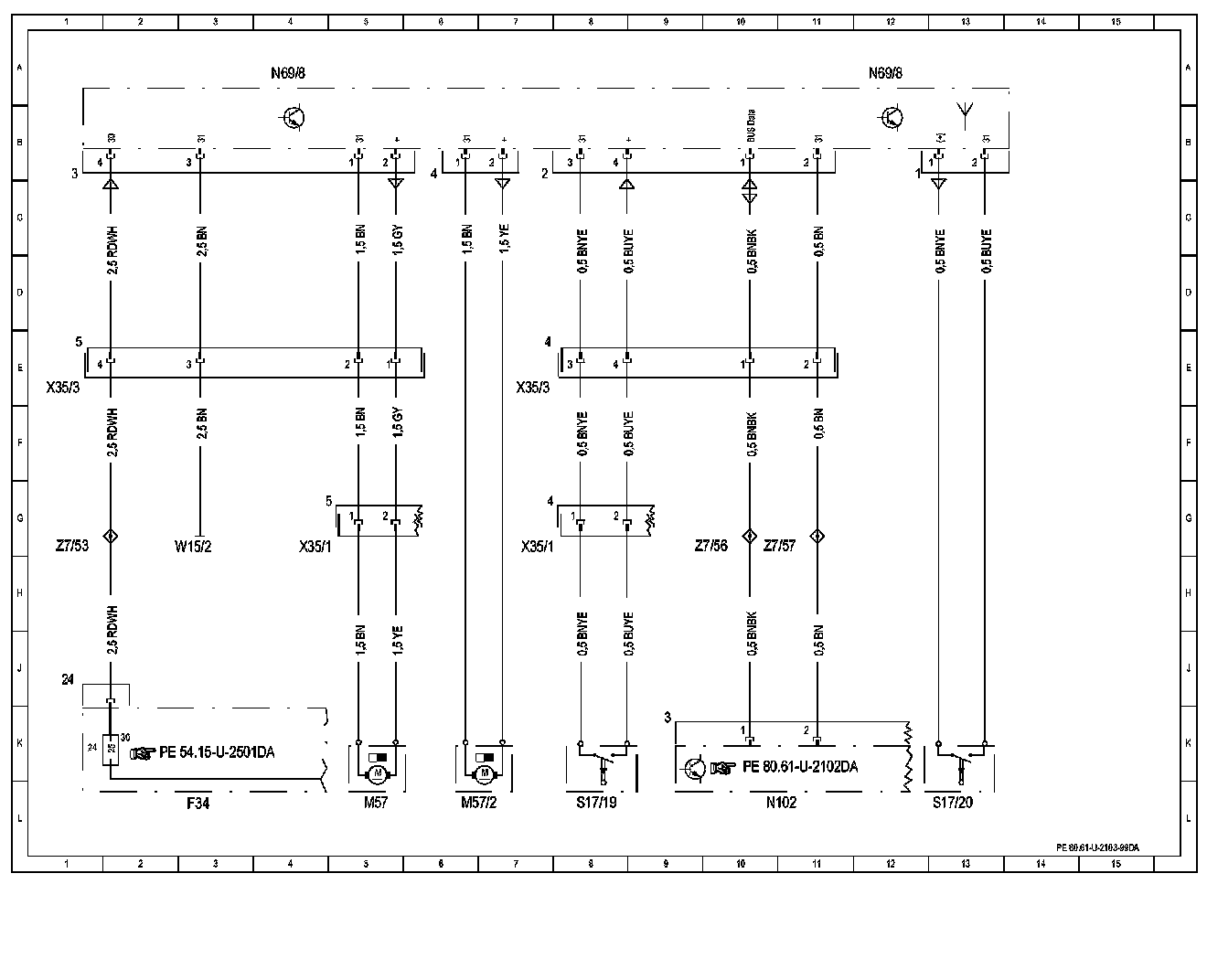

Wiring Diagram:

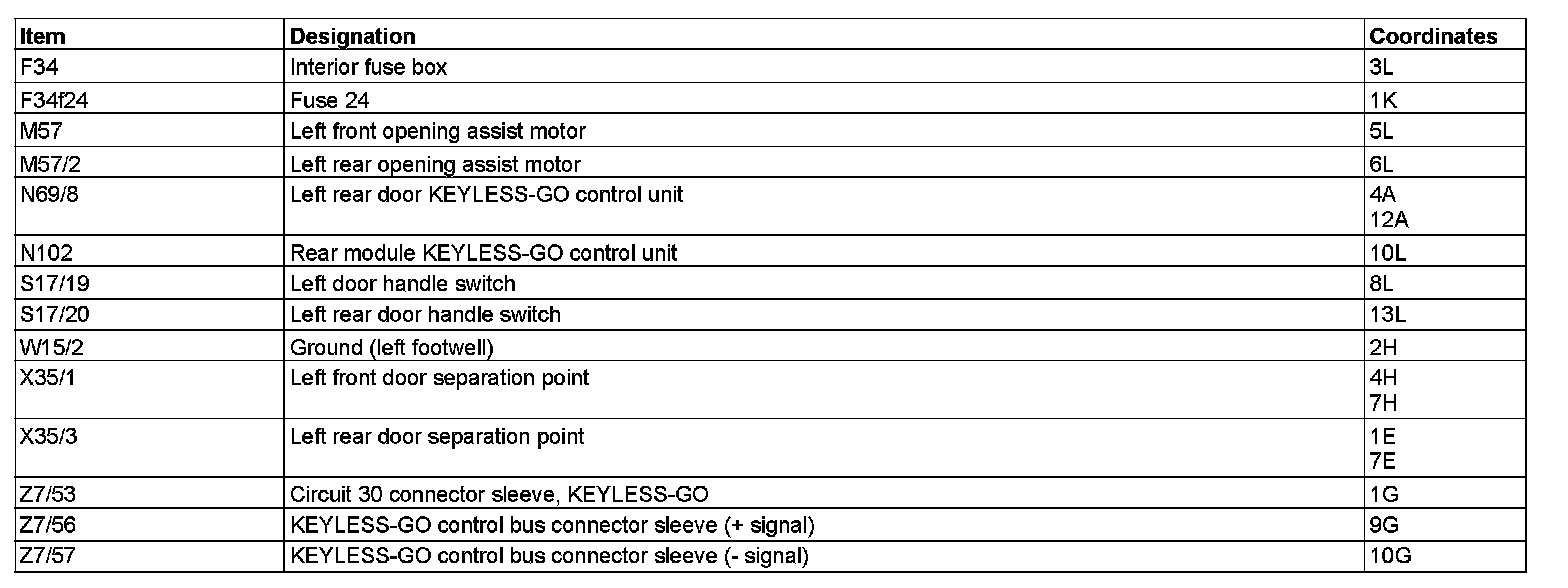

Component Description/Coordinates, F34 To Z7/57:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
