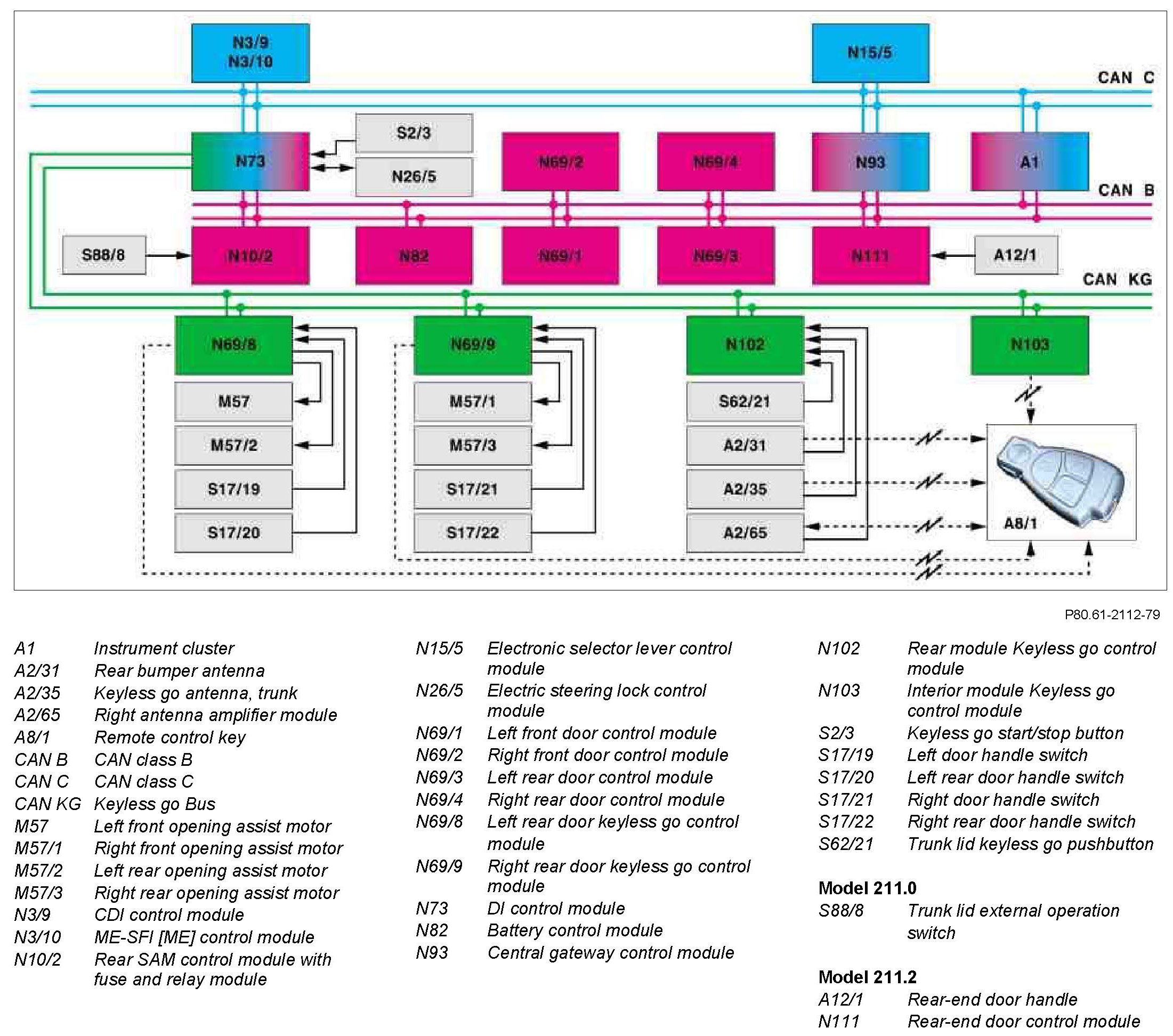

GF80.61-P-0005-02T Keyless Go Block Diagram
GF80.61-P-0005-02T Keyless Go Block Diagram
GF80.61-P-0005-02T Keyless Go Block Diagram
- with CODE (889) Keyless Go
Component Identification:
