AR82.62-P-8000TA Remove/Install Keyless GO Antenna In Trunk

AR82.62-P-8000TA Remove/Install Keyless GO Antenna In Trunk
- with CODE (889) Keyless go







1 Disconnect ground cable of battery

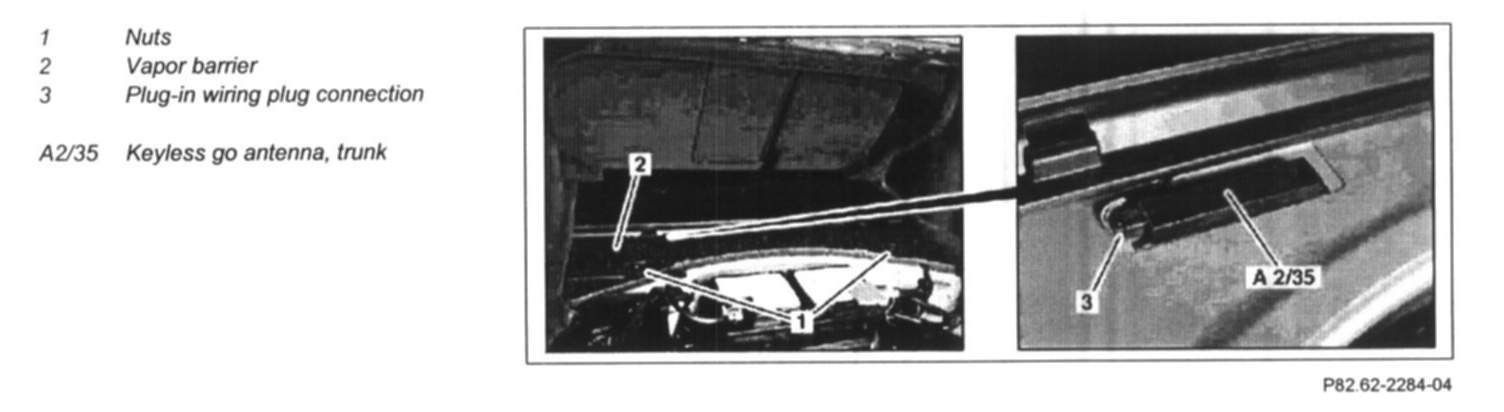

2 Unscrew nuts (1) and remove damping material (2) from trunk
3 Separate electrical plug connection (3)
4 Unclip trunk Keyless Go antenna (A2/35) from luggage compartment floor using mounting wedge

See "Special Tools" given below.

5 Install in the reverse order

Special Tools

Mounting Wedge, P/N # 110 589 03 59 00:
