AR82.62-P-8000T Remove/Install Keyless GO Antenna In Rear Bumper



AR82.62-P-8000T Remove/Install Keyless GO Antenna In Rear Bumper
- with CODE (889) Keyless go







1 Disconnect ground cable of battery

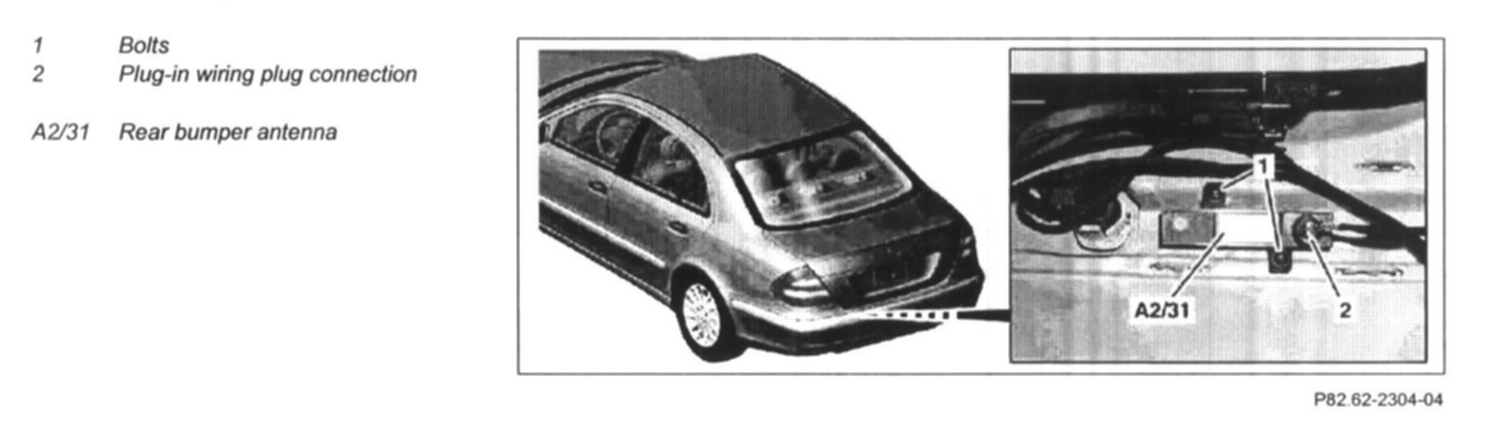

2 Remove bolts (1)
3 Disconnect electrical connector (2) and remove rear bumper antenna (A2/31)
4 Install in the reverse order
