Function Schematic For Drive Authorization System (DAS) System PE80.57-U-2050DA



Function Schematic For Drive Authorization System (DAS) Electrical System PE80.57-U-2050DA

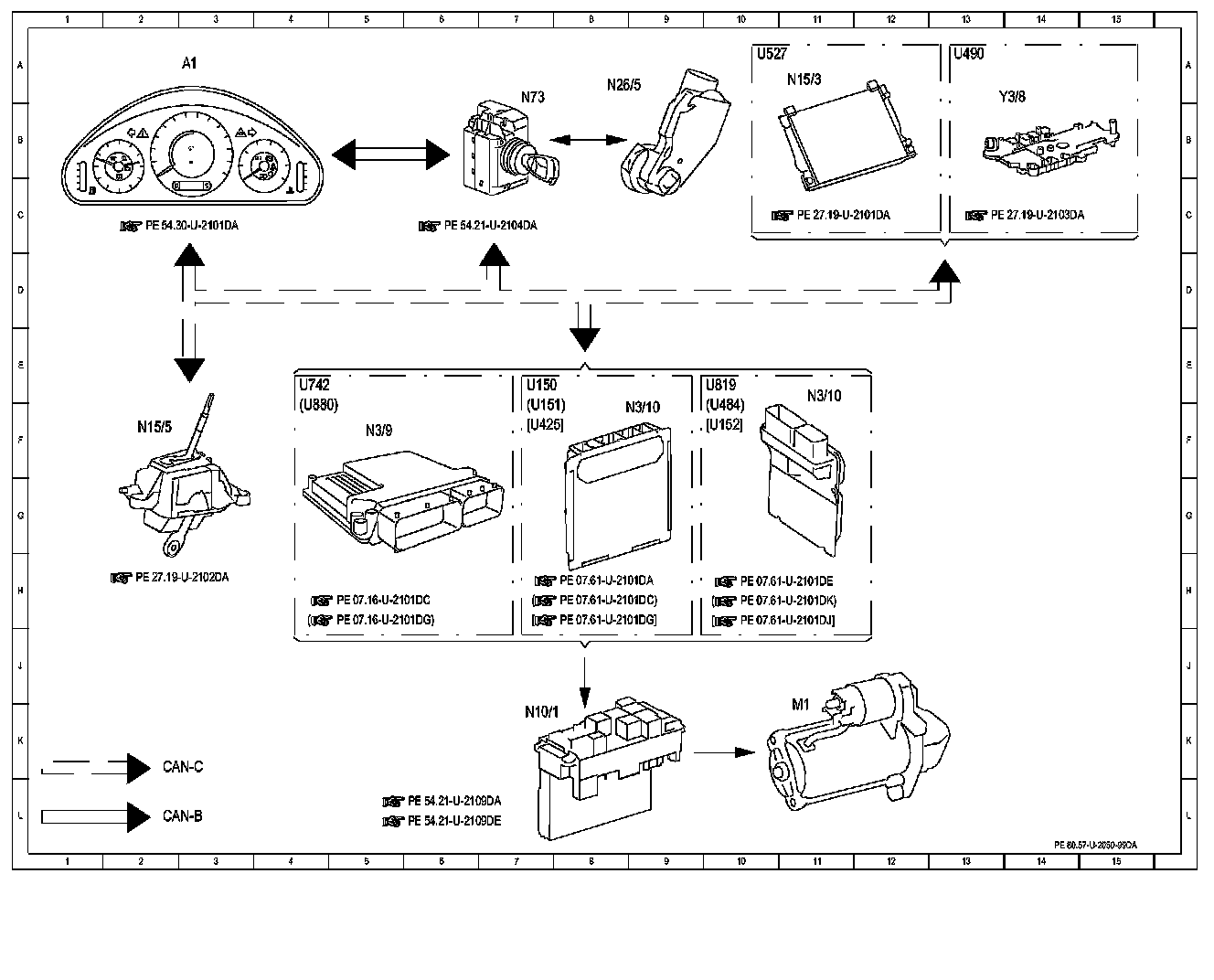

Function Diagram:

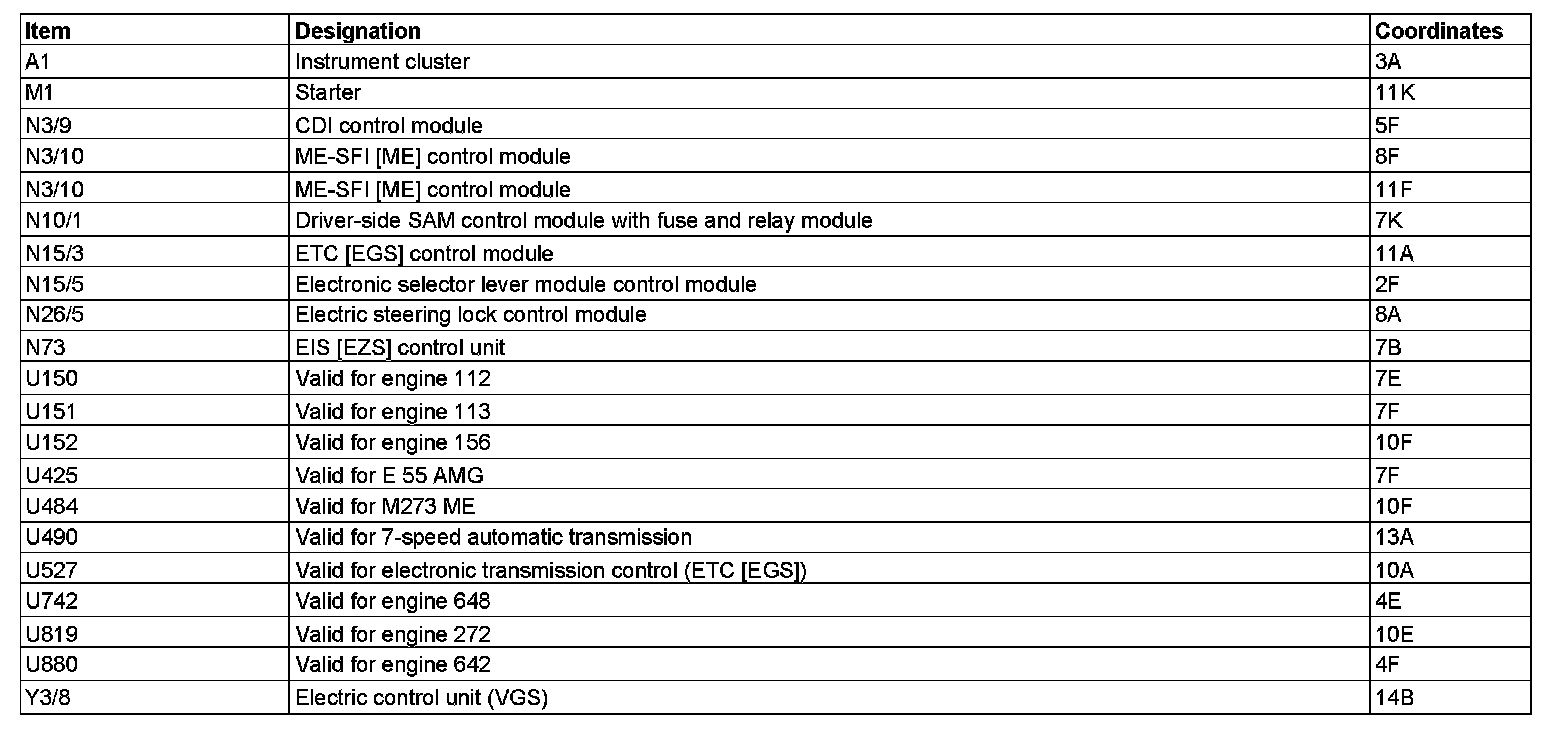

Component Description/Coordinates, A1 To Y3/8:








Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
