AR82.62-P-8980TY Remove/Install Bluetooth Antenna
AR82.62-P-8980TY Remove/Install Bluetooth Antenna
AR82.62-P-8980TY Remove/Install Bluetooth Antenna

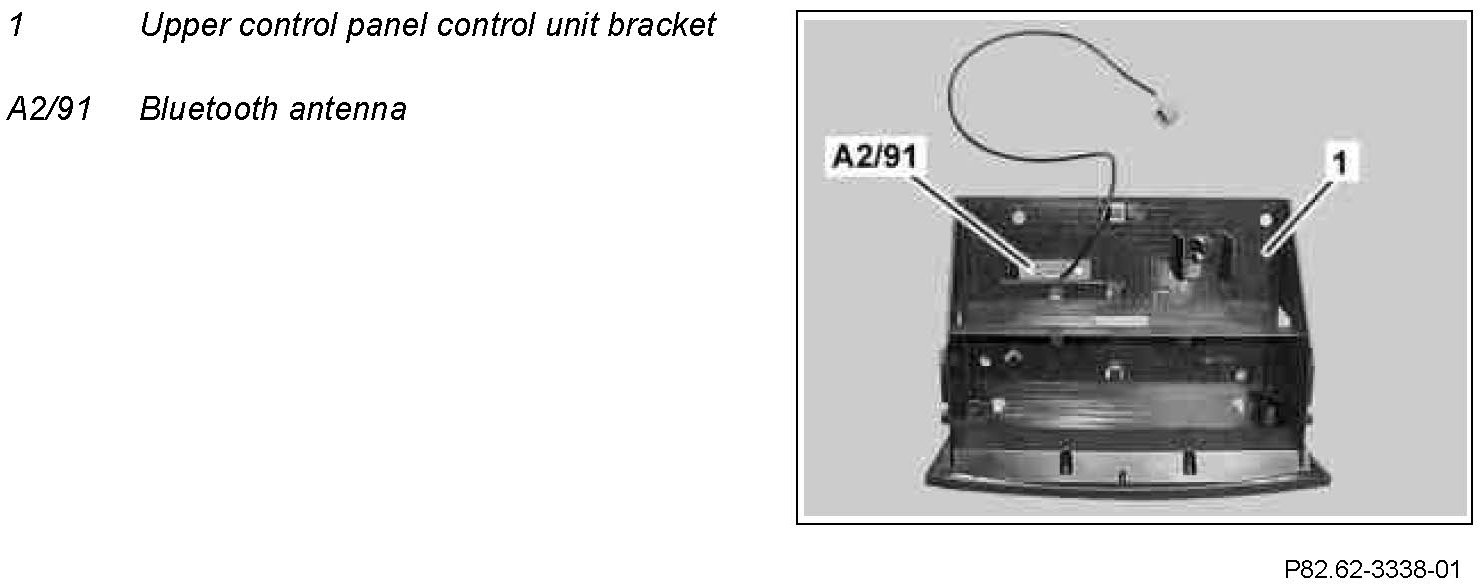

Component Identification:

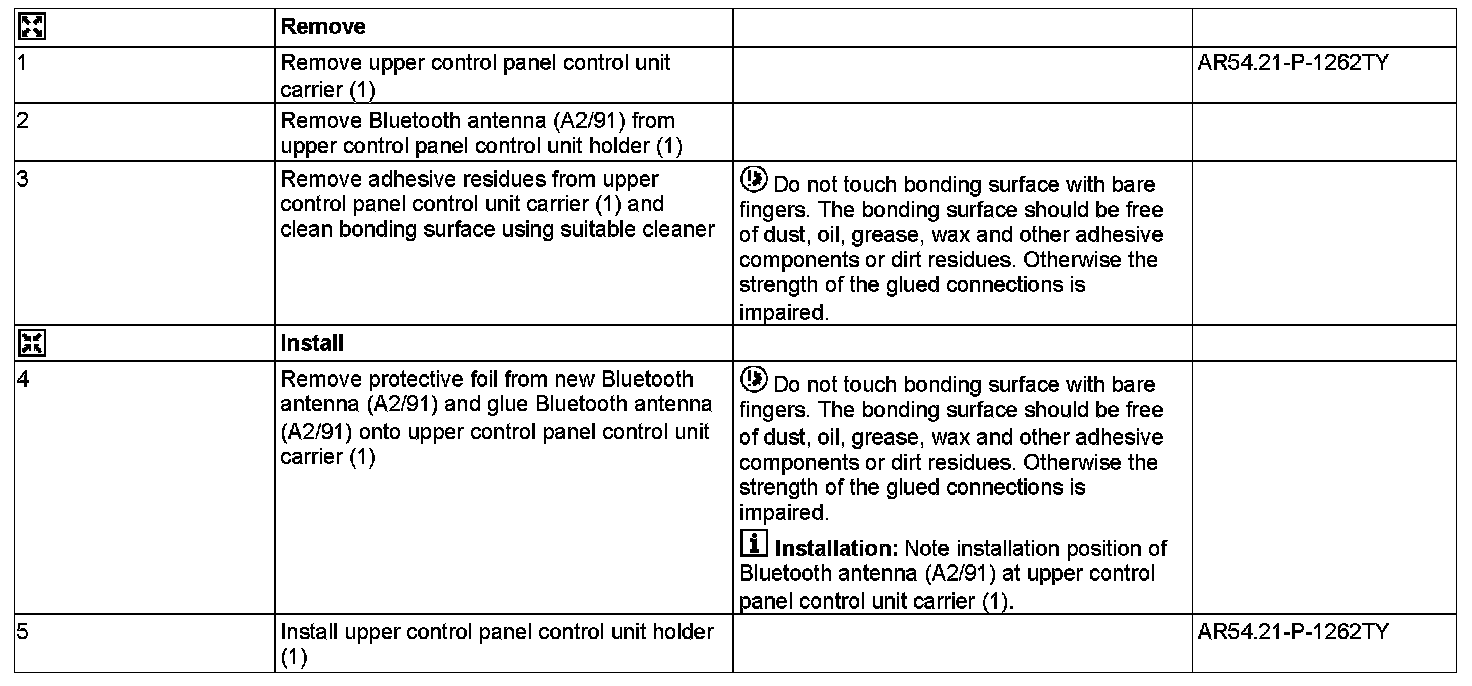

Steps 1 - 5:
