AN82.62-P-0001-04TX Retrofit Antenna Line

AN82.62-P-0001-04TX Retrofit Antenna Line
- with CODE (523) MB Audio 20 radio


Shown on model 219

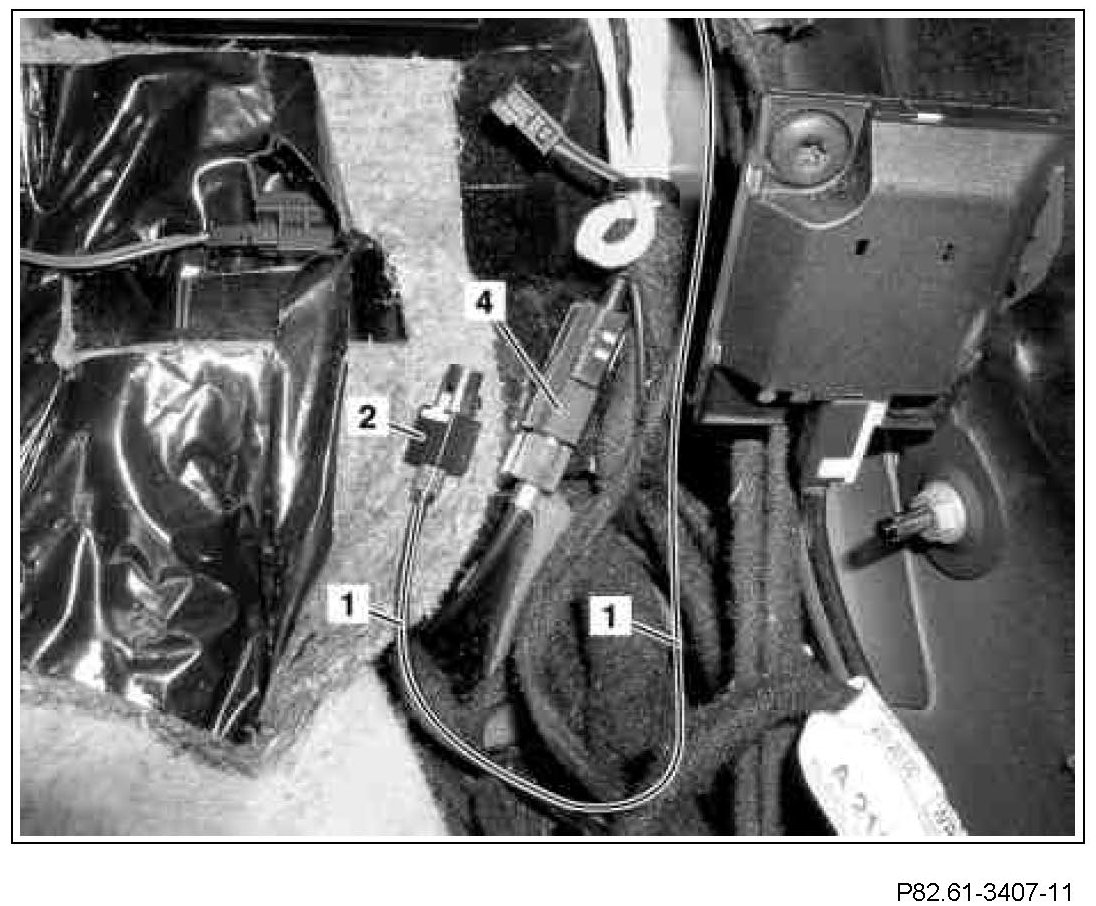

1 Detach standard antenna connector (4), insulate connector (no longer required) using felt tape and strap down.

The antenna connector (4) is located on the left wheel arch, above the left rear entrance.

2 Connect connector (2) of new antenna line (1) with coupling of detached antenna connector (4).
3 Route new antenna line (1) along existing lines into left of luggage compartment and fasten in place.

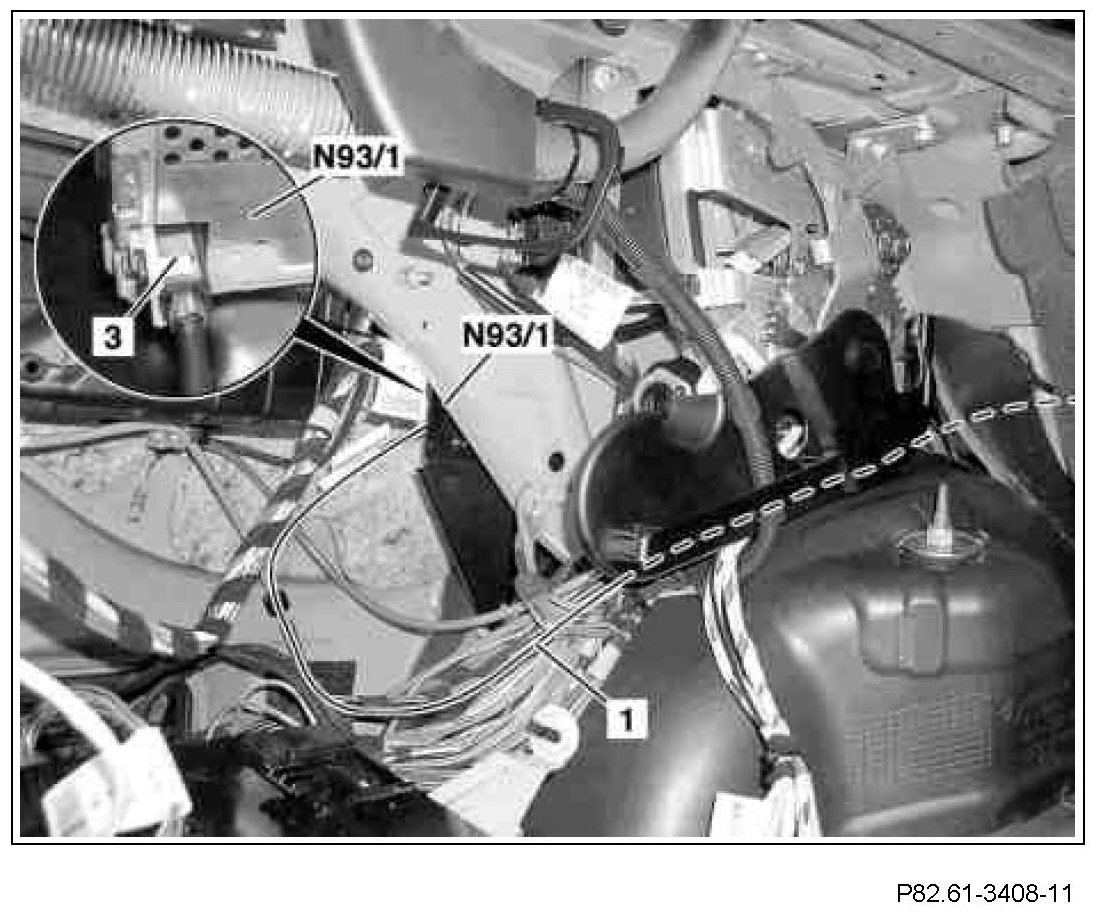

4 Route antenna line (1) further along existing lines to the audio gateway control unit (N93/1) and fasten in place.
5 Connect coupling (3) of new antenna line (1) to audio gateway control unit (N93/1).

The connection at the audio gateway control unit (N93/1) is coded.
