AN82.62-P-0001-04T Retrofit Antenna Line

AN82.62-P-0001-04T Retrofit Antenna Line
- with CODE (596) Heat-insulating glass
- with CODE (523) MB Audio 20 radio

Component Identification:

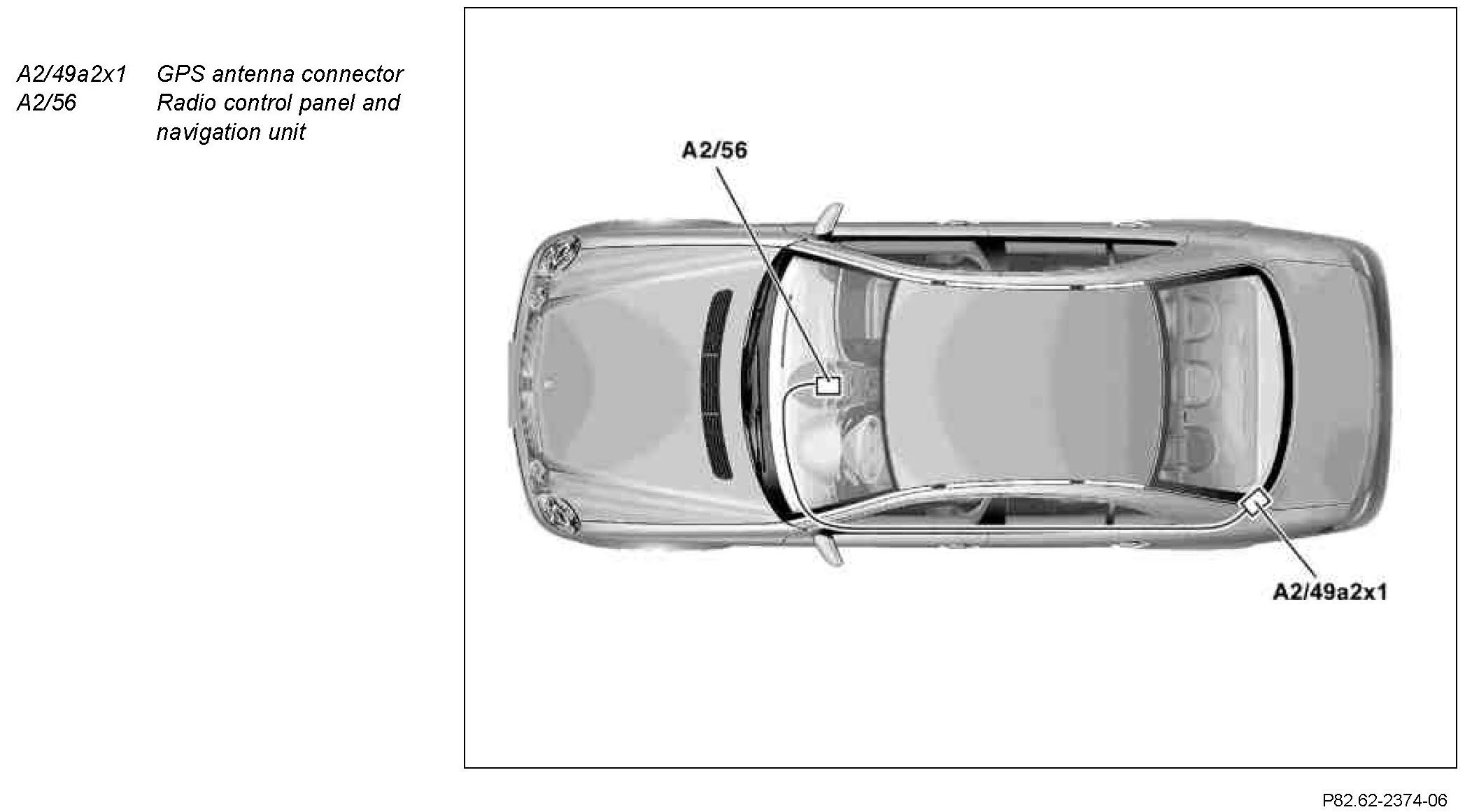

Routing diagram for antenna line

1 Route antenna line (GPS) into vehicle and fix in place.

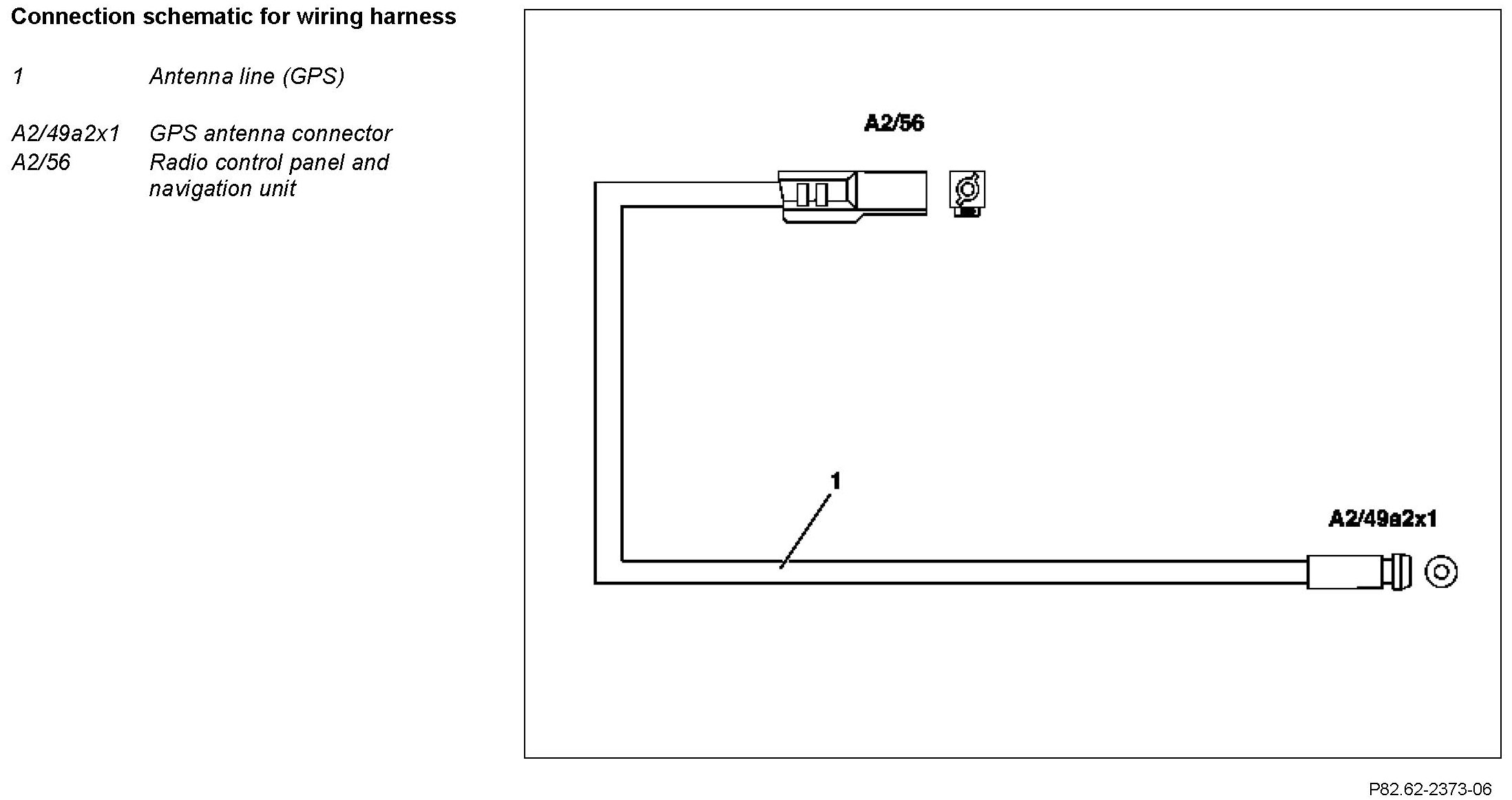

Component Identification:

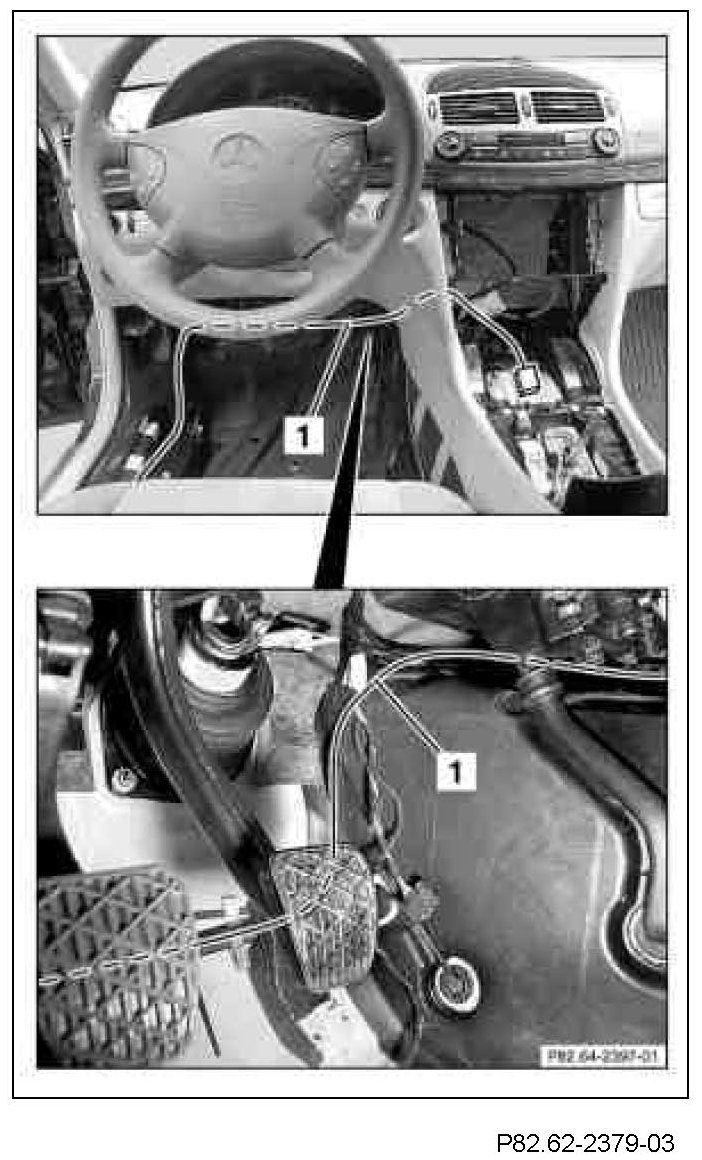

2 Route GPS antenna line (1) from radio recess in center console to cable duct in left front footwell along the foot-operated parking brake cable and fix in place.

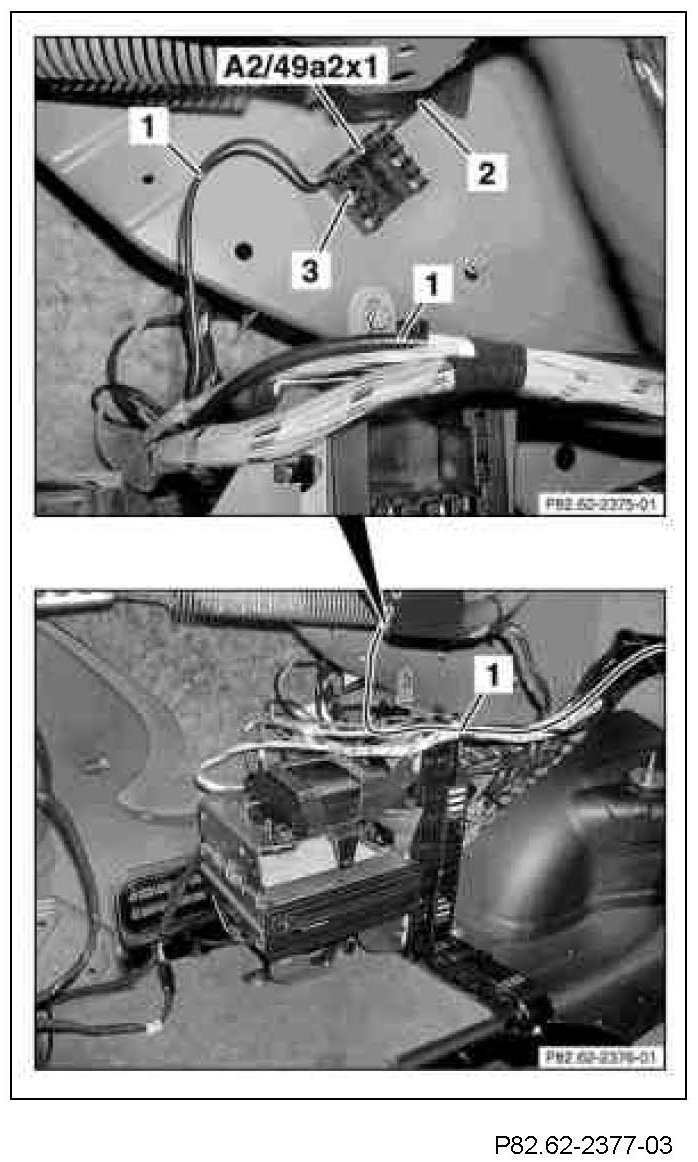

3 Route GPS antenna line (1) from cable duct in left front footwell along the existing lines in the cable duct to the GPS antenna connector in the left of the trunk and fix in place.

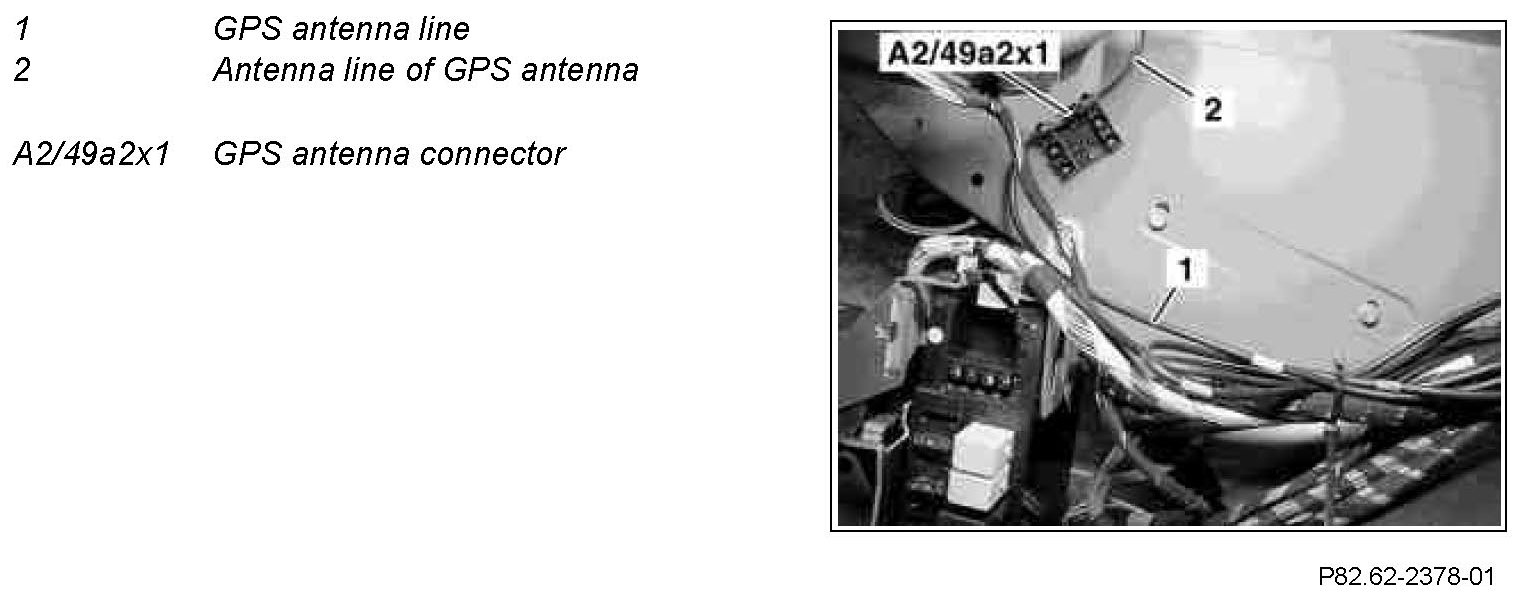

4 Connect GPS antenna line (1) to antenna line of GPS antenna (2) and clip the GPS antenna connector (A2/49a2x1) into the bracket (3).

5 Strap down the excess length of the GPS antenna line (1), as shown, and then fix in place using cable tie.
