Home >> Mercedes Benz >> 2007 >> E 320 BLUETEC (211.022) V6-3.0L DSL Turbo (642.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Description and Operation >> GF82.62-P-3105TJ Antenna Amplifier Module, Location/Task/Design/Function

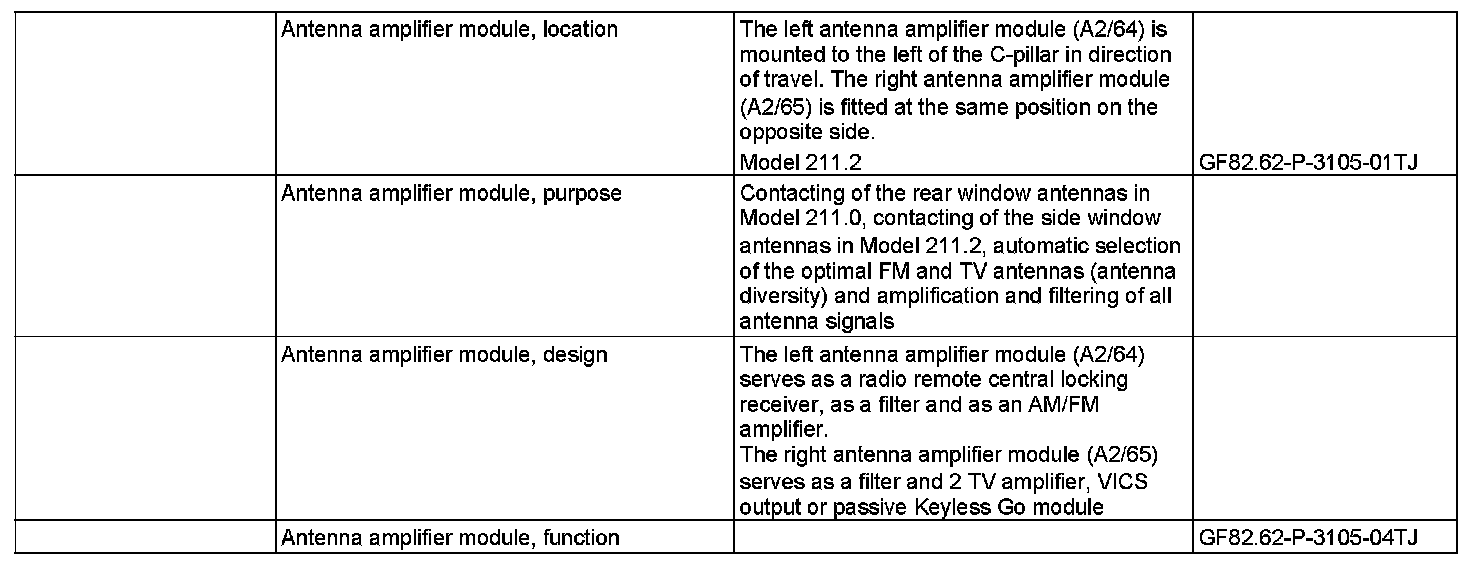

GF82.62-P-3105TJ Antenna Amplifier Module, Location/Task/Design/Function



GF82.62-P-3105TJ Antenna Amplifier Module, Location/Task/Design/Function
- with CODE (529) HIGH Class Japan

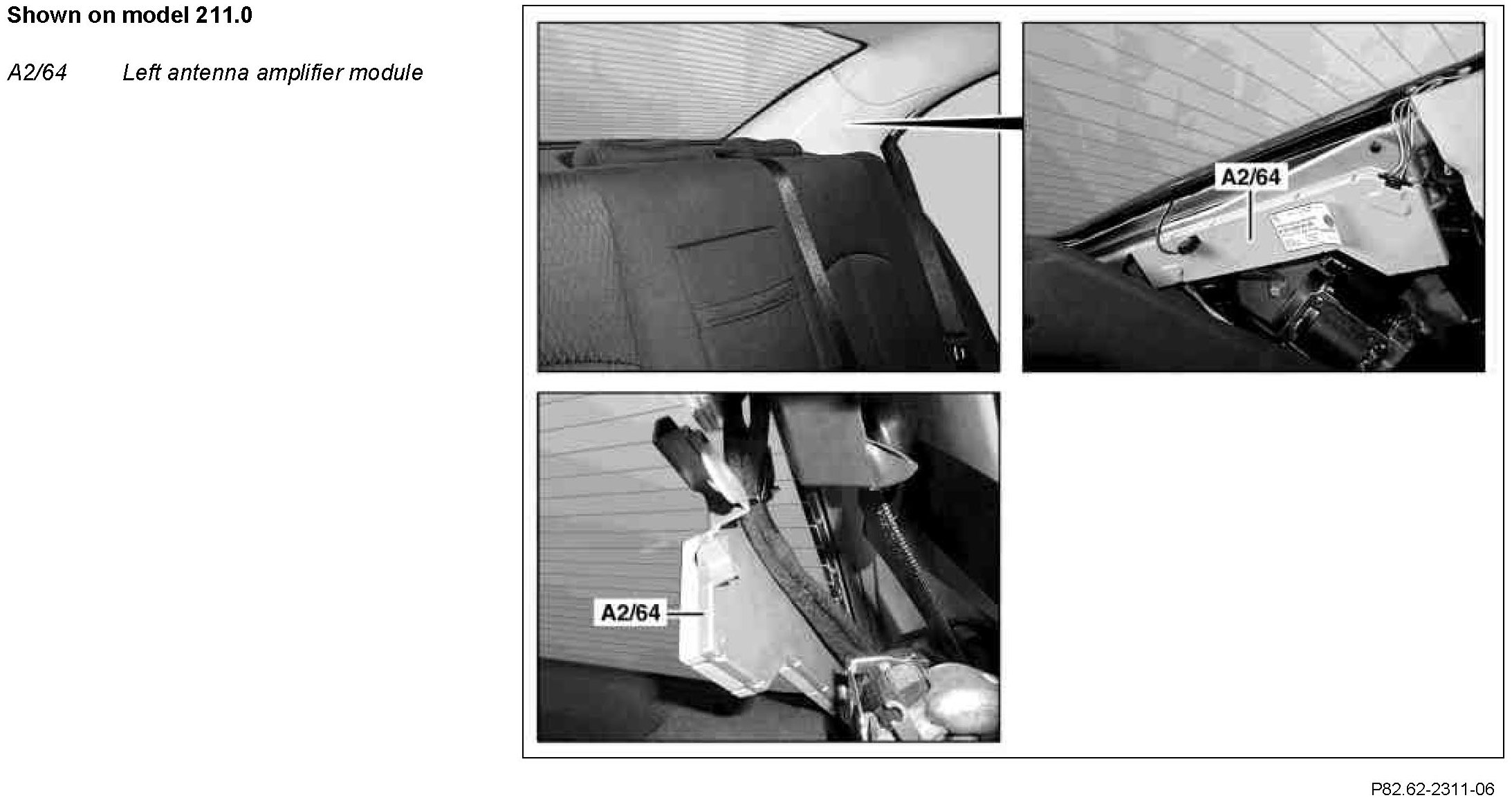

Component Identification:
