Antenna Amplifier: Service and Repair

AR82.62-P-8300T Remove/Install Antenna Amplifier Module

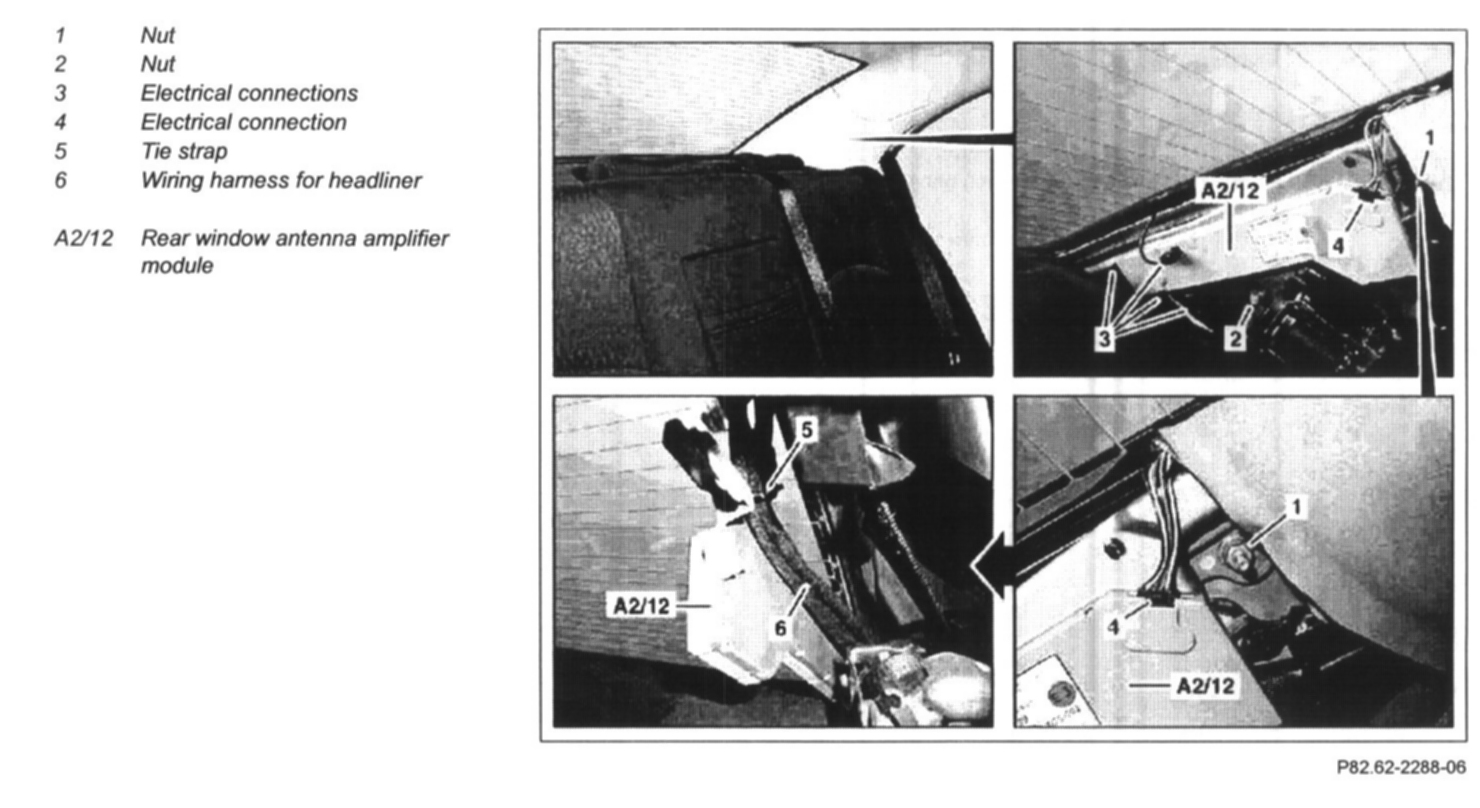

- Left antenna amplifier module






1 Disconnect ground cable of battery
2 Remove paneling on C-pillar

NOTE: Left-hand side

3 Detach electrical connections (3,4)
4 Unscrew nuts (1 2)

NOTE: Installation: Check for unobstructed movement of wiring harness for headliner (6) behind the antenna amplifier module for the rear window (A2/12)

5 Take off antenna amplifier module for rear window (A2/12) from C-pillar and remove tie straps (5)
6 Remove rear window antenna amplifier module (A2/12)
7 Install in the reverse order
8 Perform function check
