AN82.85-P-0003TE Retrofit Comand With APS Navigation System



AN82.85-P-0003TE Retrofit COMAND With APS Navigation System
- with CODE (523) MB AUdio 20 radio
- except CODE (525) MB Audio 50 APS radio
- except CODE (924) Bivalent natural gas drive
- except CODE (596) Heat-insulating glass
- except CODE (494) USA version
- except CODE (498) Japan version

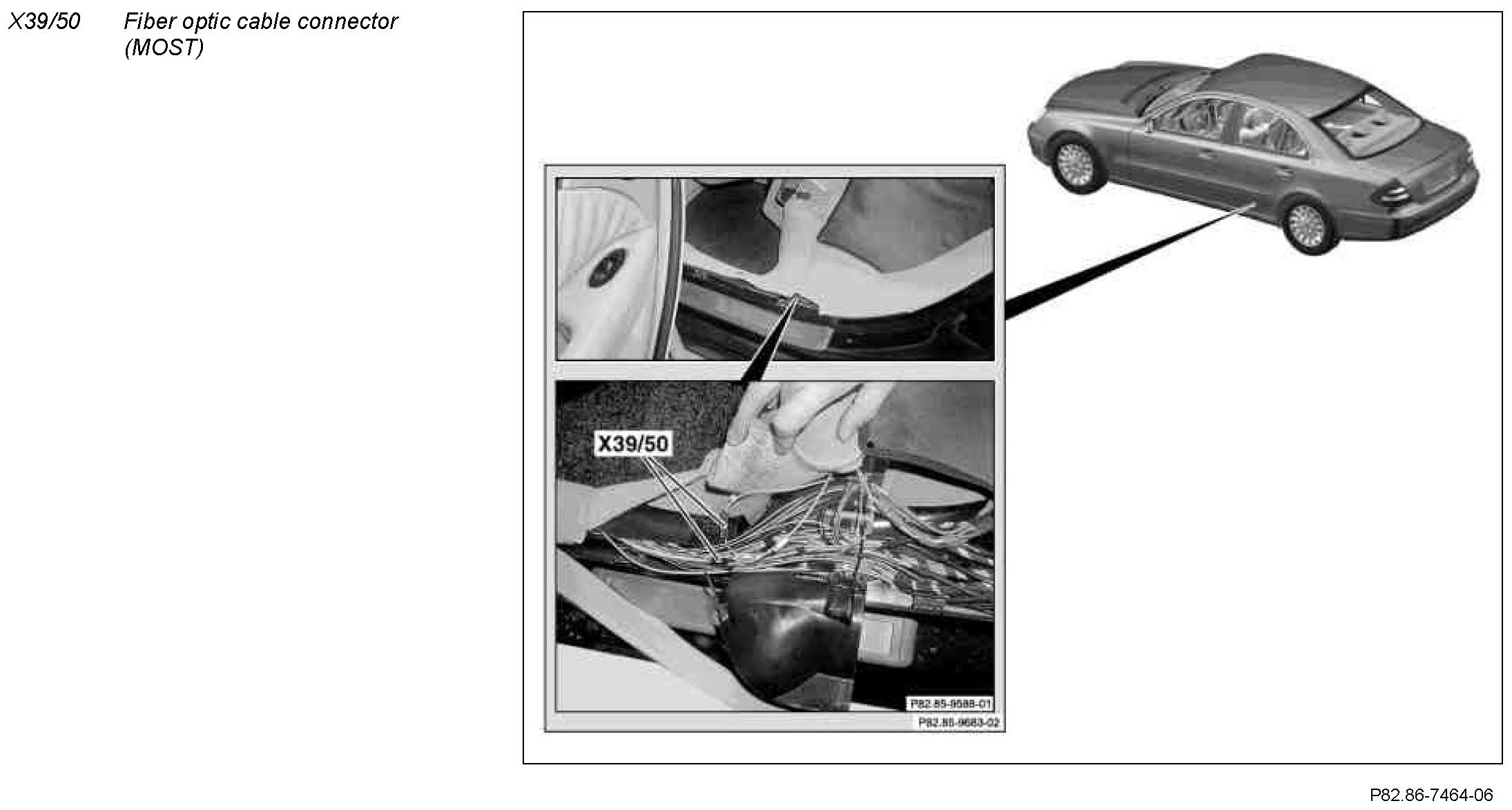

Component Identification:

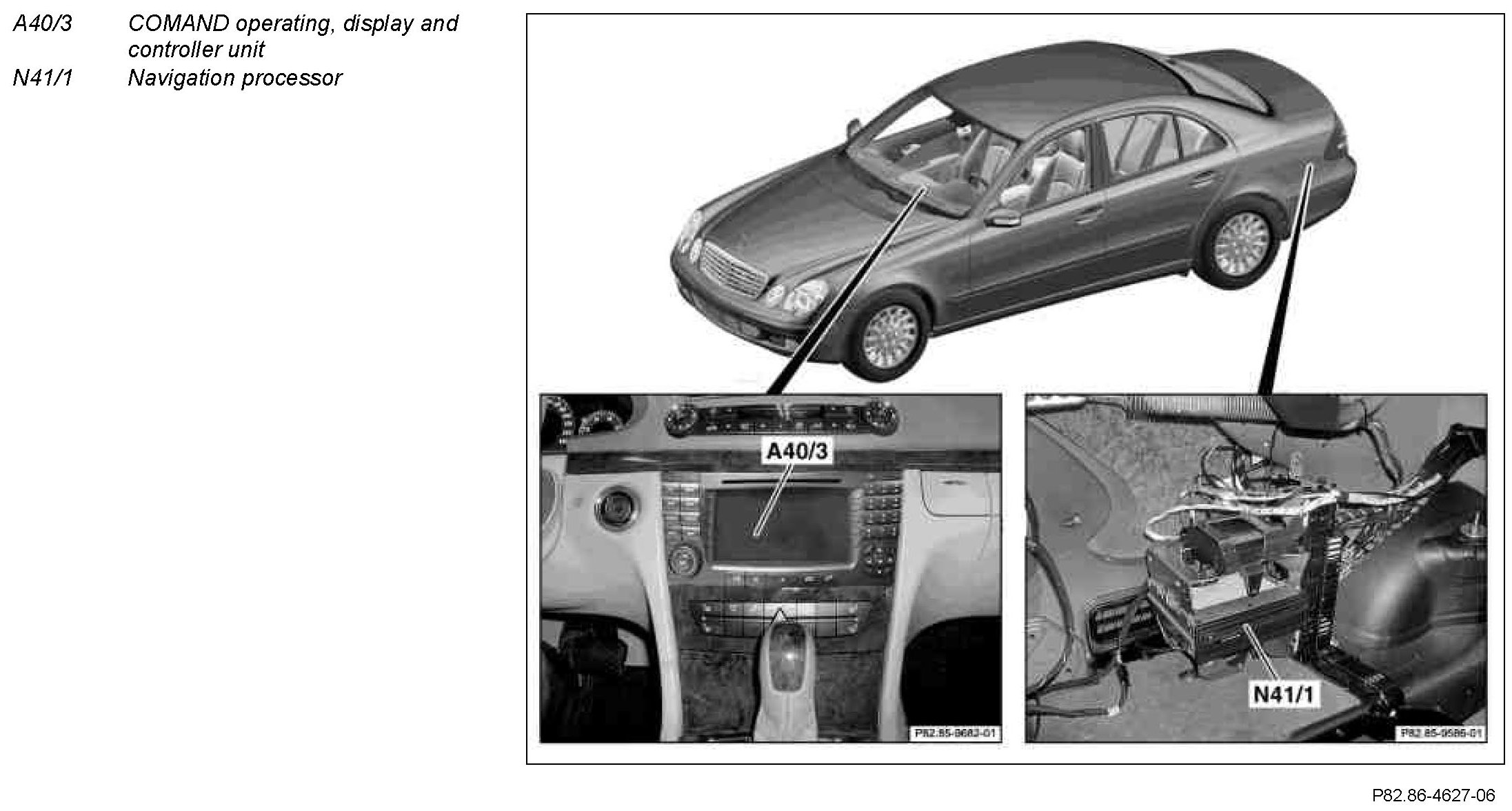

Component Identification:

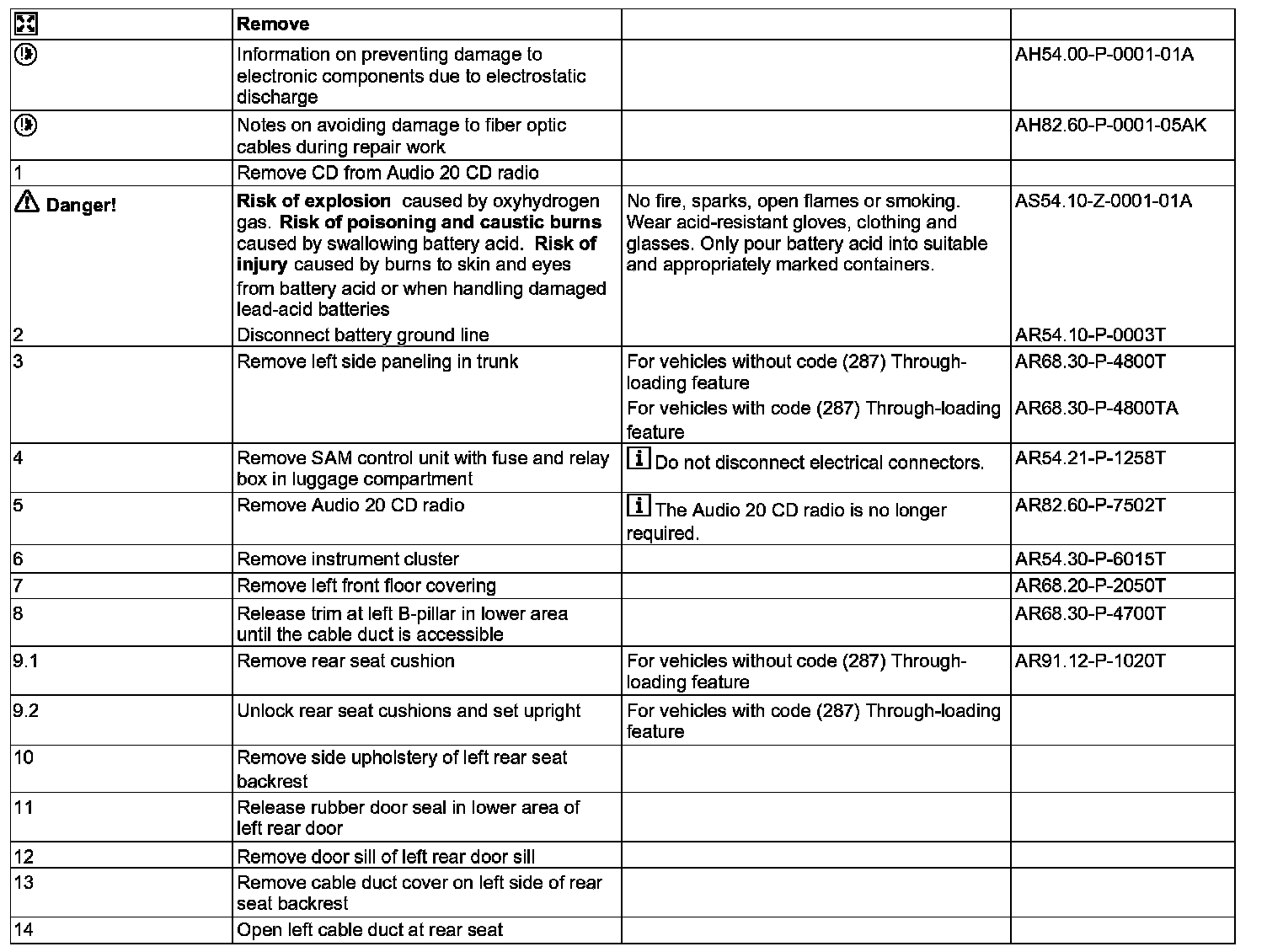

Steps 1 - 14:

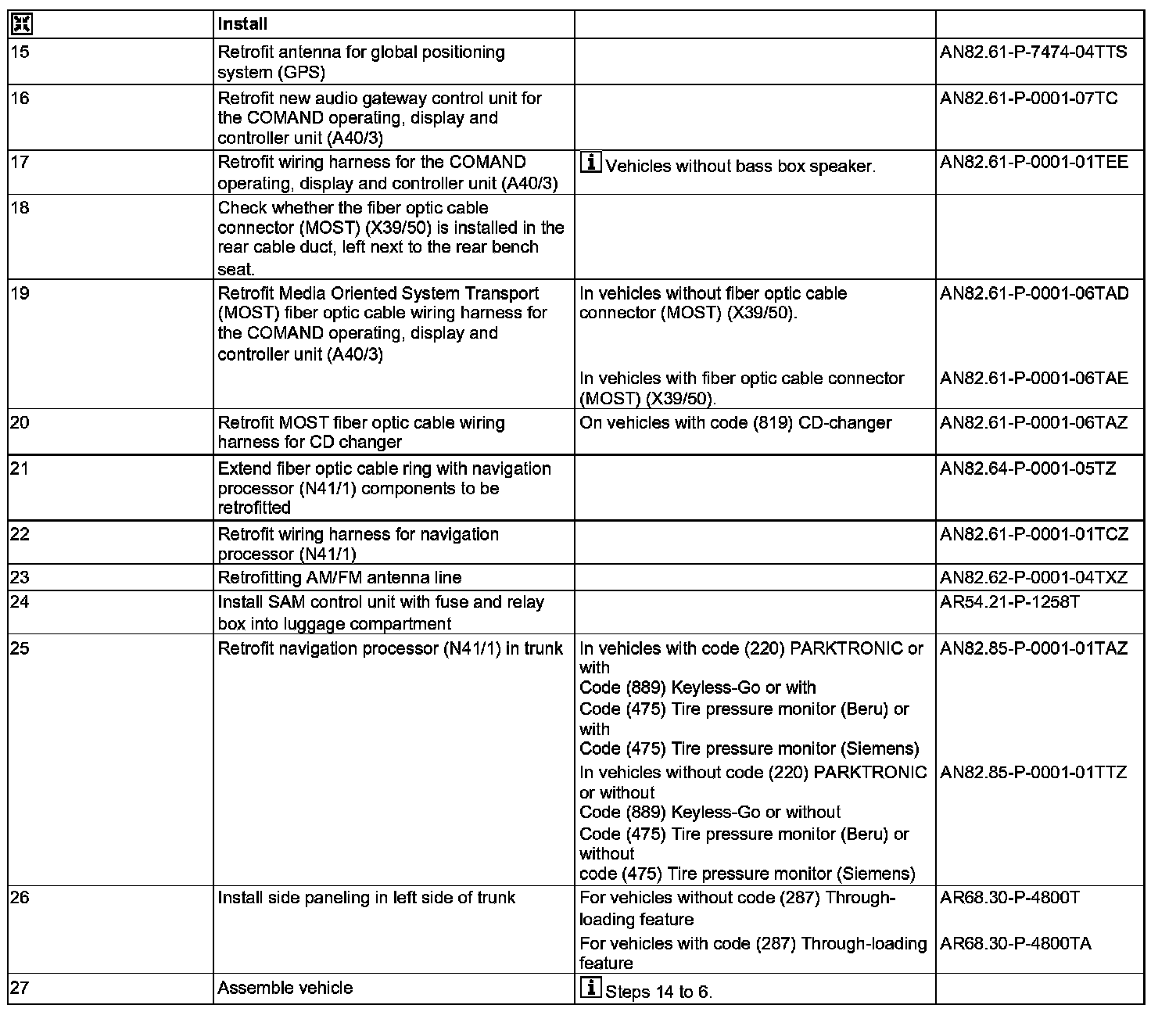

Steps 15 - 27:

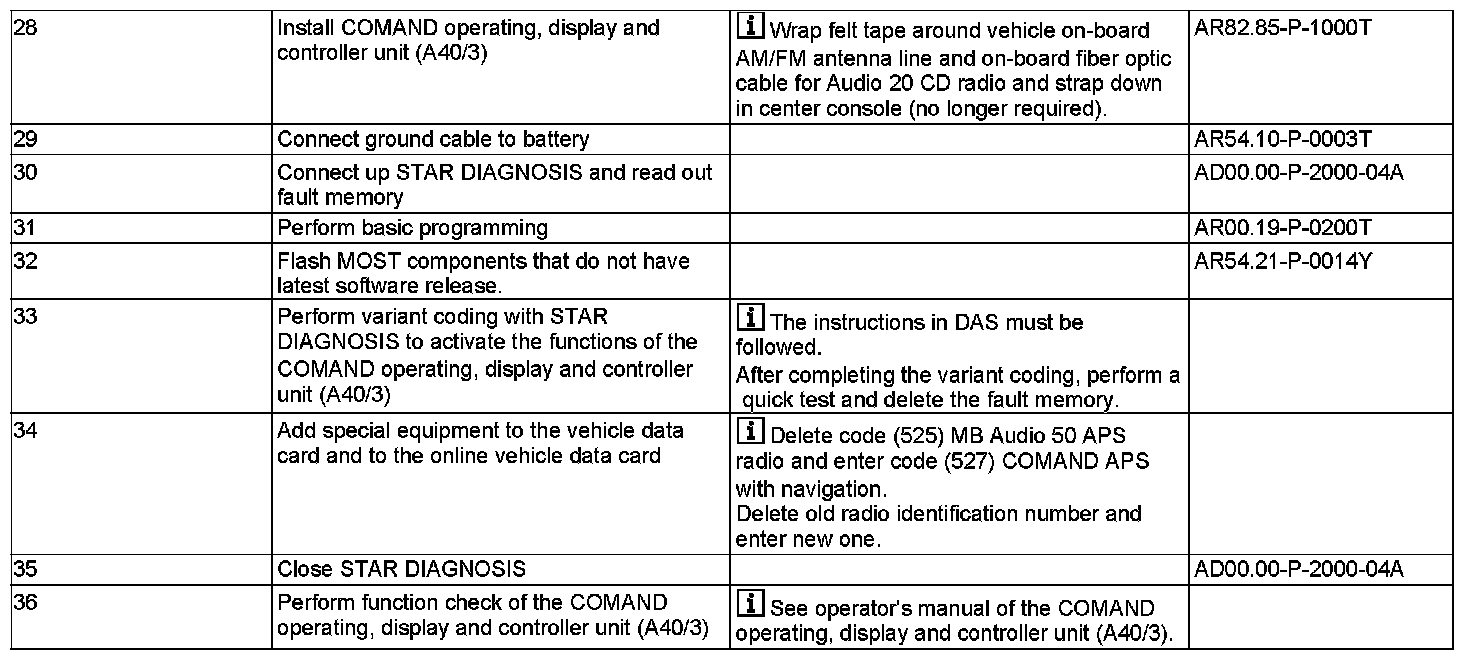

Steps 28 - 36:

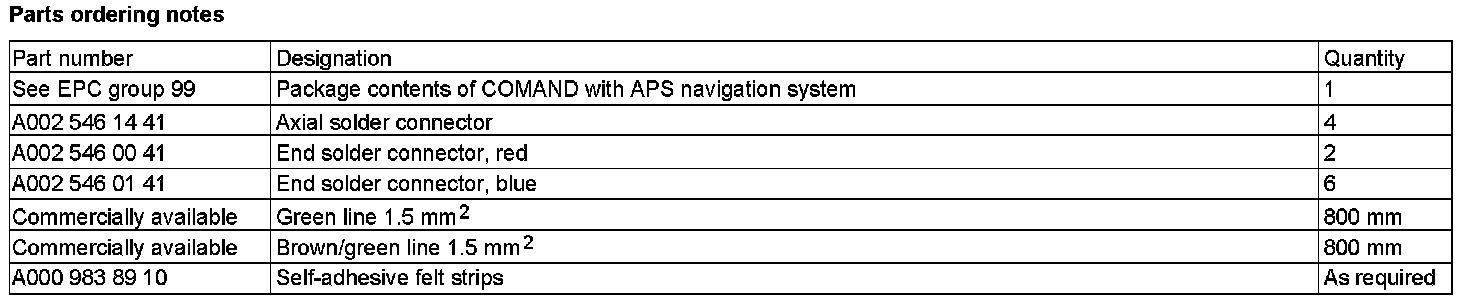

Parts Ordering Notes:
