GF82.85-P-3133TM Operating and Display Unit With Control Unit, Component Description

GF82.85-P-3133TM Operating And Display Unit With Control Unit, Component Description
- with CODE (527) COMAND APS with single DVD drive (with navigation)

Component Identification:

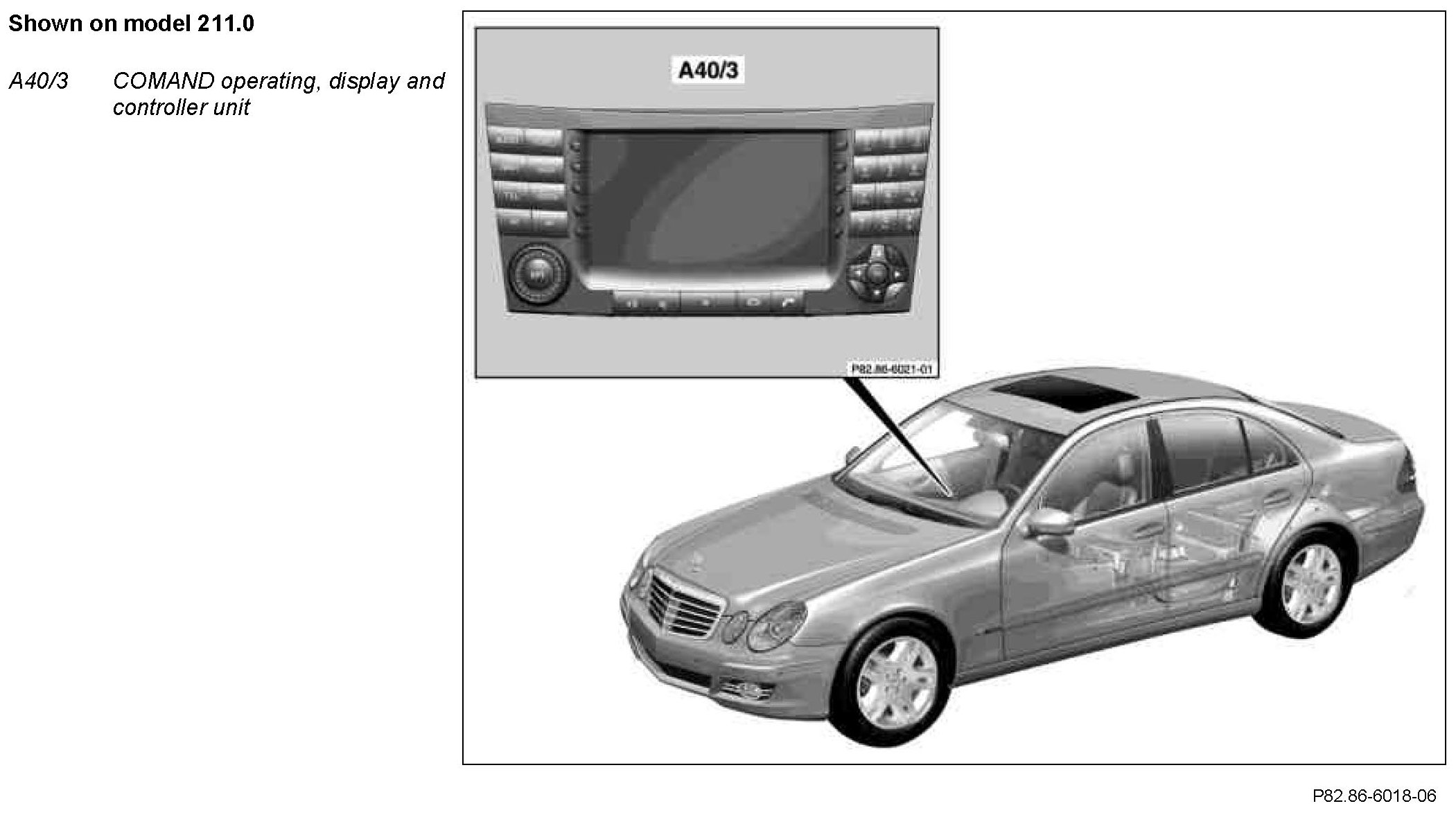

Location
The COMAND operating, display and controller unit is located in the 2-DIN installation opening in the center console.

Task
Central control of the following systems:
^ Audio (radio, CD)
^ Telephone
^ Navigation system
^ TV and video DVD
^ With code (813) Voice control system (VCS)

Design
The following components are integrated in the COMAND operating, display and controller unit:
^ Graphics and video capable 6.5" color display
^ Multistandard disk drive for DVD video, audio CD and MP3- CD-ROM CD ROM
^ Operating unit for controlling the audio, navigation and telematics functions
^ Central computer
