AR35.31-P-0525AC Check Rear Axle Differential Variant



AR35.31-P-0525AC Check rear axle differential variant

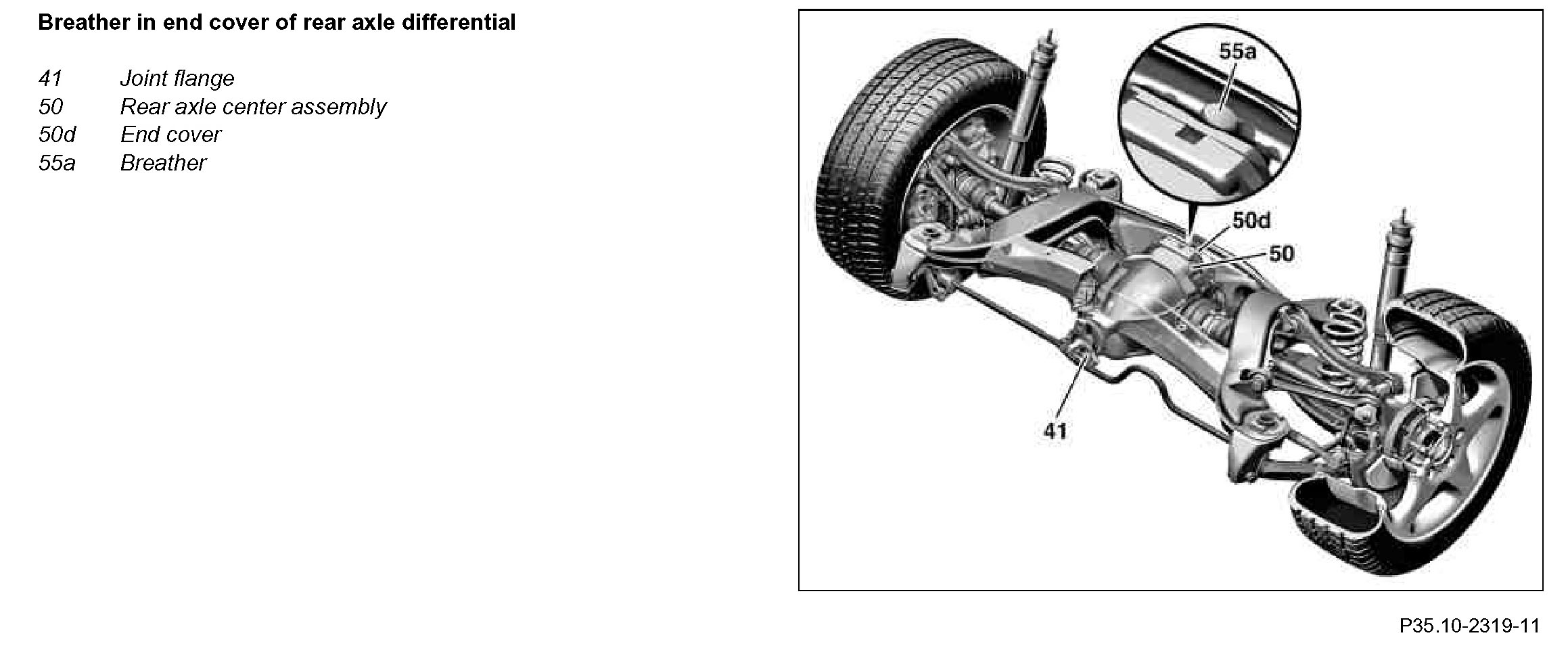

Component Identification:




Component Identification:

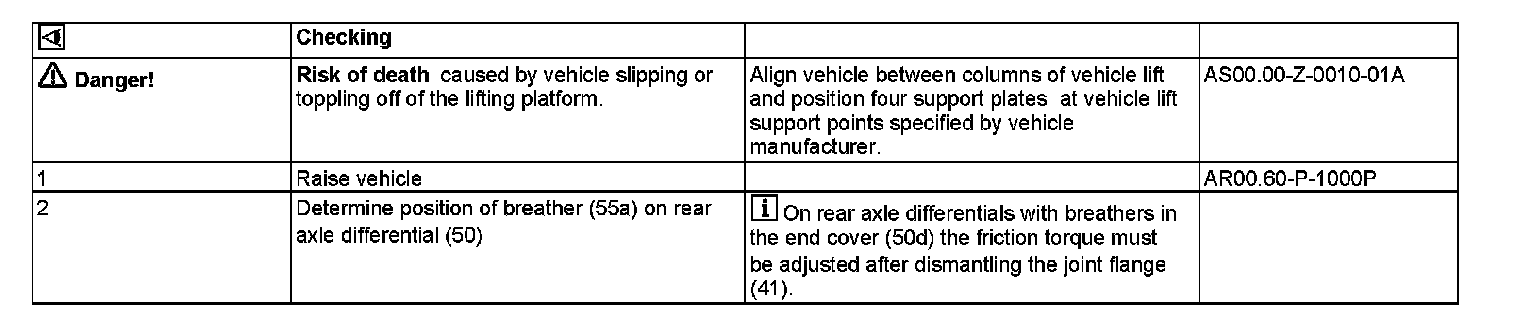

Steps 1-2:
