AR33.30-P-0541-01P Clamping Front Axle Drive On Assembling Trestle



AR33.30-P-0541-01P Clamping Front Axle Drive on Assembling Trestle





129 589 00 31 00
Assembly stand

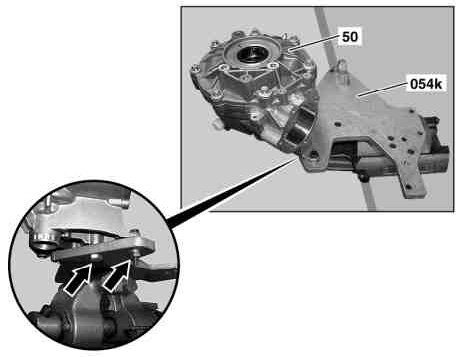

1 Attach front axle gear (50) to assembly plate (054k) of repair stand (arrows).
