AR27.19-P-0220P Disassemble/Assemble Electrohydraulic Control Module



AR27.19-P-0220P Disassemble and assemble electrohydraulic control module
with transmission 722.6

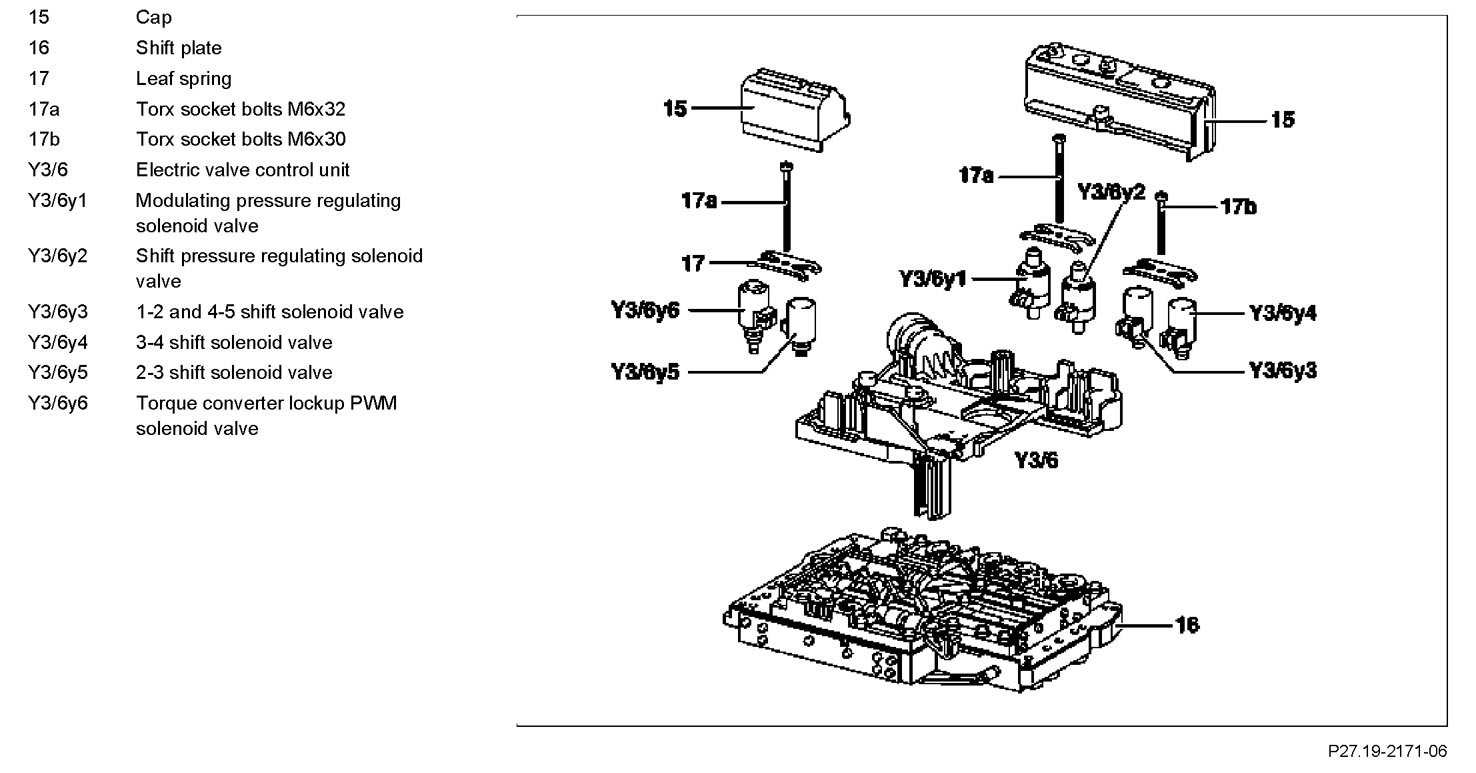

Component Identification:

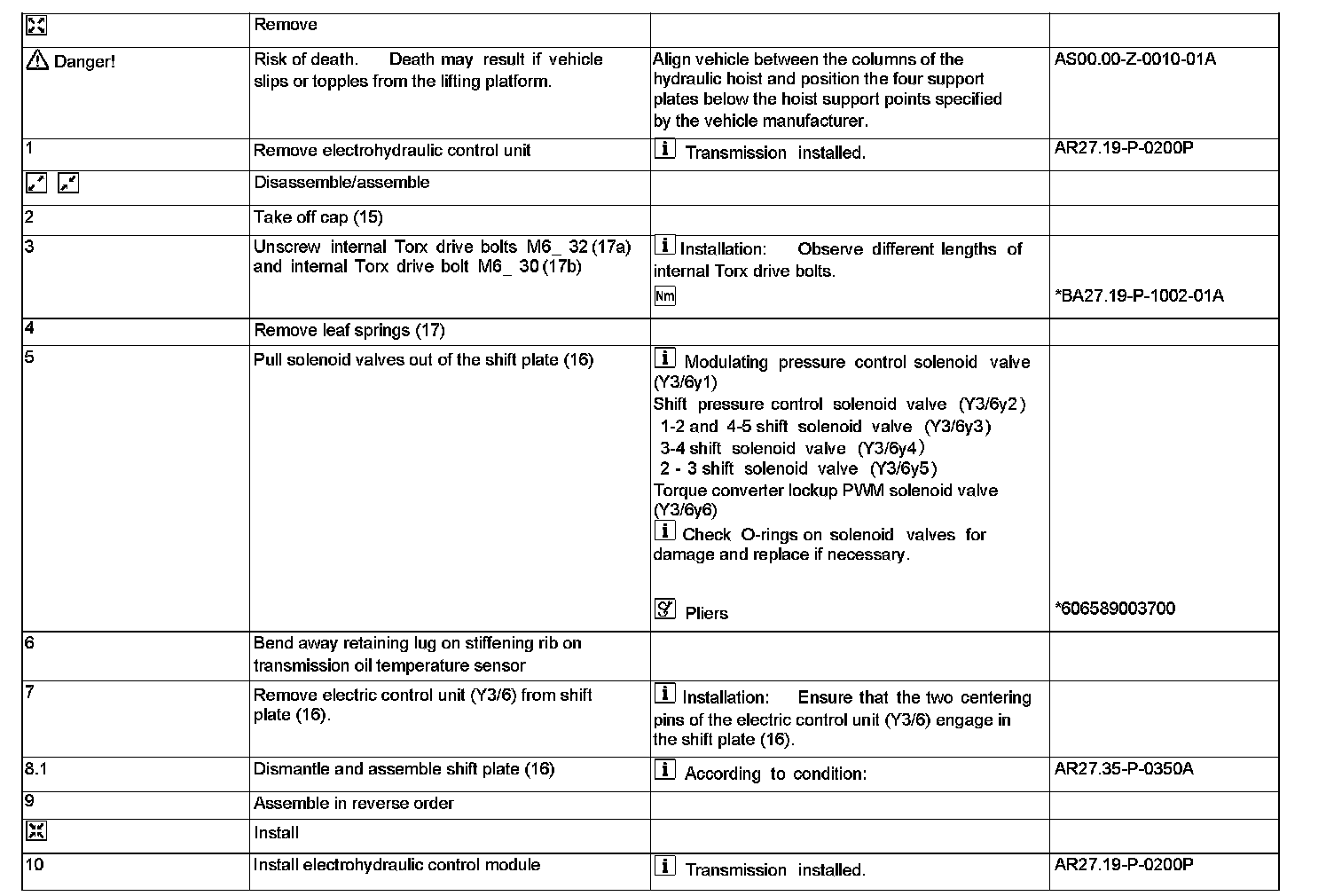

Steps 1- 10:

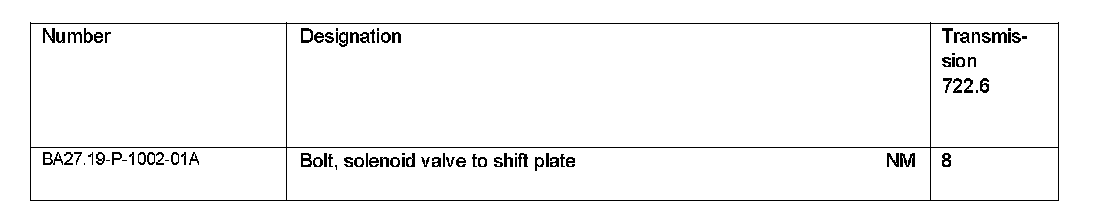

Electro Hydraulic Control Module:

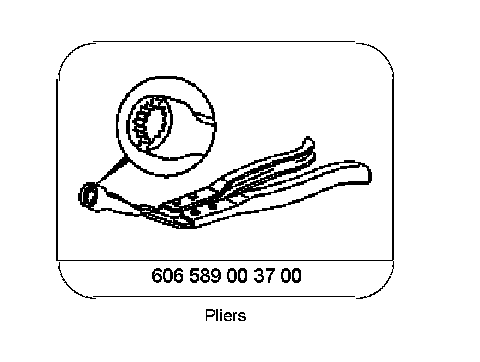

Special Tools:
