Home >> Mercedes Benz >> 2007 >> C 280 4MATIC (203.092) V6-3.0L (272.941) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Gear >> Service and Repair >> Procedures >> AR46.40-P-0400PW Check and Replace Rubber Boot

AR46.40-P-0400PW Check and Replace Rubber Boot



AR46.40-P-0400PW Check and replace rubber boot

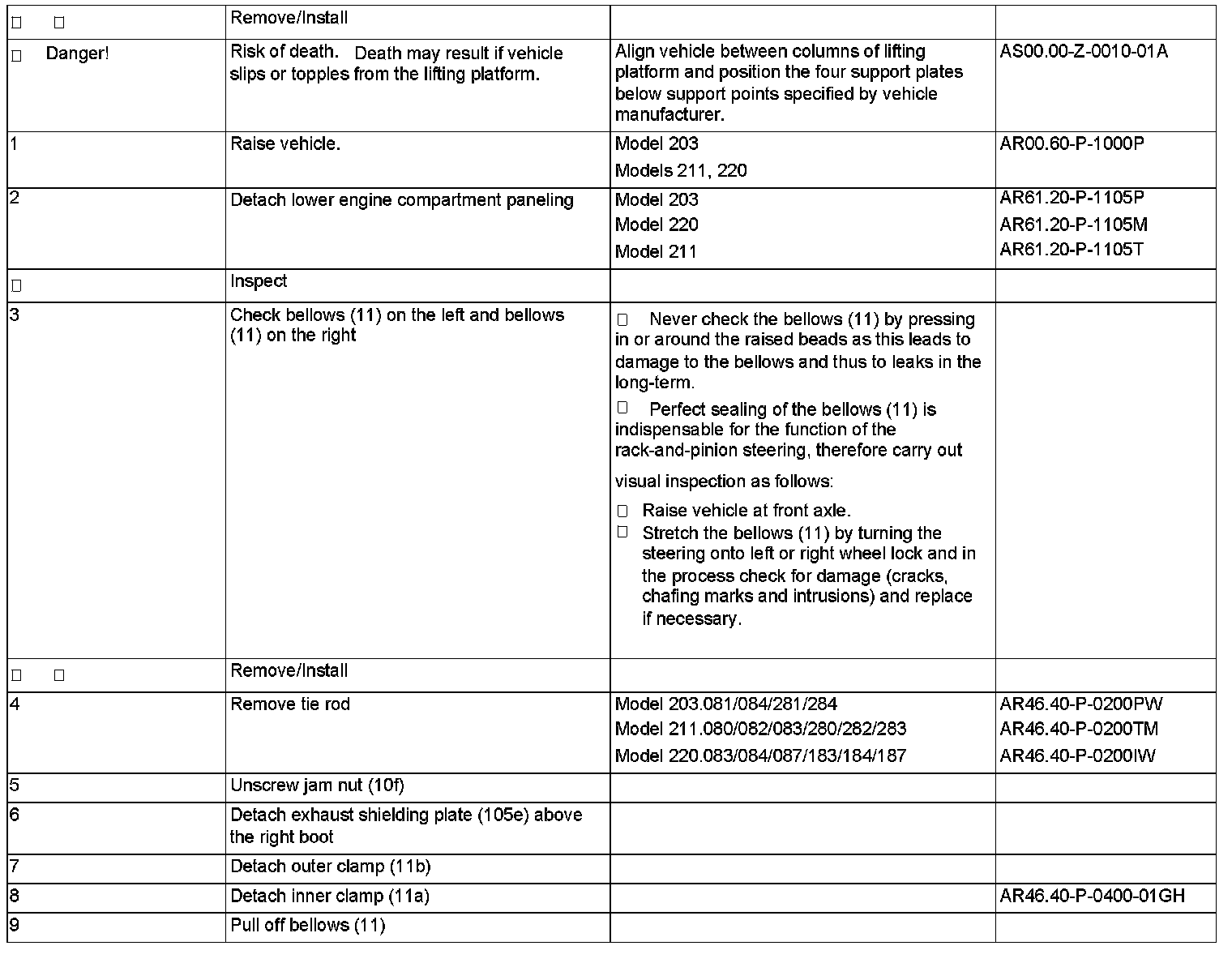

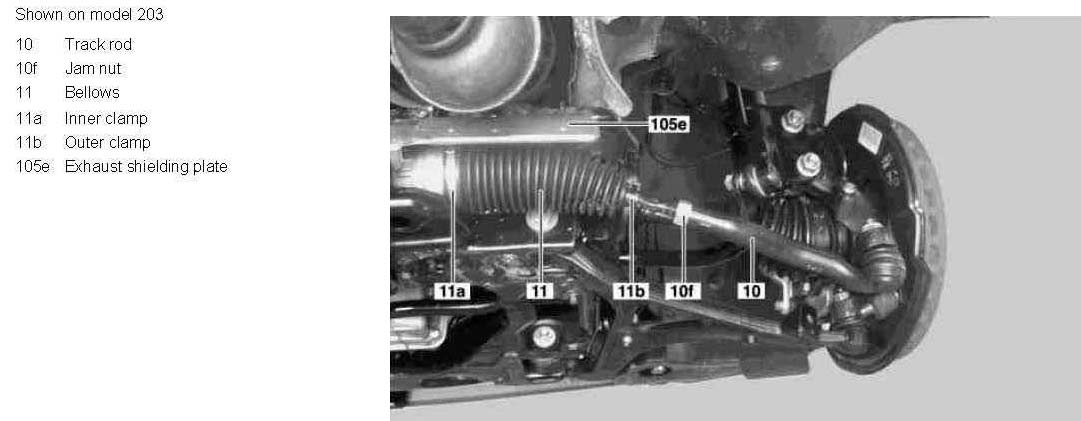

Steps 1-9:

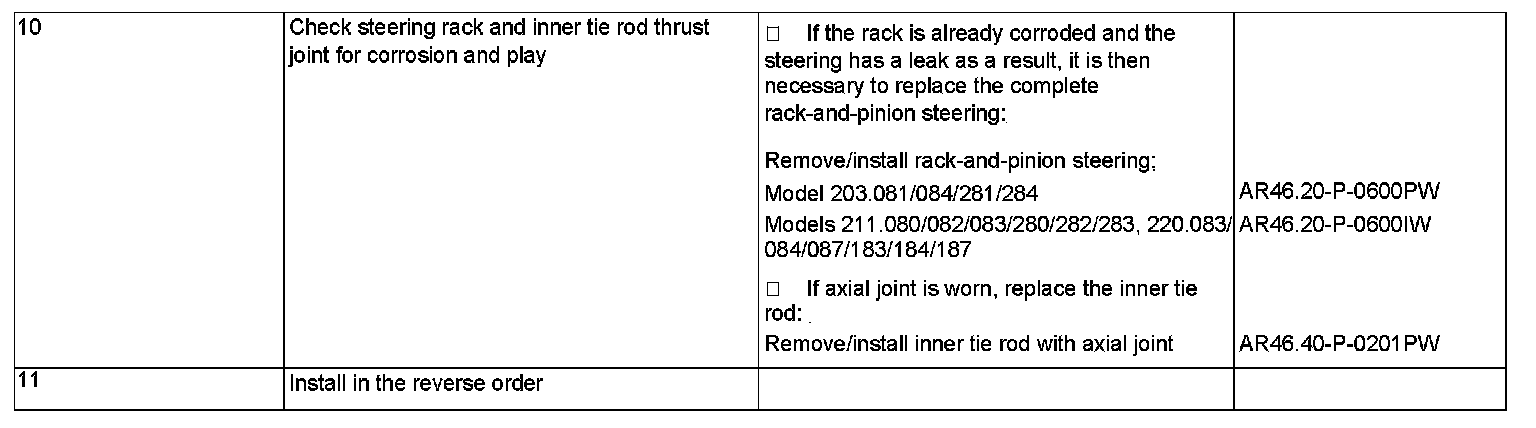

Steps 10-11:
