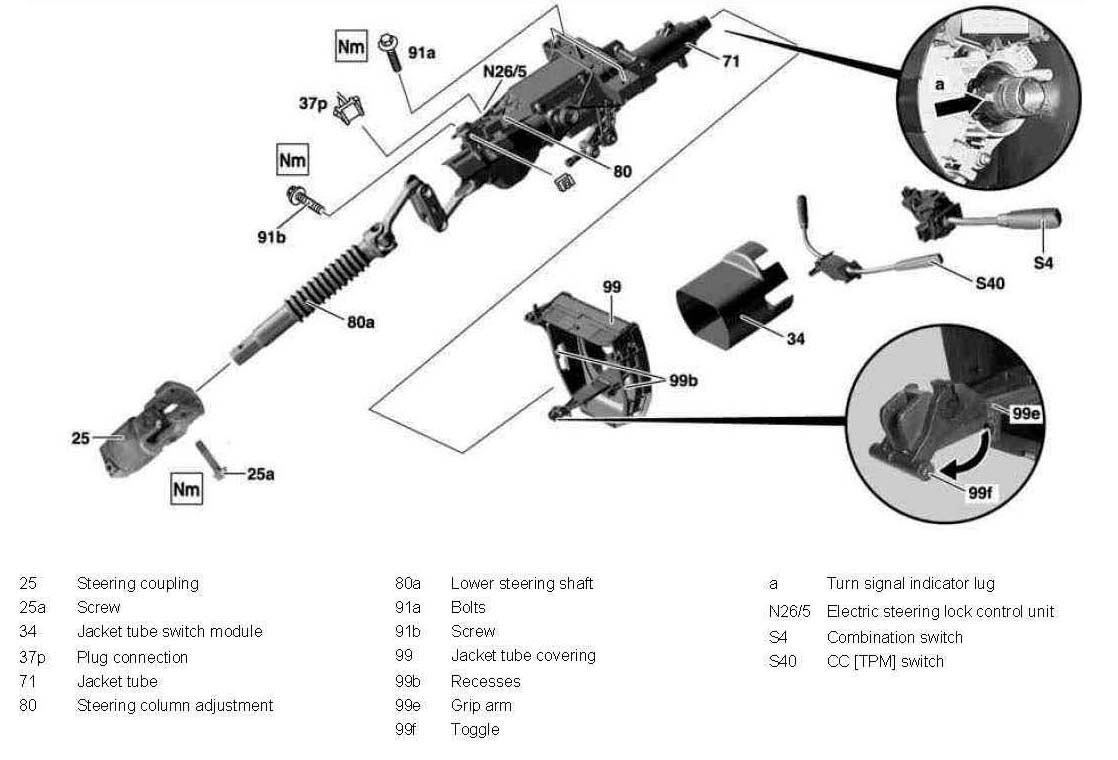

AR46.10-P-0400PA Remove/Install Jacket Tube


AR46.10-P-0400PA Remove/Install jacket tube
- Manually adjustable jacket tube

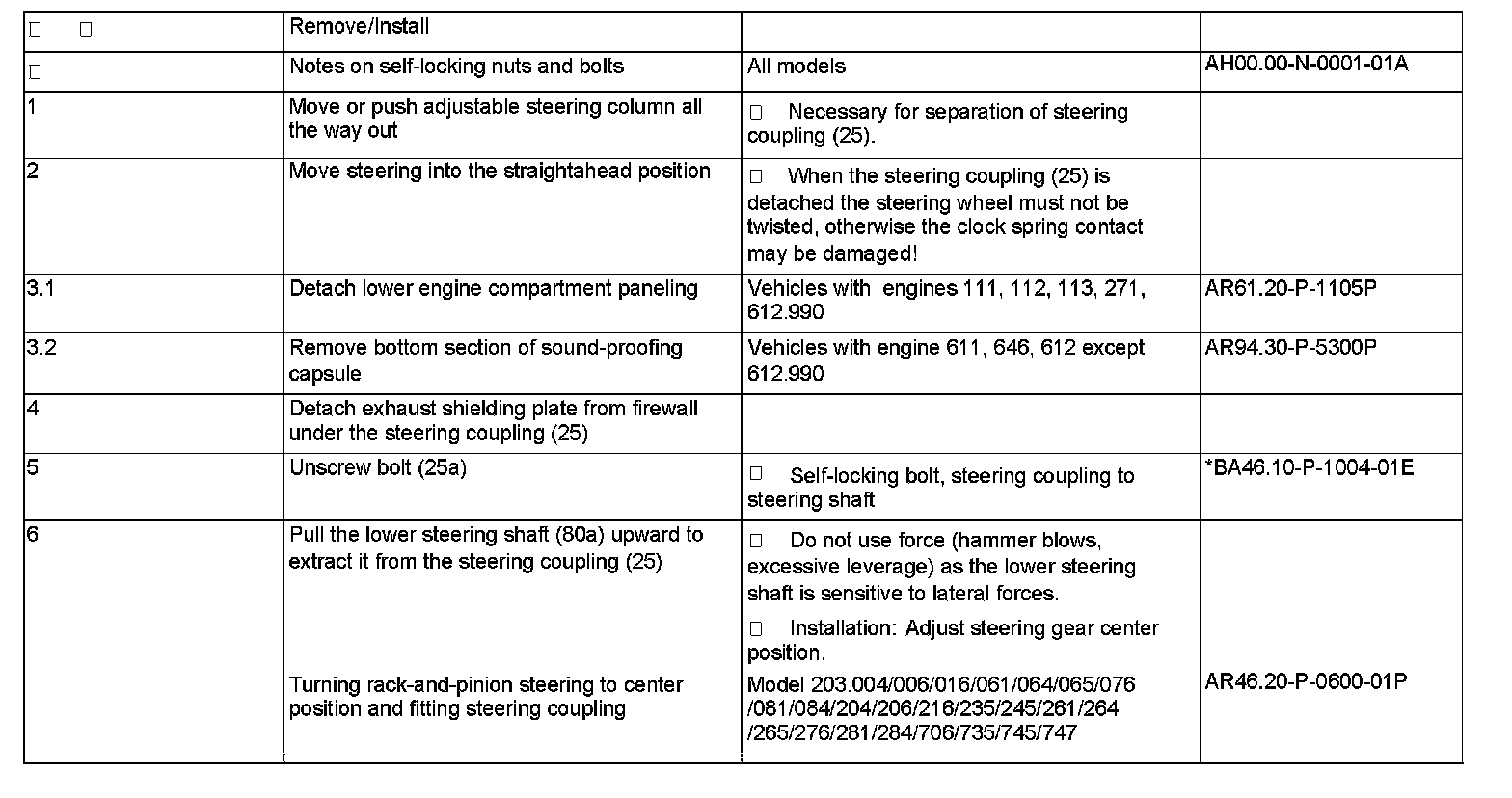

Steps 1-6:

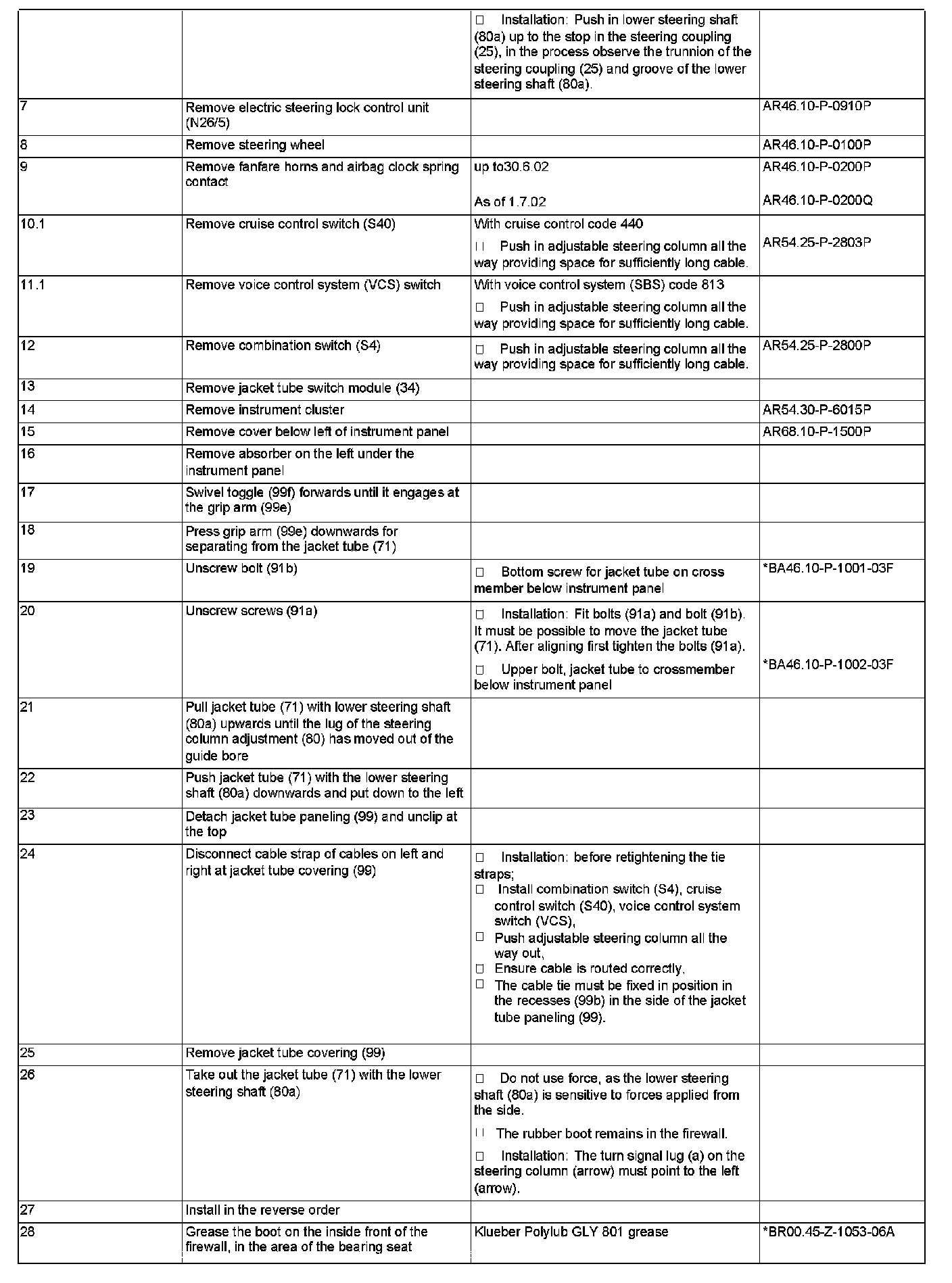

Steps 7-28:

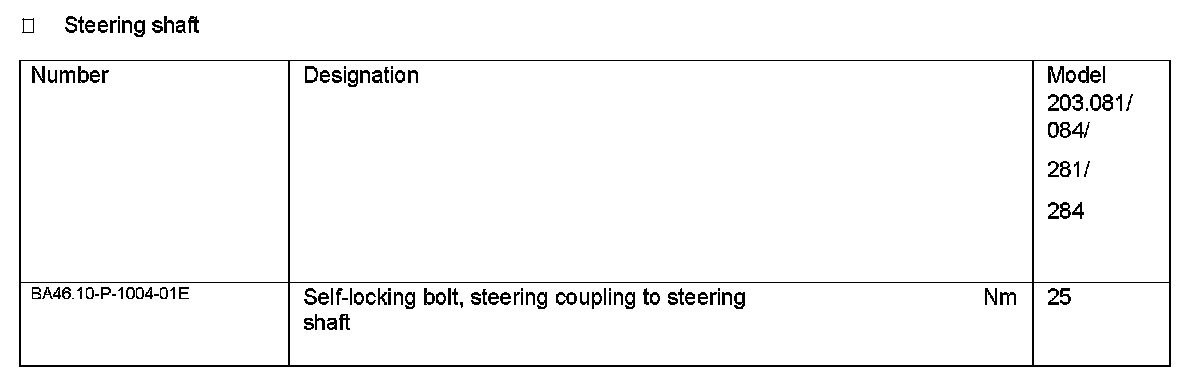

Steering shaft

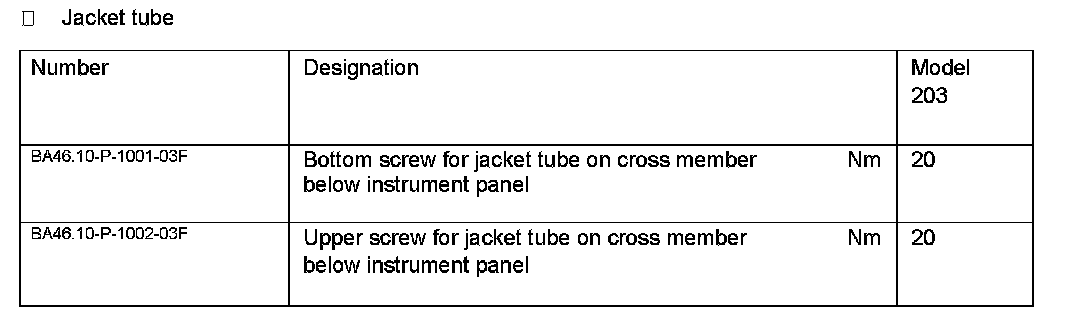

Jacket tube

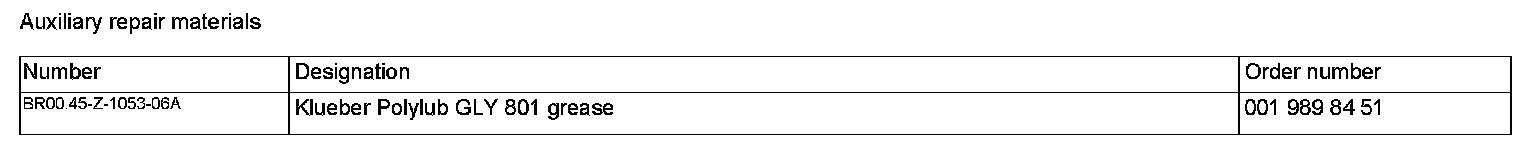

Auxiliary repair materials
