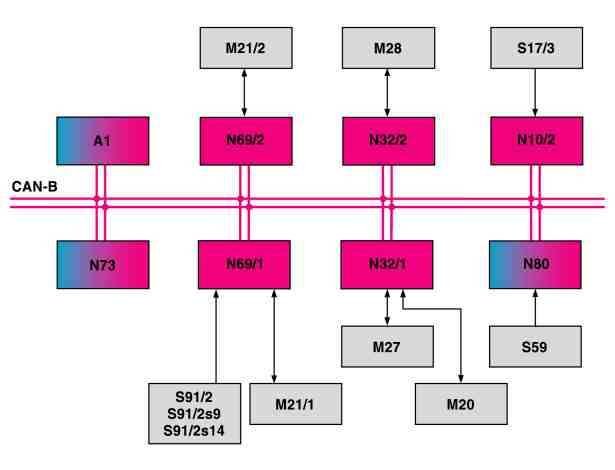

GF46.15-P-0003-01PP Electrically Adjustable Steering Column (ESC) Networking of Components

GF46.15-P-0003-01PP Electrically Adjustable Steering Column (ESC) Networking of Components
- with CODE (275) Electrically adjustable driver seat, steering column and outside mirrors with memory
- with CODE (242) Electrically adjustable front passenger seat with memory






A1 Instrument cluster
M20 Steering column adjustment motor group
M21/1 Left electrically adjustable and heated outside mirror
M21/2 Right electrically adjustable and heated outside mirror
M27 Driver seat adjustment motor group with memory
M28 Front passenger seat adjustment motor group with memory
N10/2 Rear SAM control unit with fuse and relay module
N32/1 Driver-side front seat adjustment control unit with memory
N32/2 Passenger-side front seat adjustment control unit with memory
N69/1 Left front door control unit
N69/2 Door control unit front right
N73 DI control unit
N80 Steering column module
S17/3 Left front door contact switch
S59 Steering column adjustment switch
S91/2 Left front door ESA [ESV] switch group (with memory)
S91/2s9 Memory store button switch
S91/2s14 Memory location 1, 2, 3 switch
CAN-B Controller area network bus, class B (interior compartment) (CAN B)
