GF54.15-P-0800P Fuse And Relay Box, As-Built Configuration




GF54.15-P-0800P Fuse And Relay Box, As-built Configuration
- MODEL 203.0 /2 /7 up to Model Year 8

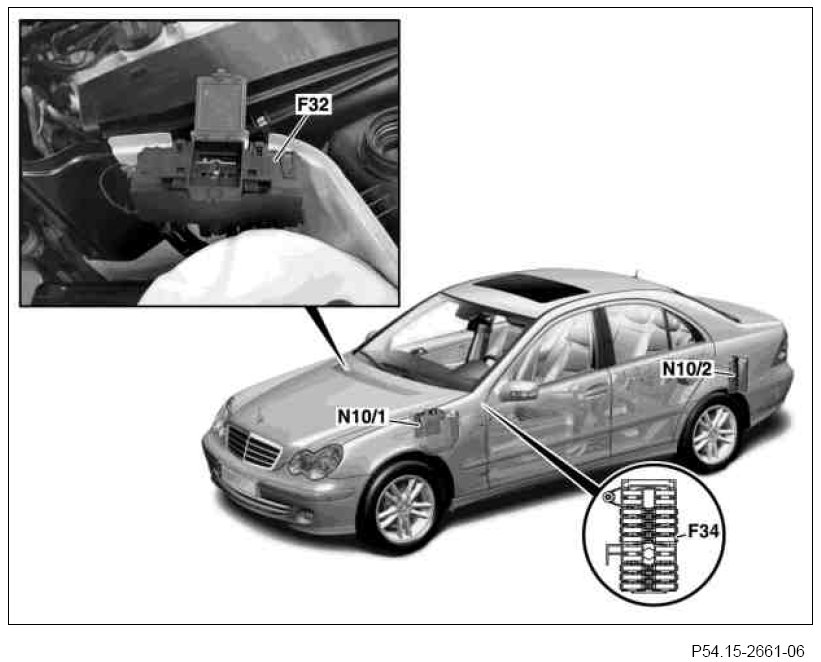

Illustrated on model 203.0






F32 Front prefuse
F34 Interior fuse box
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
