Rain Sensor: Service and Repair

AR82.30-P-7700P Remove/Install Rain Sensor

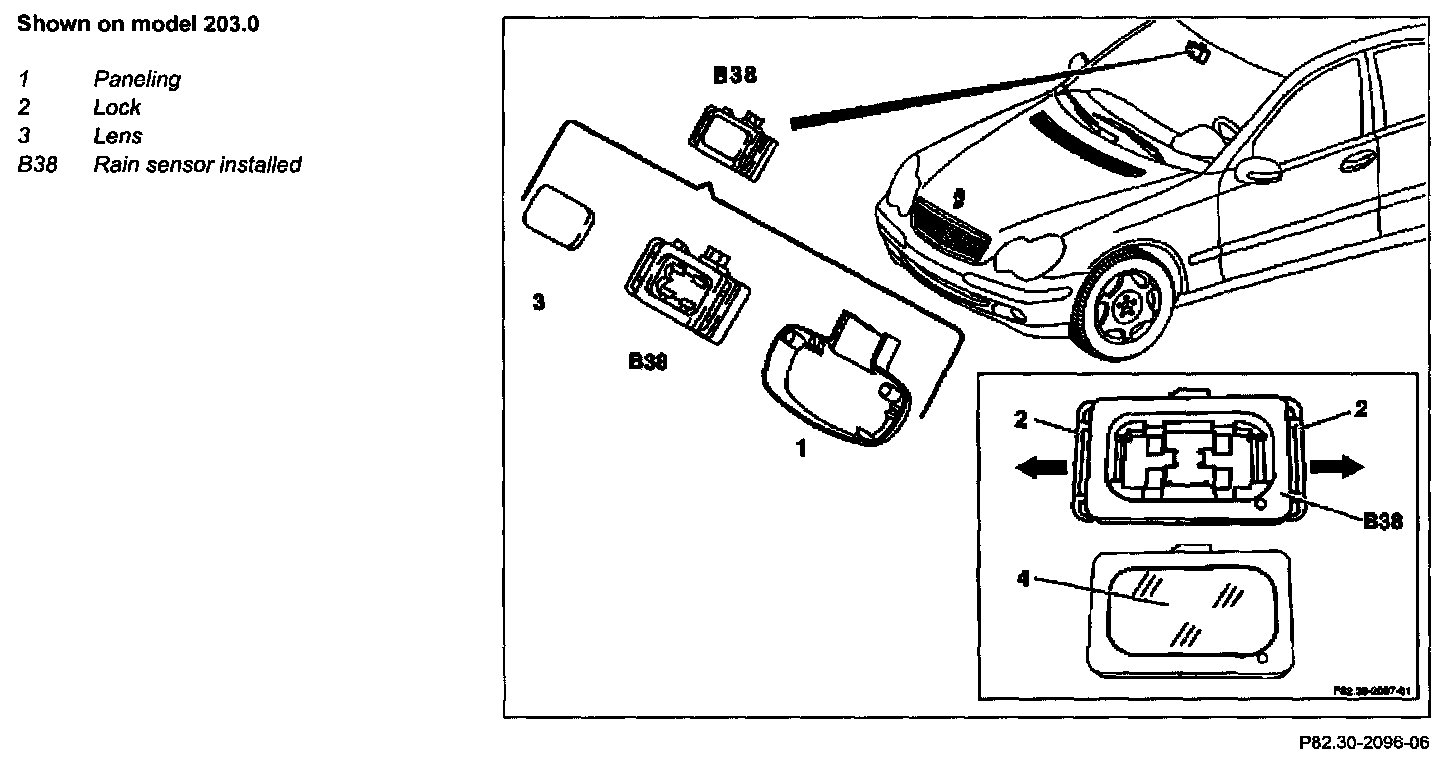

Shown On Model 203:

DANGER:
Injury Hazard Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities.
- Always remove ignition key when working on windshield wiper mechanism.

1 Remove paneling (1)
2 Open locking mechanism (2)

NOTE: Push in direction of arrow.

3 Take off rain sensor (B38)

CAUTION: Lens (3) is stuck to windshield. Do not replace.

4 Detach electric connection
5 Install in the reverse order
6 Carry out operational check
