Clutch Position Sensor: Service and Repair



AR26.19-D-0020A Remove/install position sensor
- TRANSMISSION 716.6
- with CODE (424) Sequentronic automated manual transmission (SEQ)

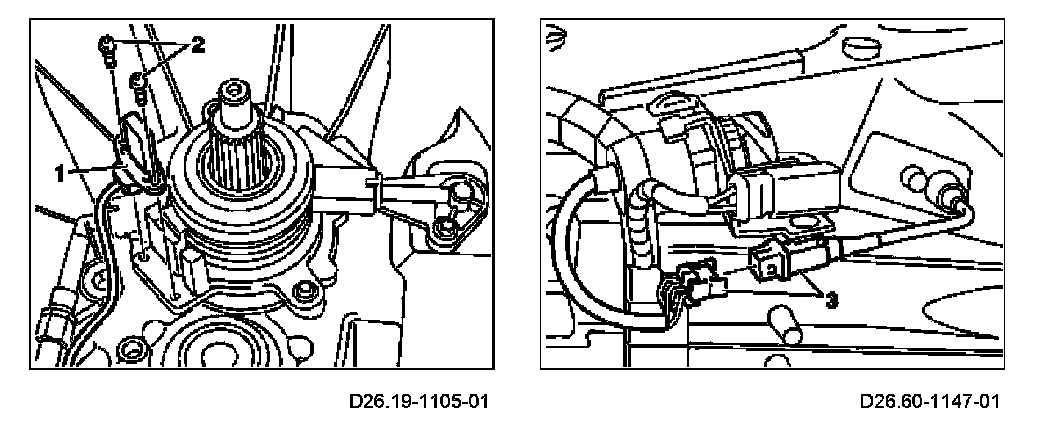

Component Identification:





Shown on van transmission

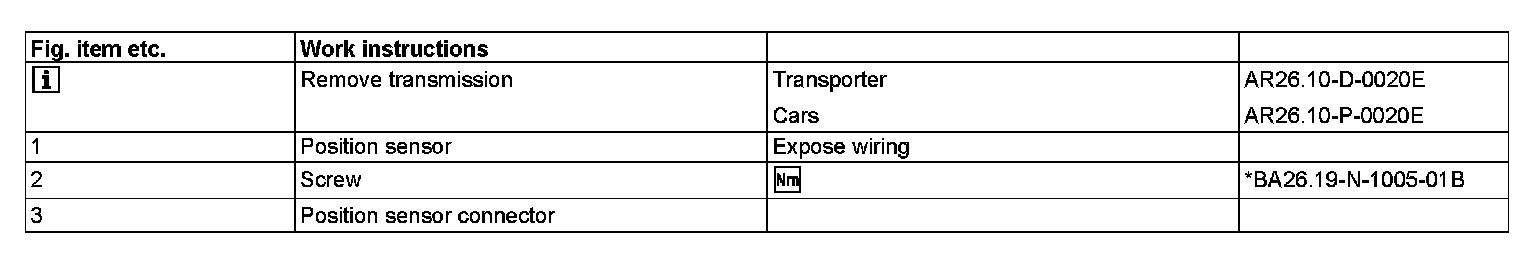

Steps 1-3:

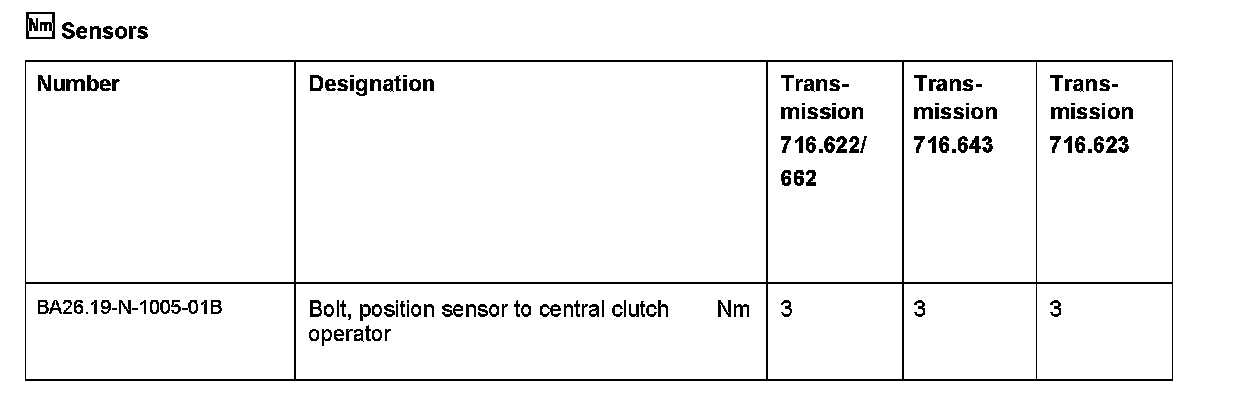

Sensors:
