Refrigerant Temperature Sensor: Description and Operation

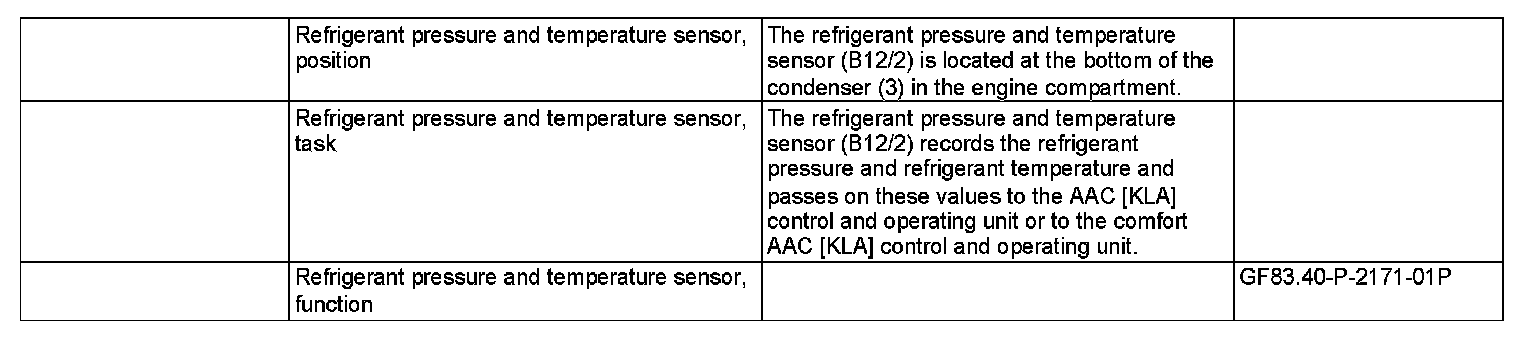

gf83.40-p-2171p Refrigerant Pressure And Temperature Sensor Location/Task/Function

MODEL 203.0 /2 /7
- with CODE (580) Air conditioning (or Tempmatic for USA)
- with CODE (580) Automatic air conditioning
- with CODE (581) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- up to Model Year 8

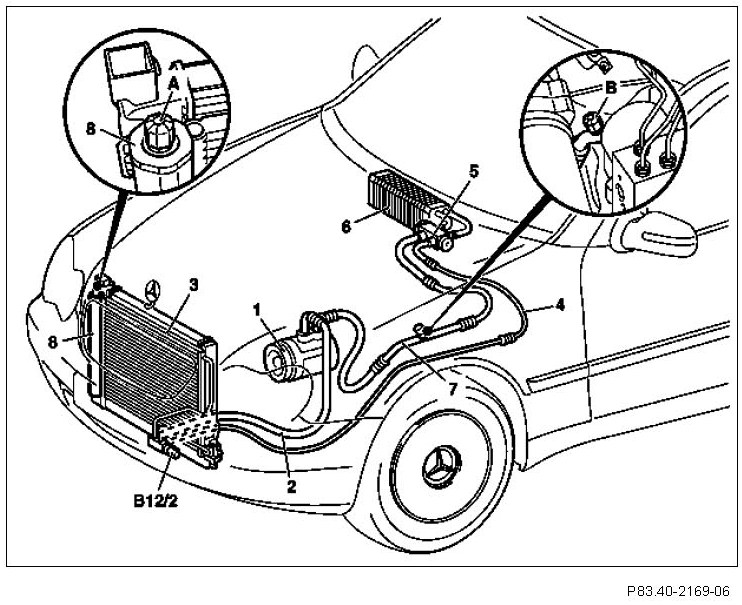

3 Capacitor
B12/2 Refrigerant pressure and temperature sensor
