Humidity Sensor: Description and Operation

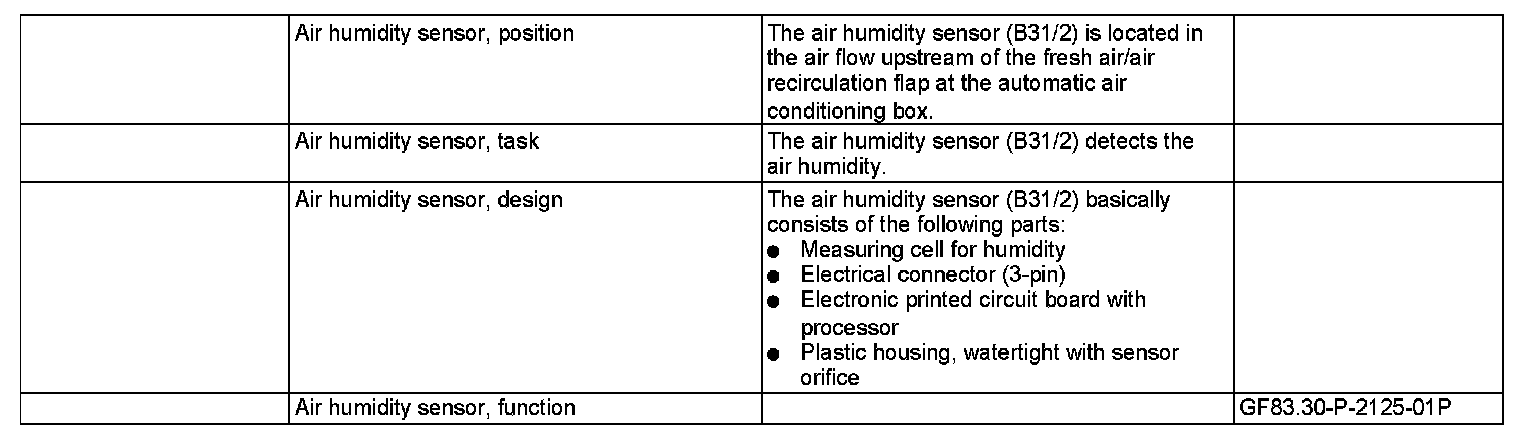

GF83.30-P-2125P Air Humidity Sensor, Location/Task/Design/Function

MODEL 203.0 /2 /7 up to 31.5.01
- with CODE (580) Air conditioning (or Tempmatic for USA)
MODEL 203.0 /2 /7 as of 1.6.01
- with CODE (580) Automatic air conditioning
- up to Model Year 8
MODEL 203.0 /2 /7 as of 24.4.04 up to 28.6.06
- except CODE (581) Comfort automatic air conditioning

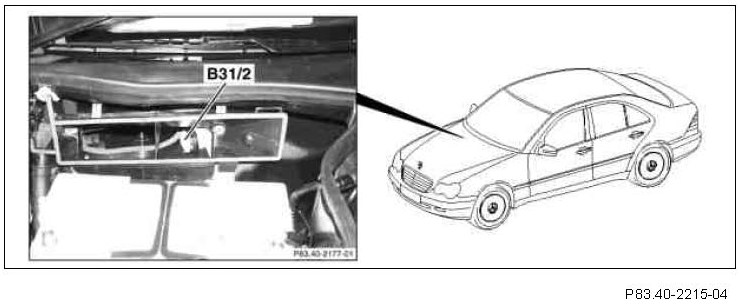

Shown on model 203.0
B31/2 Air humidity sensor
