Seat Belt Buckle Switch
>>
Locations

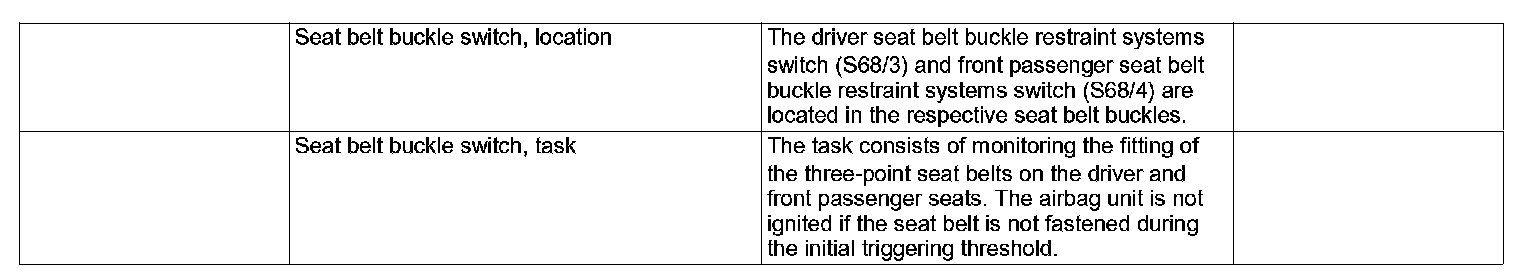

Seat Belt Buckle Switch: Locations

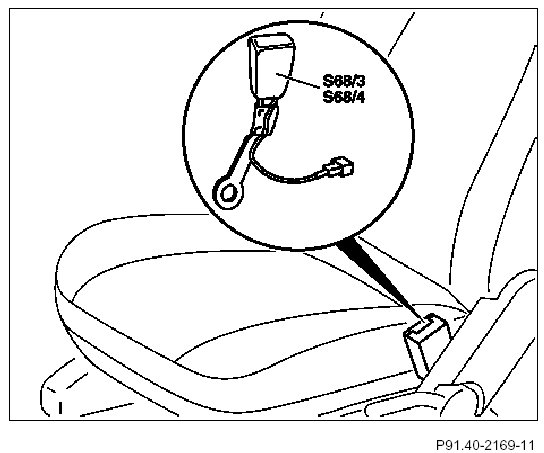

GF91.60-P-4013PP Seat Belt Buckle Switch, Location/task
S68/3
Driver seat belt buckle restraint systems switch
S68/4
Front passenger seat belt buckle restraint systems switch
