Head Restraint Impact Sensor: Locations

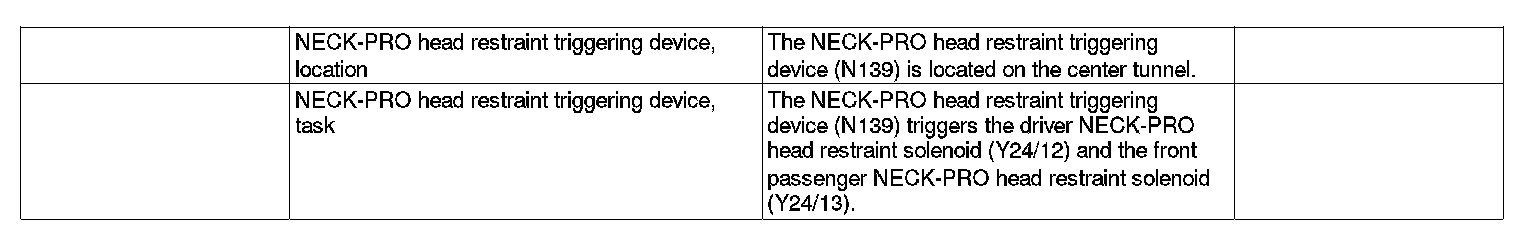

GF91.16-P-2004PM NECK-PRO Head Restraint Triggering Device, Location/task

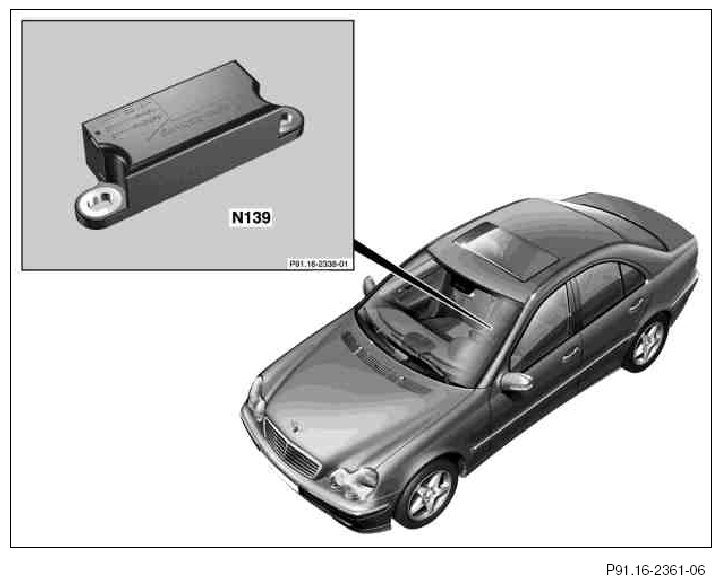

Illustrated on Model 203.0

N139 NECK-PRO head restraint triggering device
