GF91.60-P-2005PMA Side Impact Protection System Function

GF91.60-P-2005PMA Side Impact Protection System Function


- with CODE (494) USA version
- up to Model Year 8

Sidebag triggering procedure, shown on model 210.0







a 5 ms
b 7 ms
c 12 ms
d 20 ms
e 80 ms
t Time in ms
N2/7 Restraint systems control unit

The specified times are merely intended to illustrate the short duration of the sidebag inflation and deflation procedure.

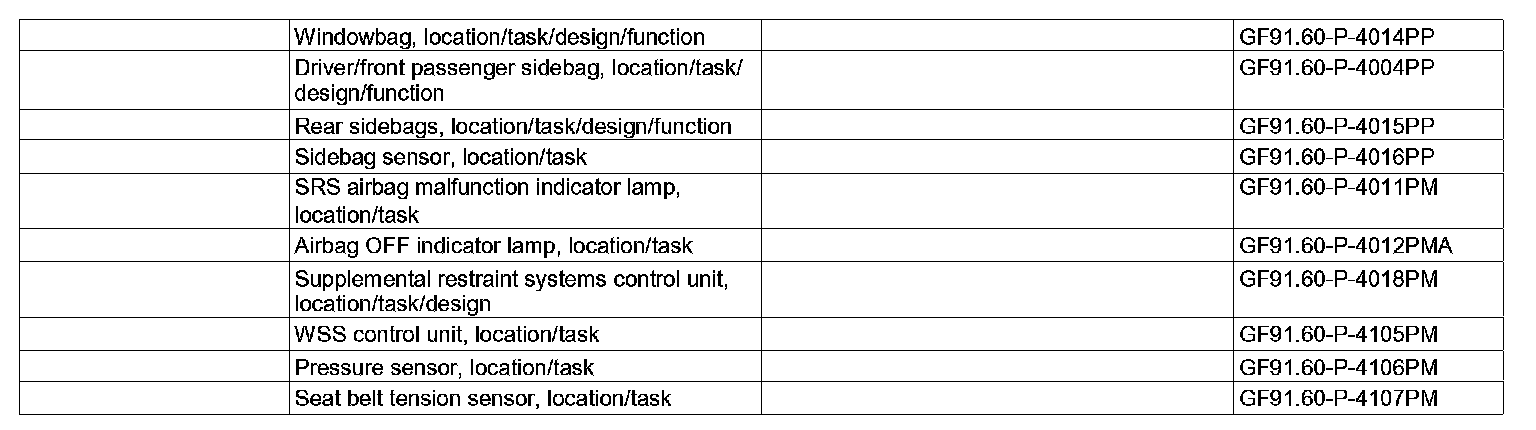

Side impact collision
If a side-on collision is detected by the left sidebag and windowbag sensor (A53/1) or the right sidebag and windowbag sensor (A54/1), the body lateral acceleration data are transmitted to the restraint systems control unit (N2/7). The restraint systems control unit (N2/7) checks the plausibility of the data. If the data is plausible the following squibs are ignited if a side-on impact occurs at the left-hand side of the vehicle:
- Left front sidebag squib (R12/20)
- Left rear sidebag squib (R12/11)
- Left rear windowbag squib (R12/22)

If a side-on impact occurs at the right-hand side of the vehicle:
- Right front sidebag squib (R12/21)
- Right rear sidebag squib (R12/12)
- Right rear windowbag squib (R12/23)

The WSS control unit (Weight Sensing System) (N2/13) senses the occupancy status of the front passenger seat with the aid of the pressure sensor (B48/4). In order to detect a child seat the seat belt tension sensor (B48/3) is read in by the WSS (Weight Sensing System) control unit (N2/13) and the relevant message is transmitted to the restraint systems control unit (N2/7) via the Controller Area Network Bus Class B (interior) (CAN-B). If the front passenger seat is unoccupied or a child seat has been fitted, the right front sidebag squib (R12/21) is not triggered.

If the seat occupied recognition is malfunctioning, the right front sidebag squib (R12/21) is triggered for safety reasons.
