Headlamp Igniter Module: Description and Operation

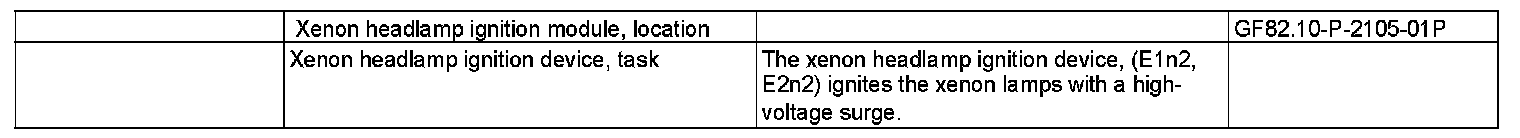

GF82.10-P-2105P Xenon Headlamp Ignition Module, Location/Task

MODEL 203 as of 1.7.02 up to Model Year 8

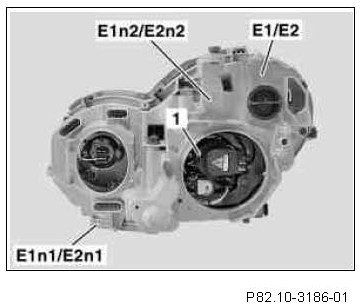

Xenon headlamp presentation
1 Xenon lamps
E1 Left front headlamp unit
E1n1 Xenon headlamp control module
E1n2 Xenon headlamp ignition module
