Home >> Mercedes Benz >> 2007 >> C 280 4MATIC (203.092) V6-3.0L (272.941) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Description and Operation >> GF42.31-P-4500A BAS Control Unit, Location/Task/Function

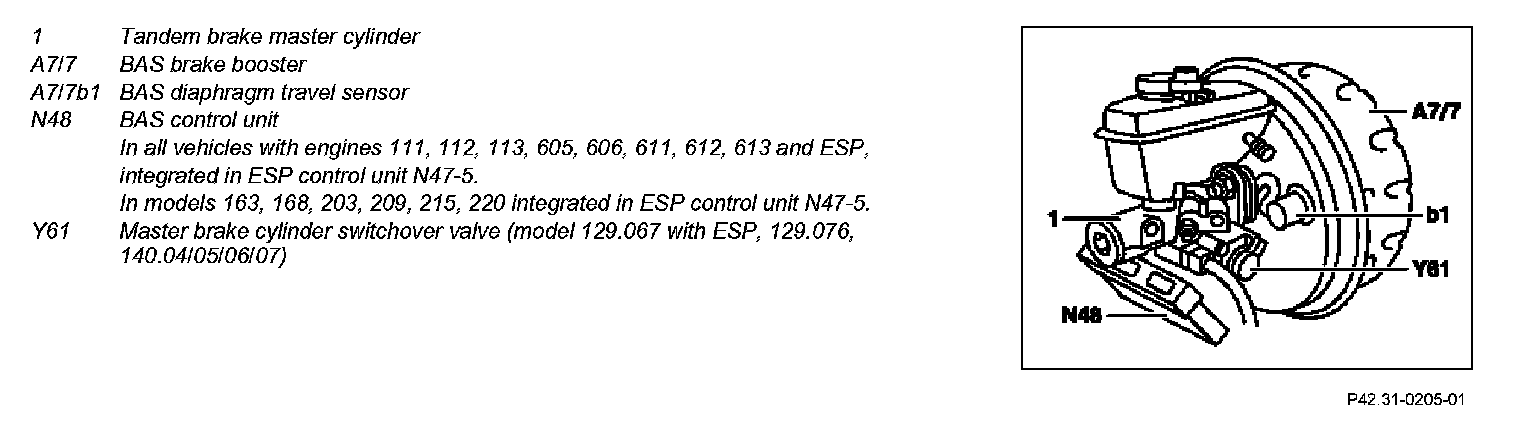

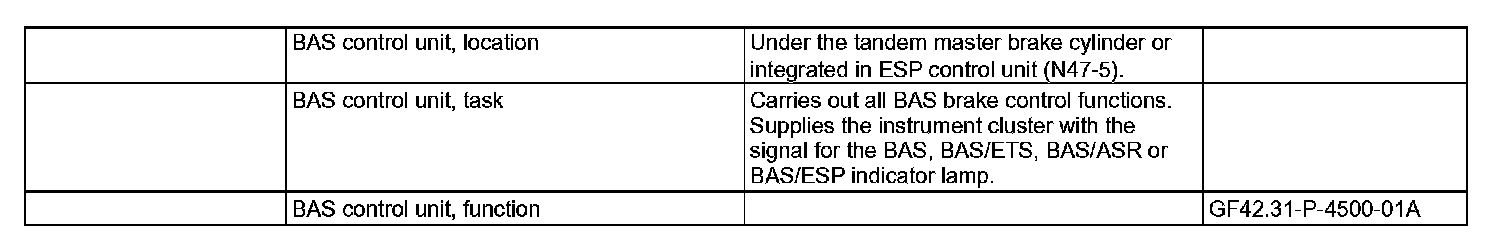

GF42.31-P-4500A BAS Control Unit, Location/Task/Function



GF42.31-P-4500A BAS control unit, location/task/function
