GF82.85-P-3017PMU Data Transmission For Starguide, Function

GF82.85-P-3017PMU Data Transmission For Starguide, Function

MODEL 203.0 /2 /7 as of 24.4.04
- with CODE (528) HIGH Class USA up to Model Year 8
MODEL 203.0 /2 /7 as of 24.4.04
- with CODE (530) COMAND APS USA (with navigation system)
- up to Model Year 8

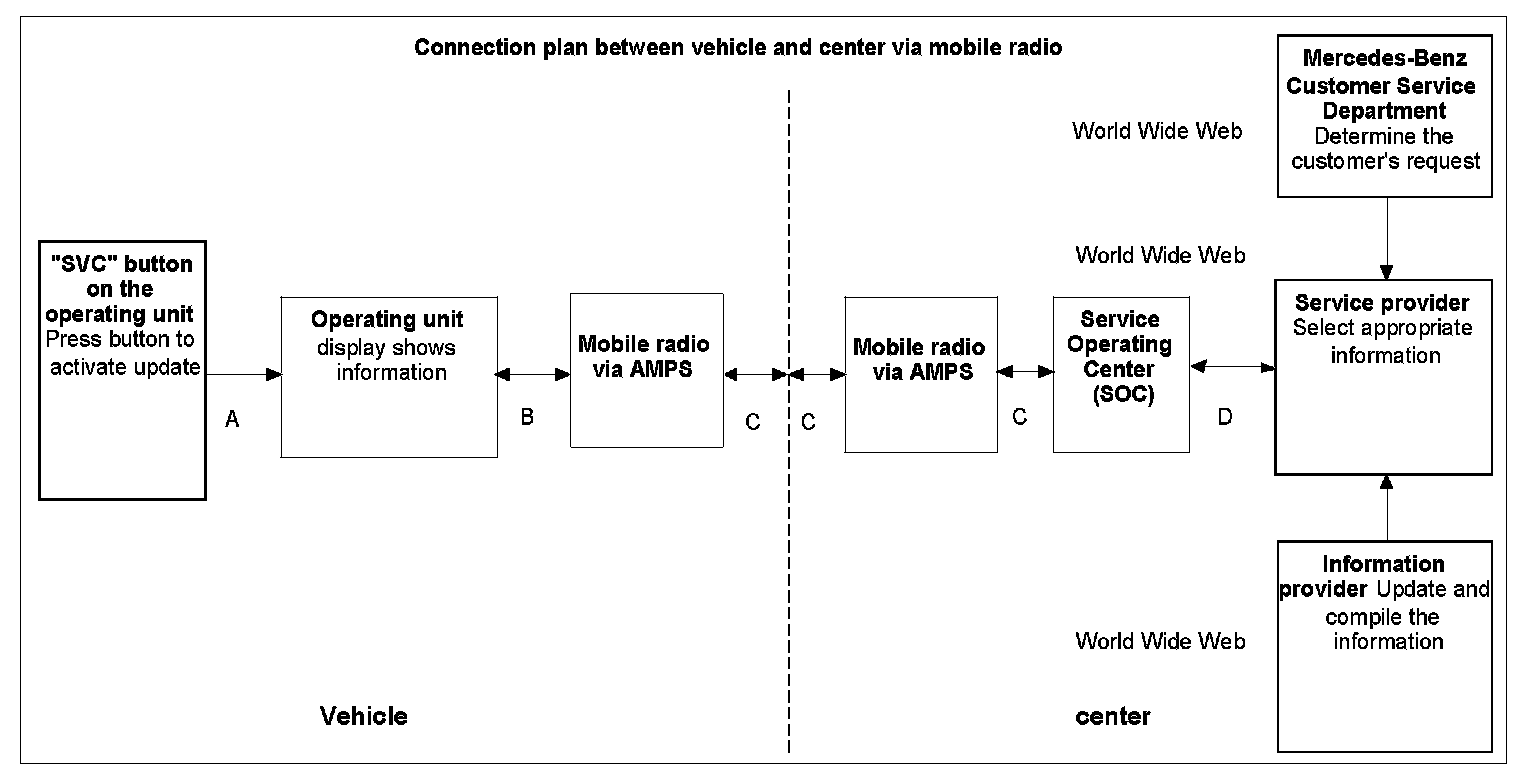

Transmission routes shown
A Internally in the COMAND operating, display and control unit (A40/3)
B Media Oriented System Transport (MOST)
C Section of cellular mobile phone network
D Internet

System concept for the information service
The user determines his own interest profile for service information (such as world news, stock exchange information, etc.) and transmits this information request to the Mercedes-Benz customer service department. This profile is sent to the service center (Service Operating Center (SOC)).
By pressing the "SVC" button (on the COMAND operating, display and control unit (A40/3)), the customer can transmit a request for updated service information to the service center (Service Operating Center (SOC)).

At the service center (Service Operating Center (SOC)) the customer profile is used as a set of criteria for selecting information. The requested information is put together by the information provider and sent to the vehicle via the service center (Service Operation Center (SOC)). The data transmitted appear on the display of the COMAND operating, display and control unit (A40/3).
