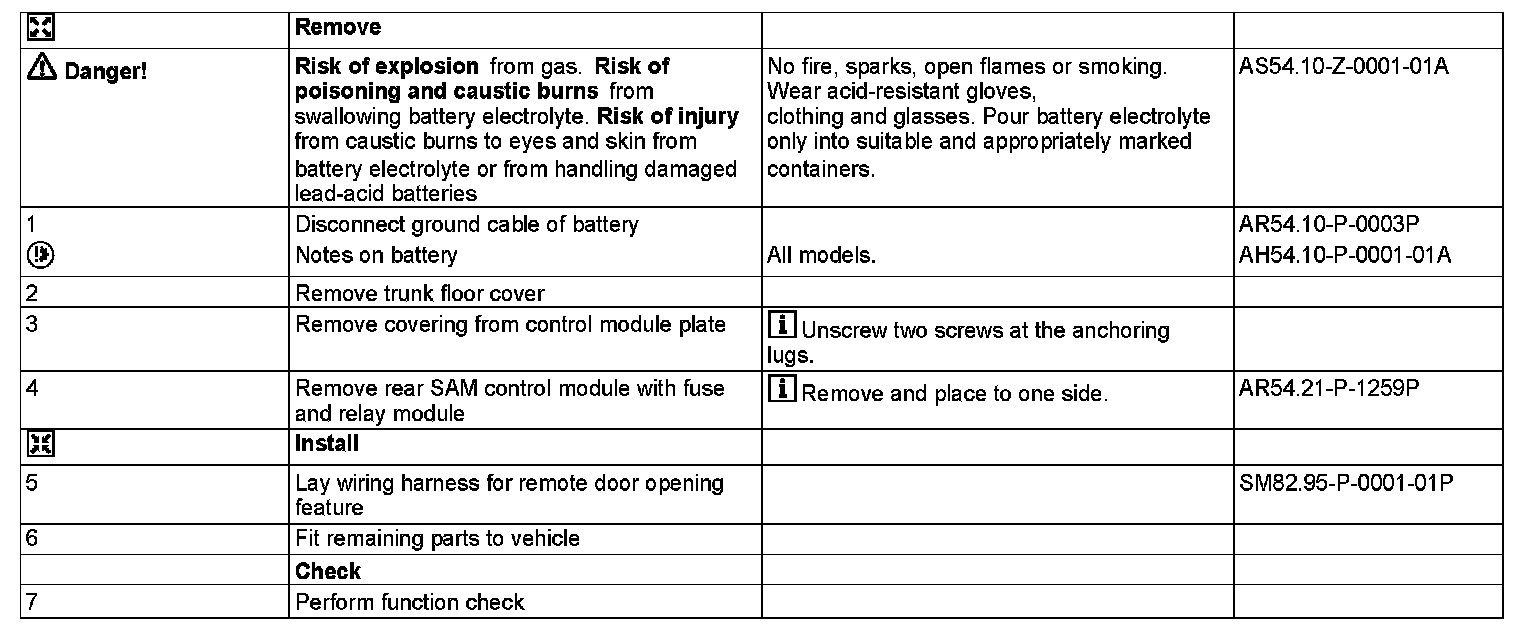

SM82.95-P-0001P Install Wiring Harness For Remote Door Opening Feature

SM82.95-P-0001P Install Wiring Harness For Remote Door Opening Feature

MODEL 203.0
- with CODE (494a) USA version

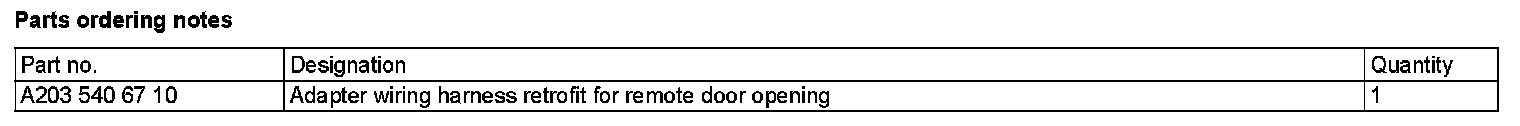

1 Adapter wiring harness
21 28-pin coupling of plug position 21
A35/8 E-call control module
N10/2 Rear SAM control module with fuse and relay module
bl Blue wire from adapter wiring harness
