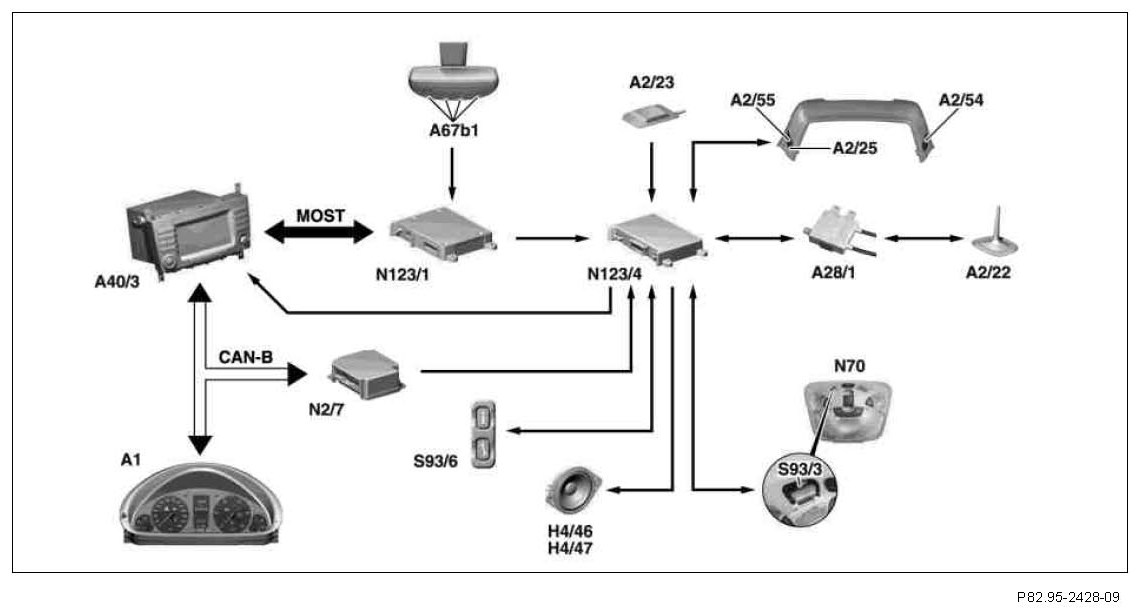

GF82.95-P-0001-02PM TELE AID Block Diagram

GF82.95-P-0001-02PM TELE AID Block Diagram
MODEL 203.0 /2 /7
- with CODE (359) TELE AID emergency call system
- up to Model Year 8






CAN-B Controller Area Network bus class B (interior)
MOST Media Oriented System Transport
A1 Instrument cluster
A2/22 Telephone antenna
A2/23 GPS antenna
A2/25 Emergency call system antenna splitter
A2/54 Emergency call system left backup antenna
A2/55 Emergency call system right backup antenna
A28/1 Antenna splitter
A40/3 COMAND operating, display and control unit
A67b1 Hands-free system microphone group
H4/46 Left front emergency call speaker
H4/47 Right front emergency call speaker
N2/7 Restraint systems control unit
N70 Overhead control panel control unit
N123/1 UPCI control unit (Universal Portable CTEL Interface)
N123/4 Emergency call system control unit
S93/3 SOS pushbutton switch
S93/6 MB-Info and breakdown assistance button group
