AR01.00-P-1200QB Testing Compression Pressure
AR01.00-P-1200QB Testing Compression Pressure
AR01.00-P-1200QB Testing compression pressure

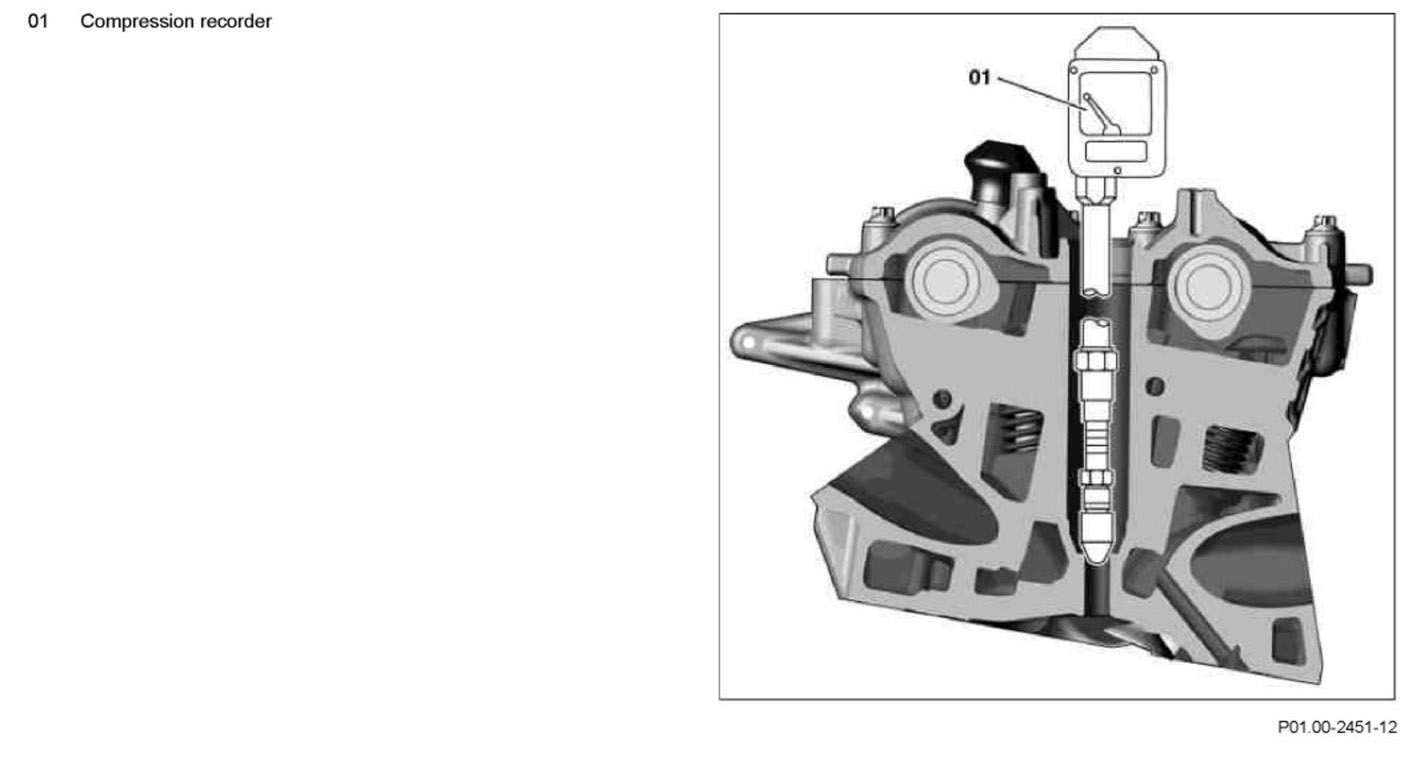

Component Identification:

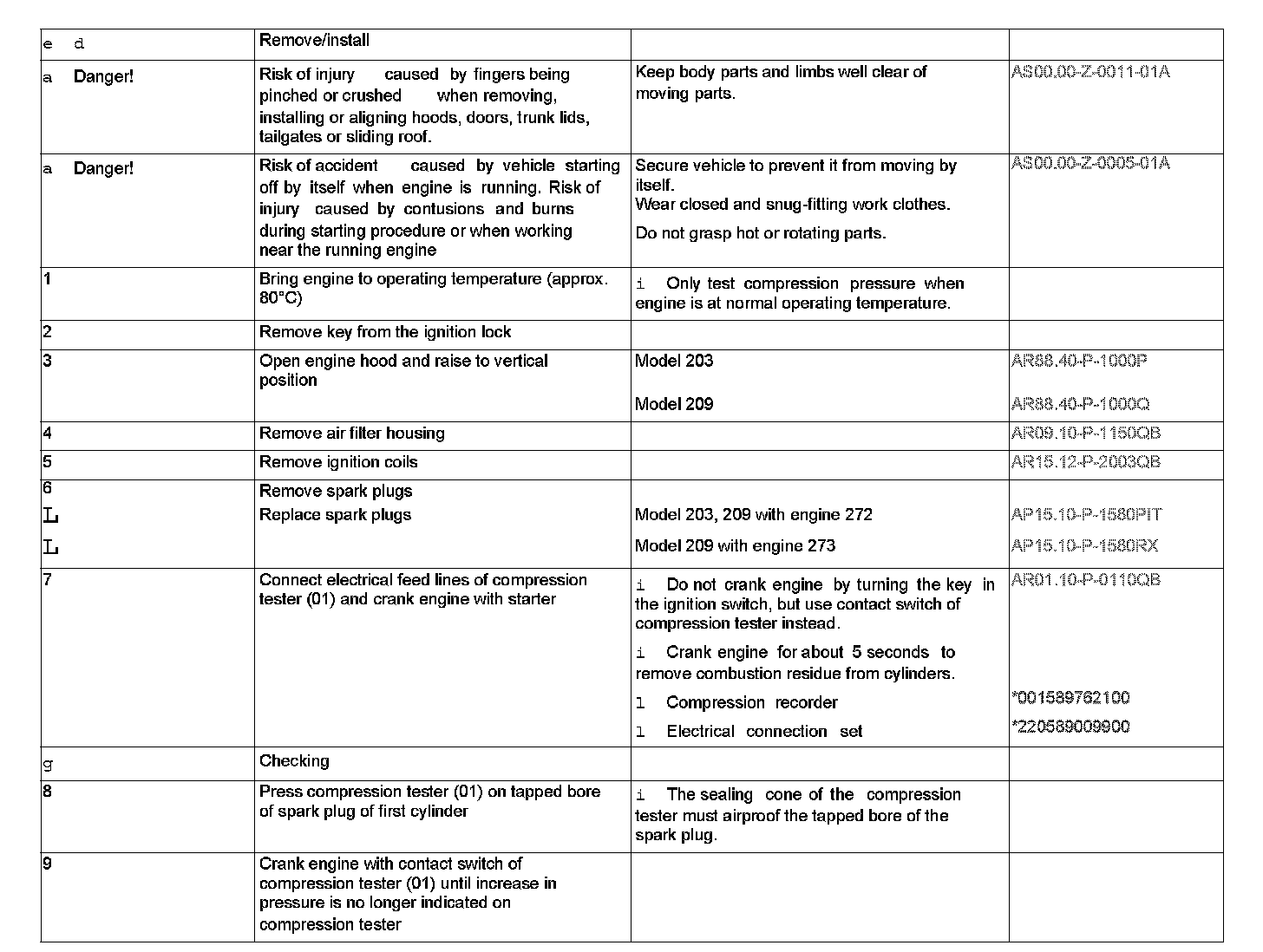

Steps 1 - 9:

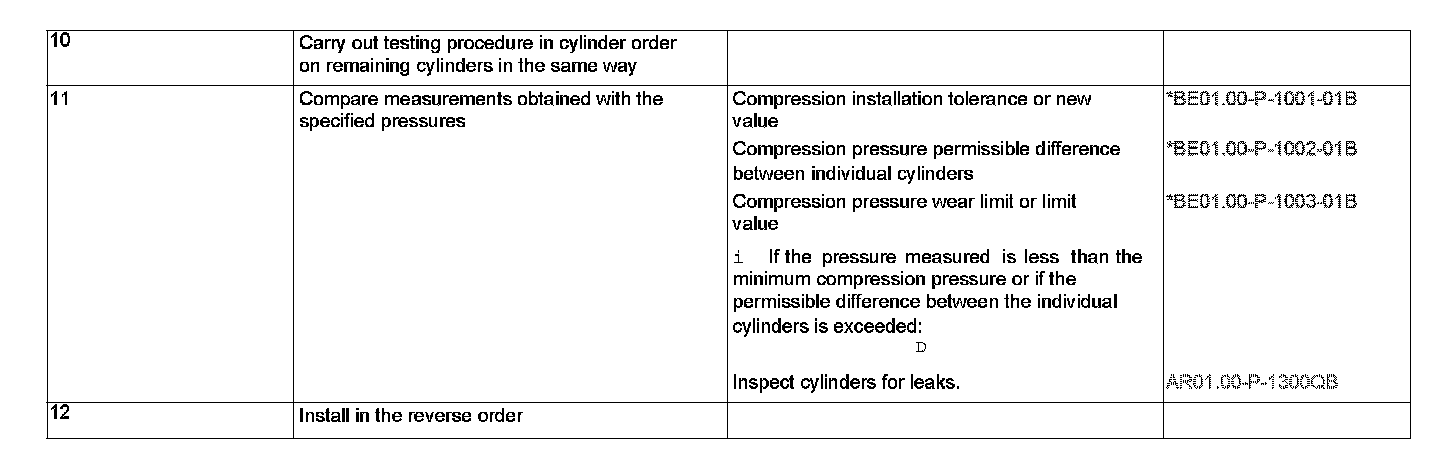

Steps 10 - 12:

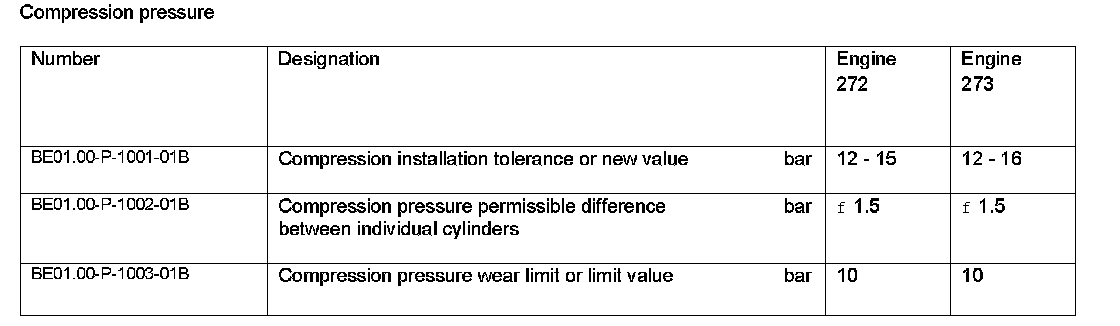

Compression pressure:

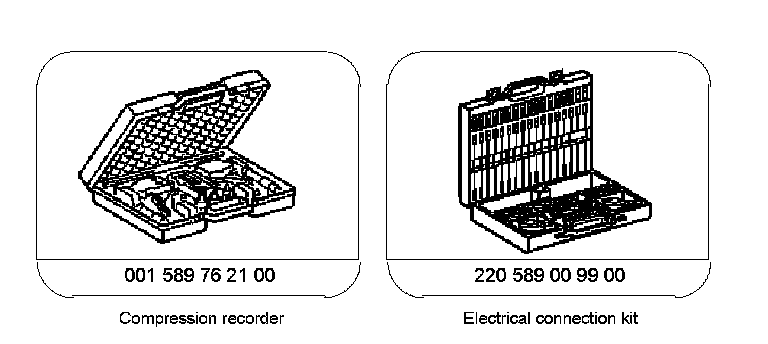

Special Tools:
